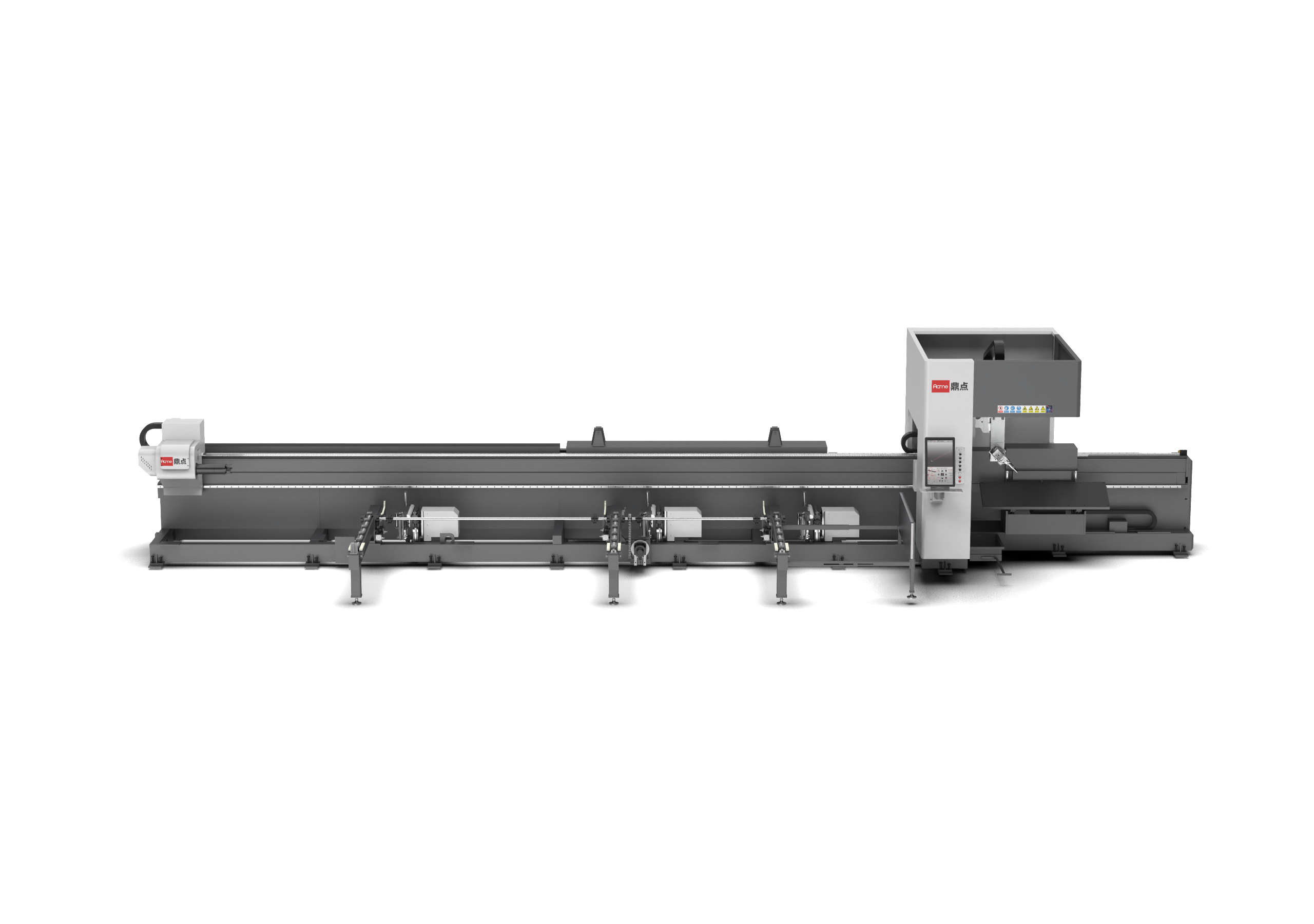

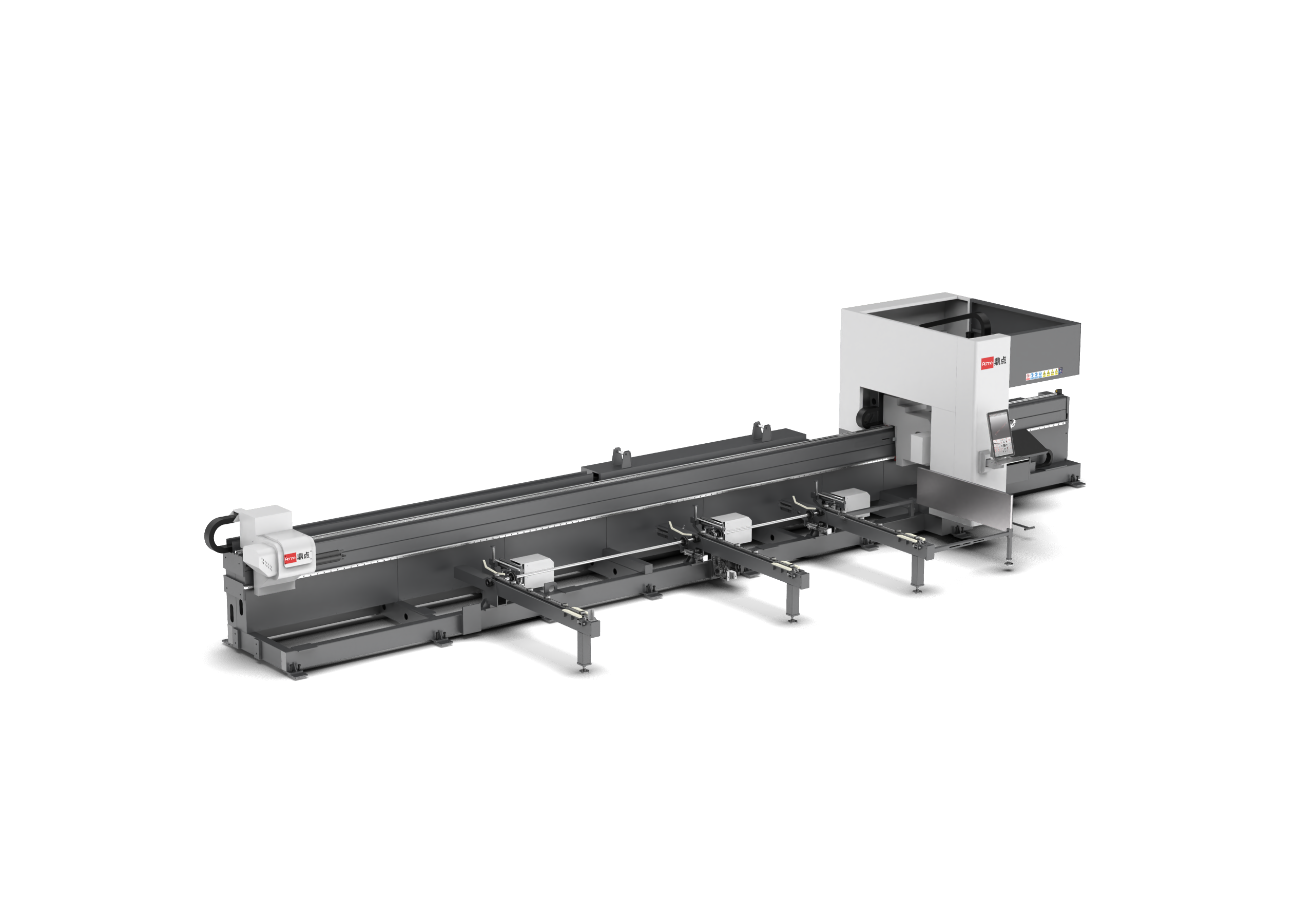

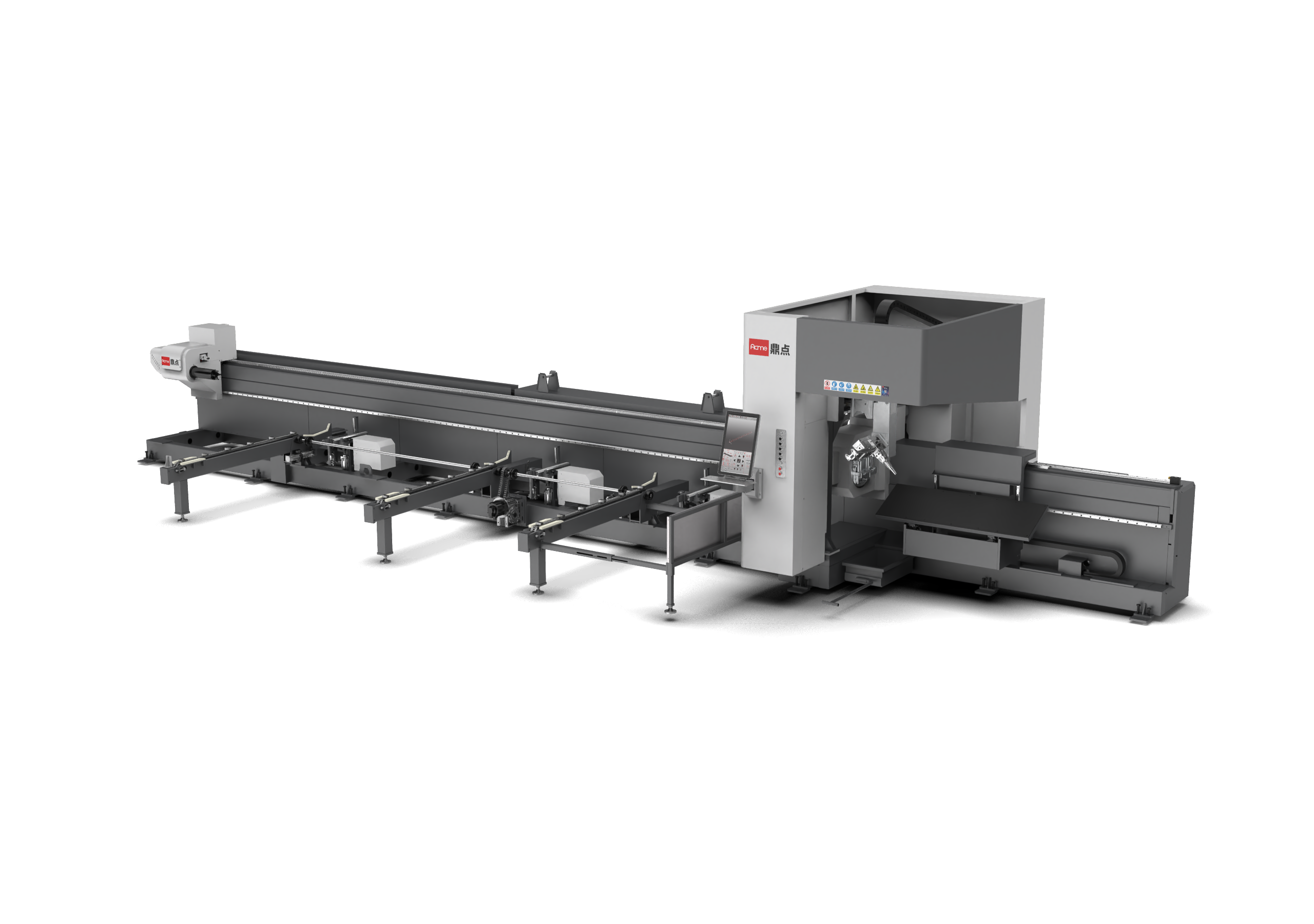

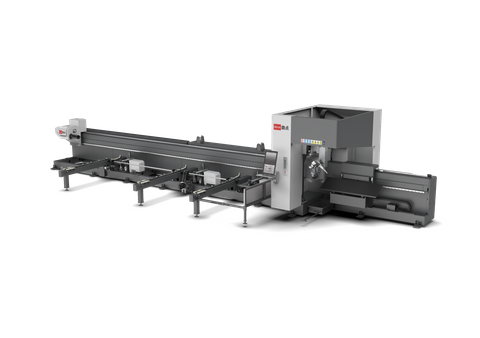

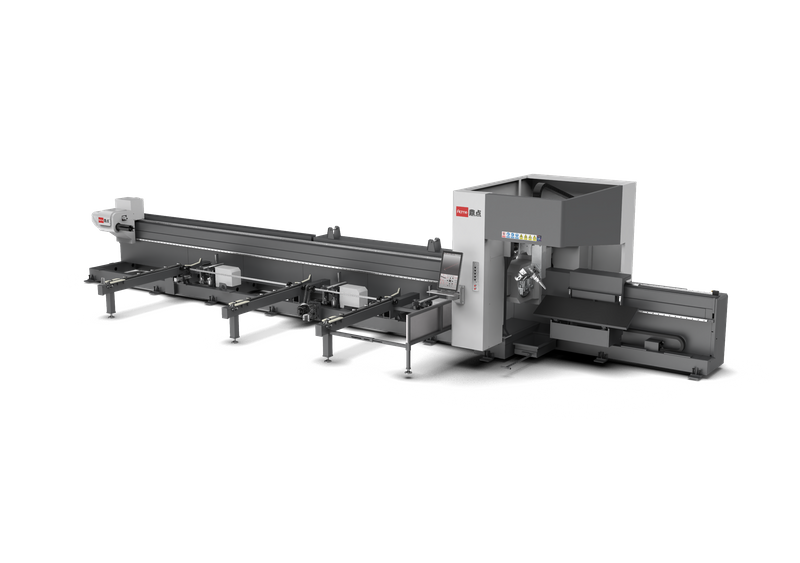

LT-6012VFA High Speed Two Chuck Laser Tube Cutting Machine
· 200rpm/min High Speed
· Small Tail Material, Minimum Size Up To 35mm
| Quantity: | |
|---|---|
-
LT-6012VFA
-
ACME
LT-6012VFA High Speed Two Chuck Laser Tube Cutting Machine
Machine Work Video
Machine configuration
| Model | LT-6012VFA |

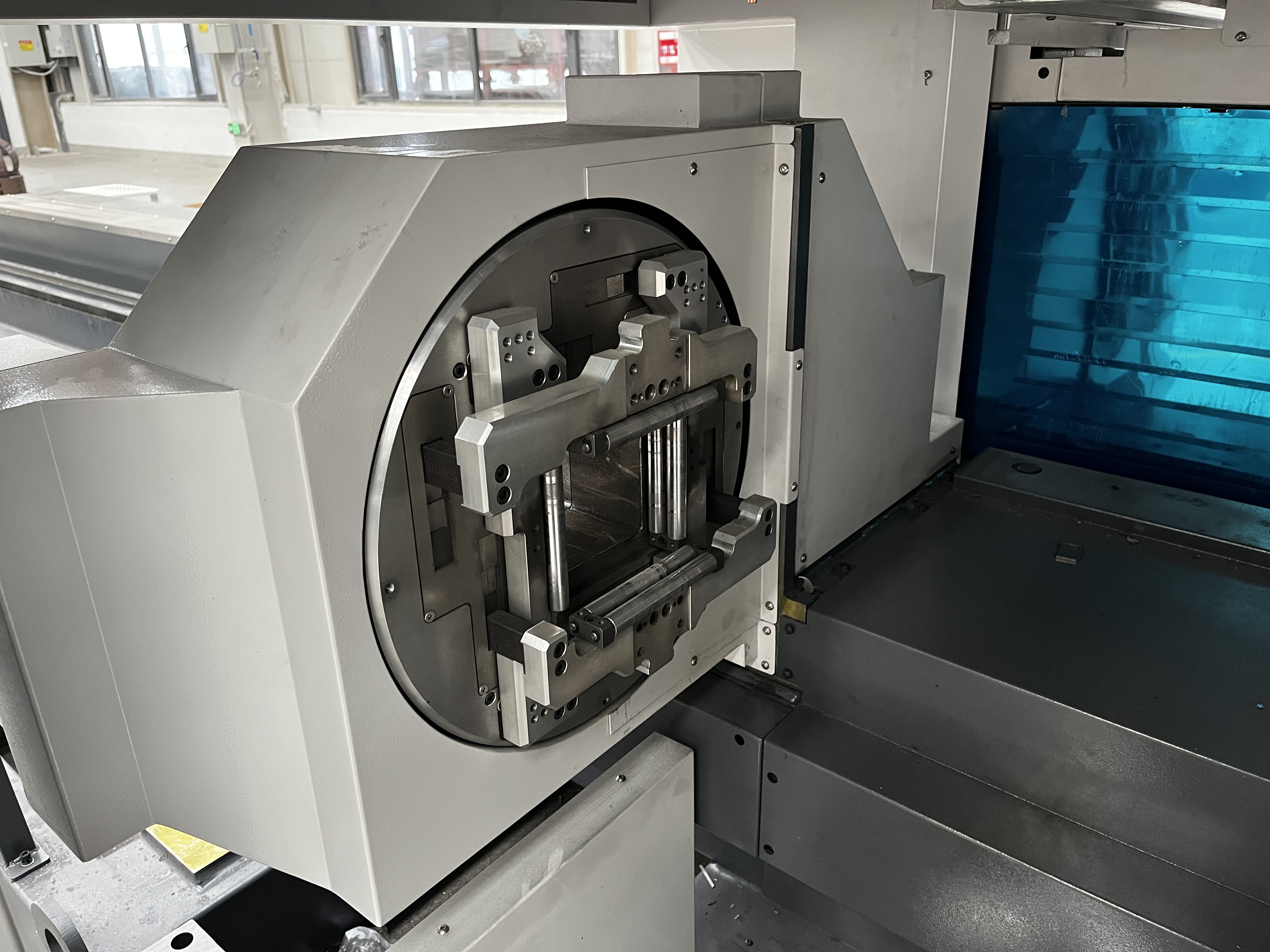

| Chuck Info | 120mm Square chuck with 8-cylinders |
| Chuck Diameter | 10x10mm to 120x120mm |
| Chuck Speed | 200rpm/min |
| Max. Cutting Length | 6 meter |
| Output Length | 2 meter |
| Laser Power Option | 1.5kW/ 3kW/ 6kW |
| Laser Source | MAX/ Raycus/ IPG |
| Servo Motor & Driver | YASKAWA/ INOVANCE/ Panasonic |

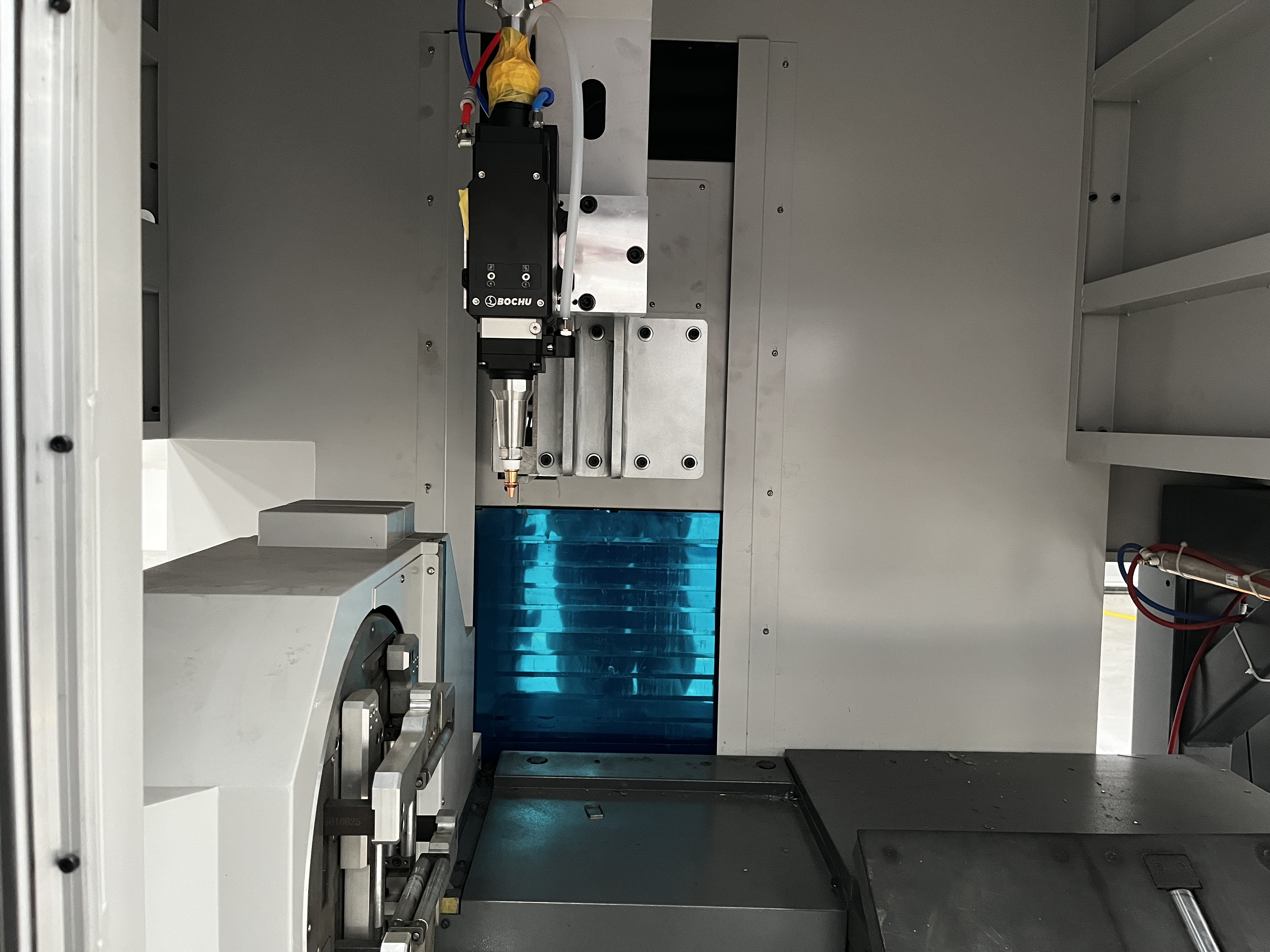

| Laser Head | BOCI |
| Loading Device | Yes |
| Servo Follower Support | Yes |
| 3D Bevel Cutting Function | Optional |
| Cuttable Shapes | Round tubes, Square tubes, Rectangular tubes, I beam, H beam, Channel Steel, Angle steel, Irregular closed metal tubes, etc.. |

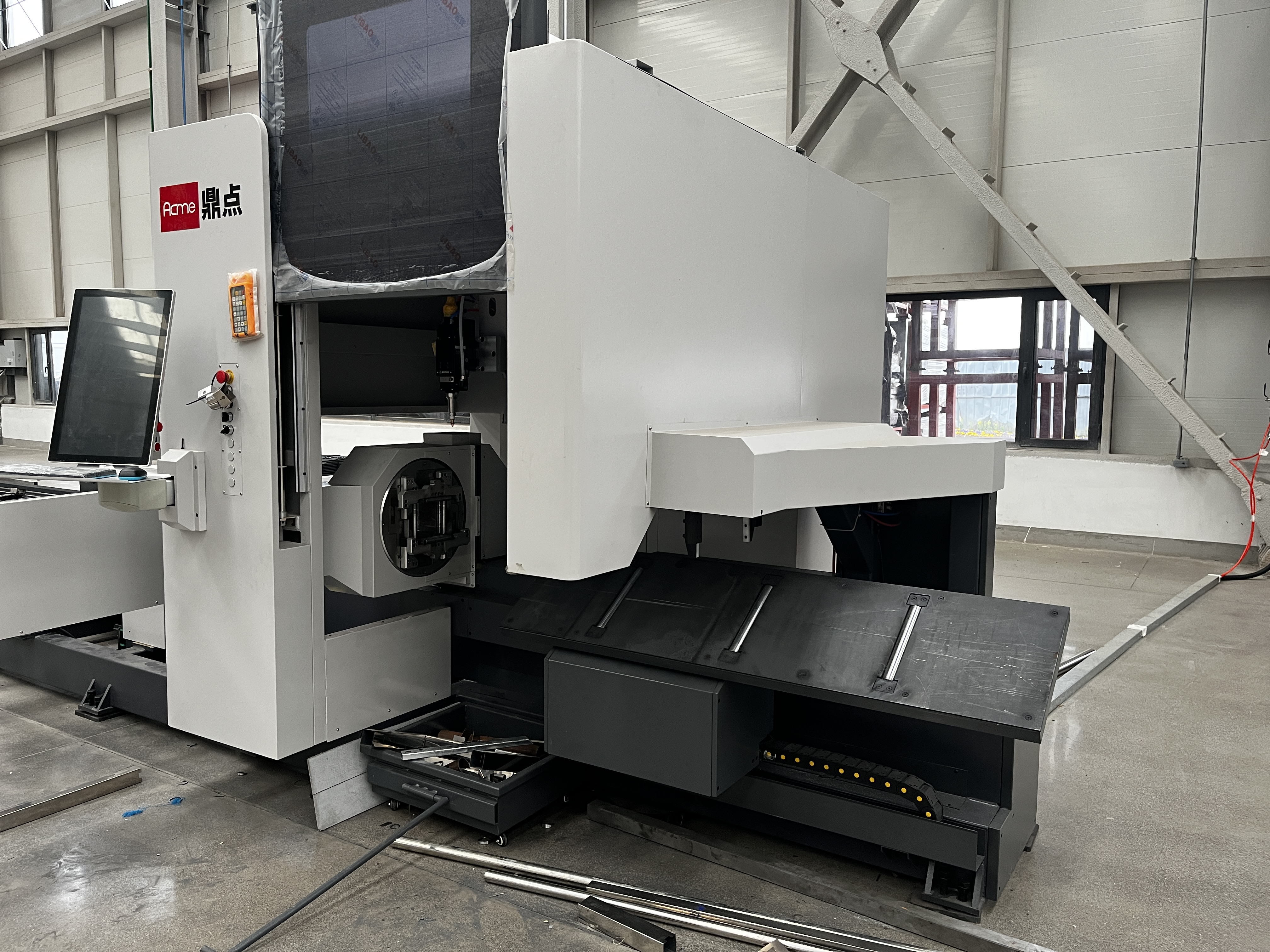

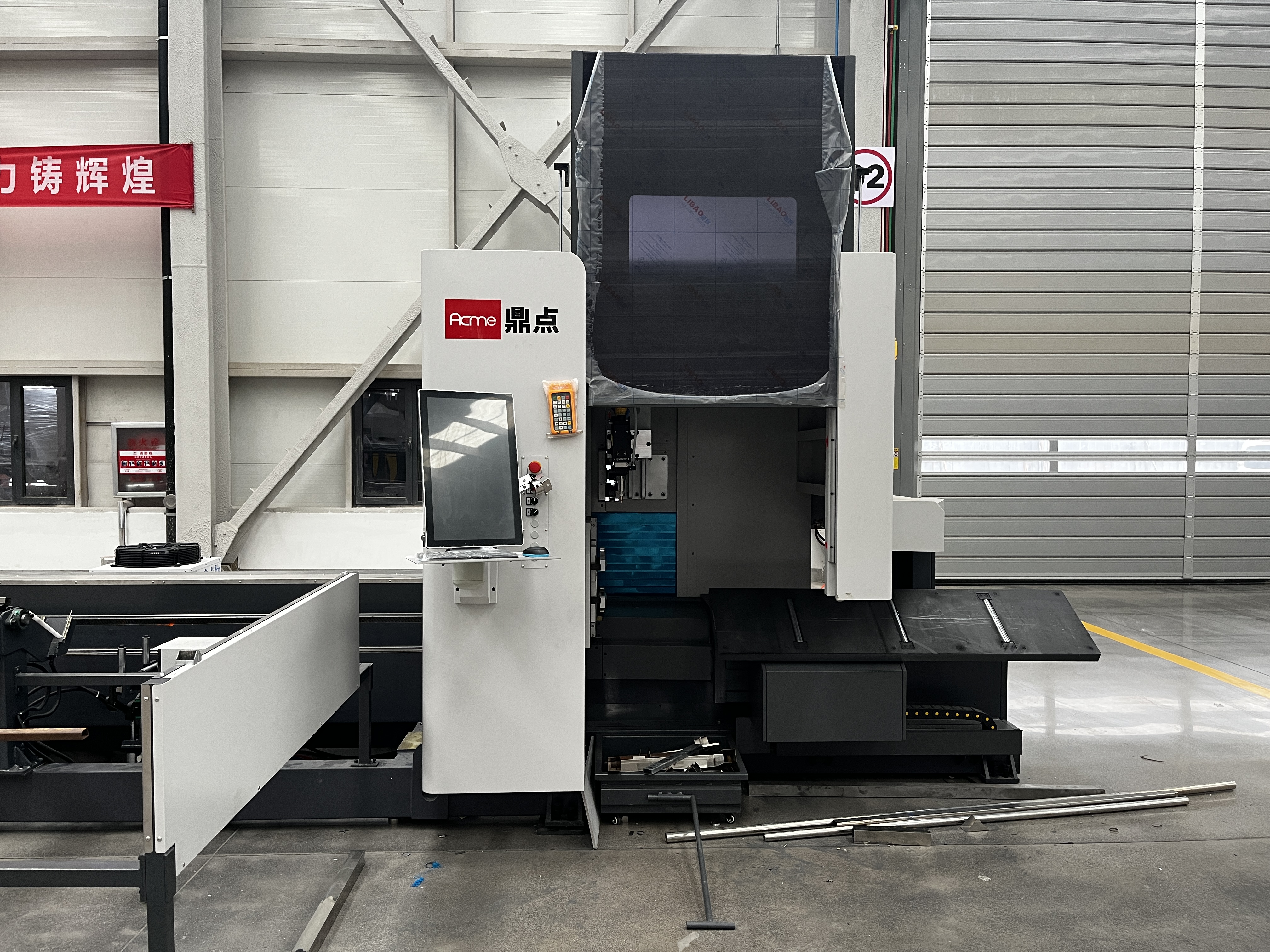

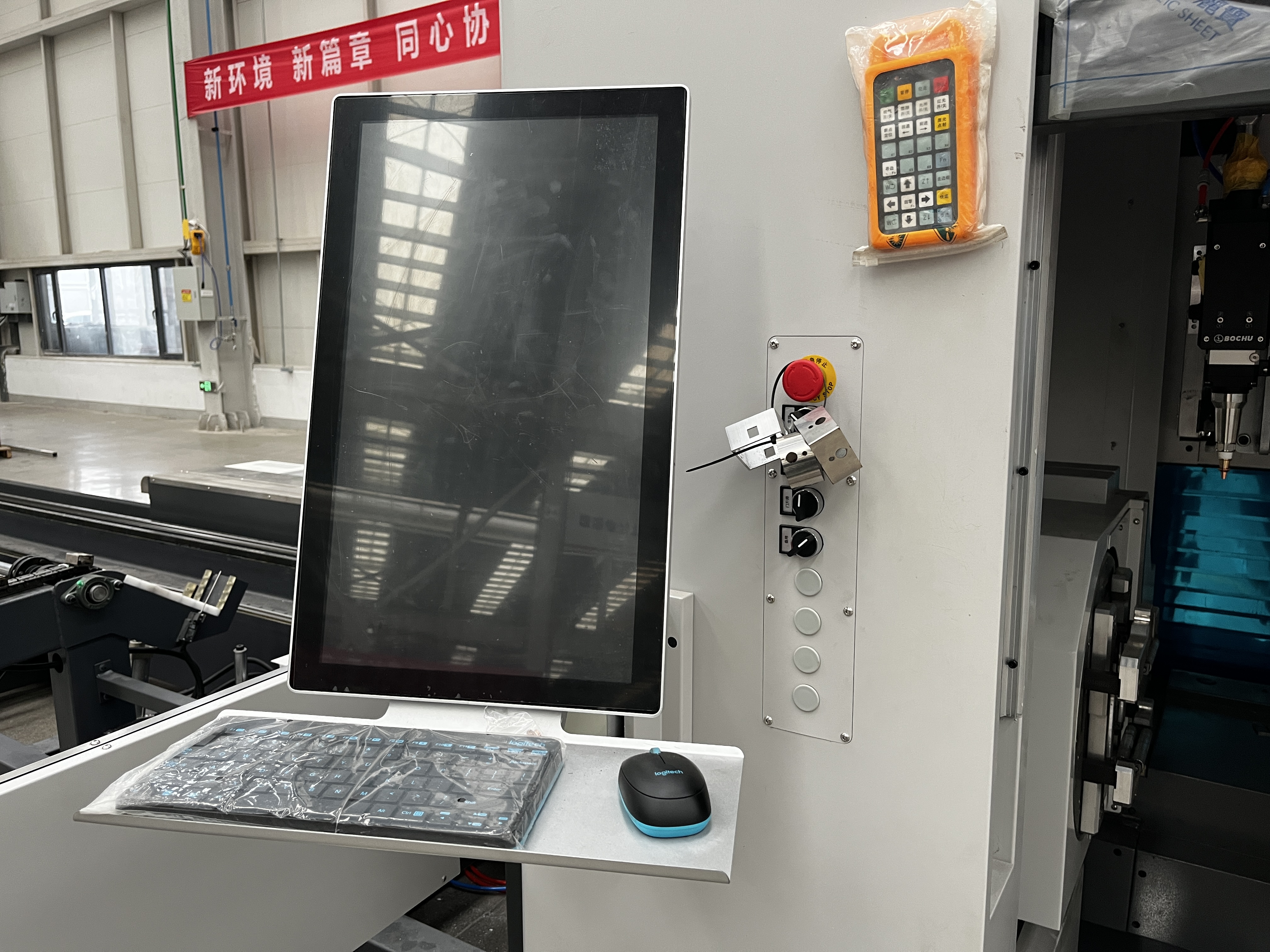

Detailed Photos of the Machine

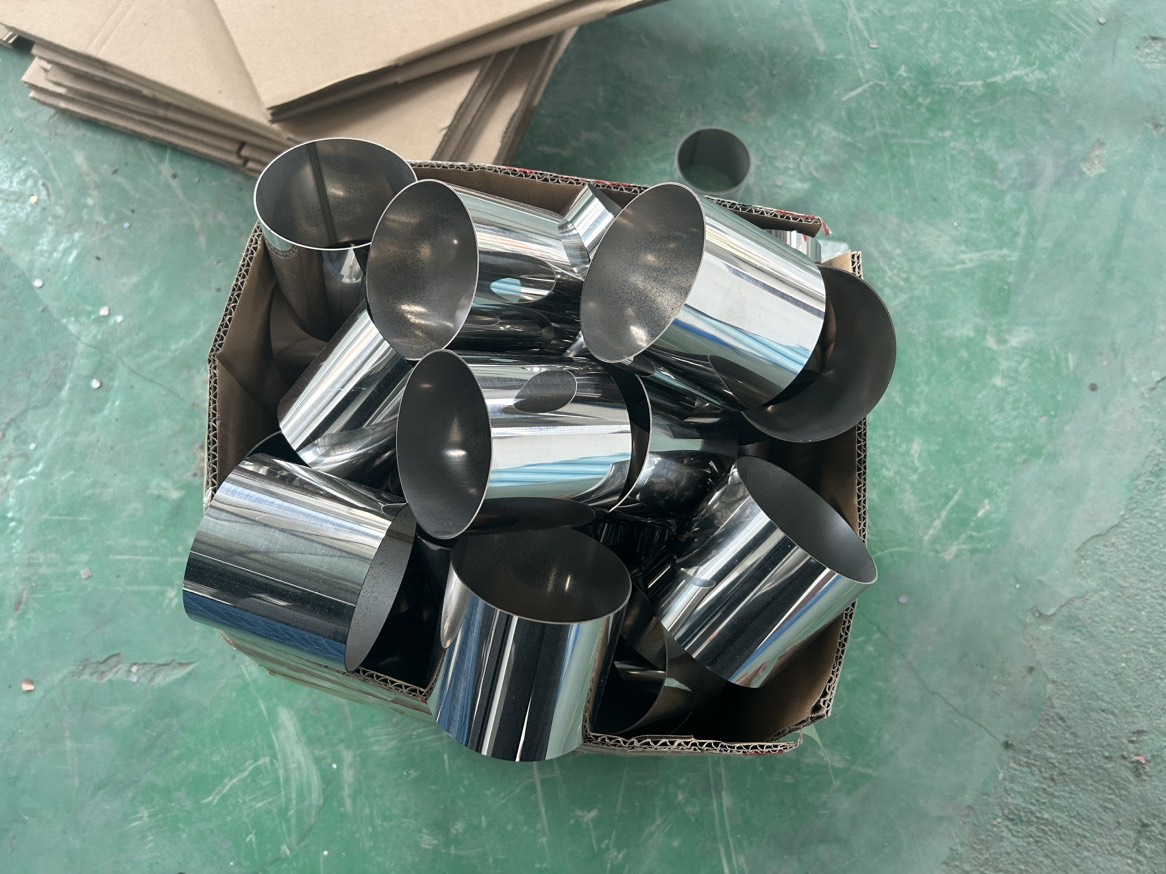

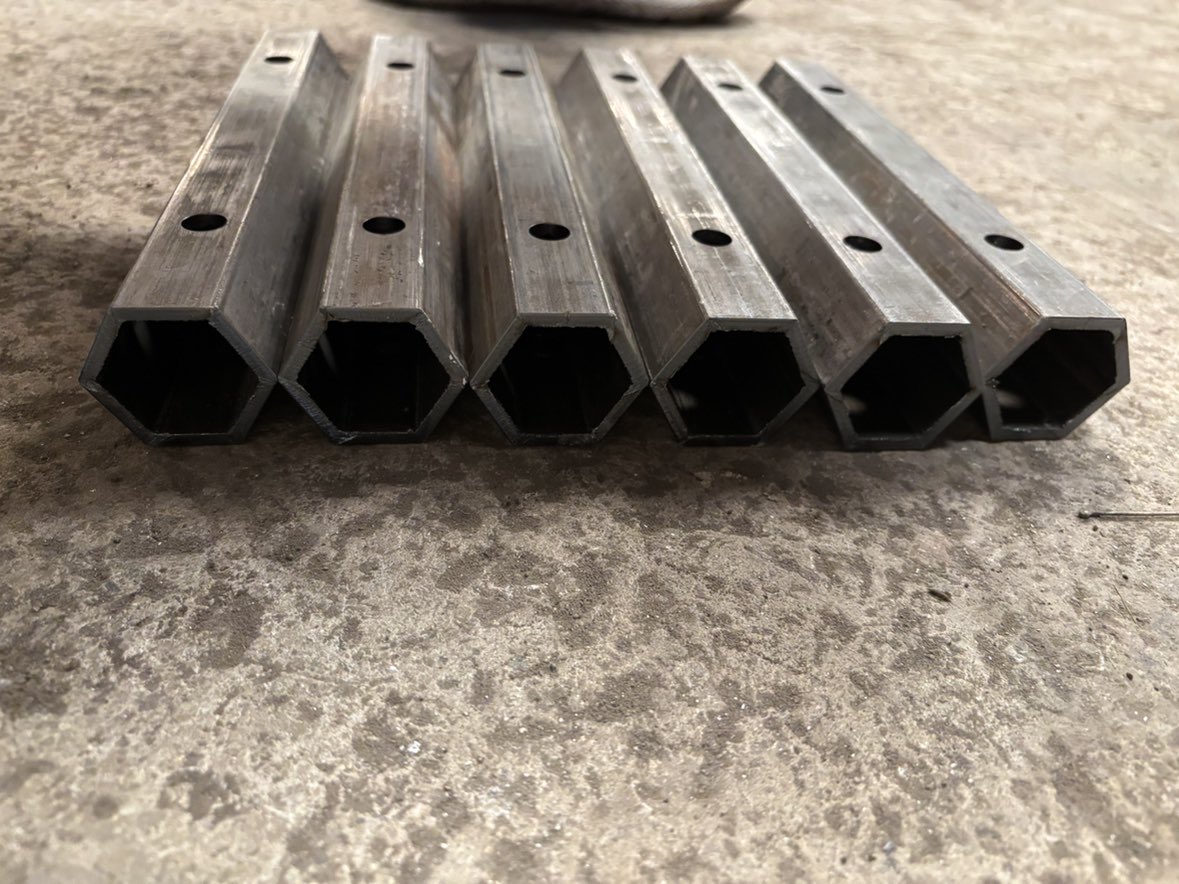

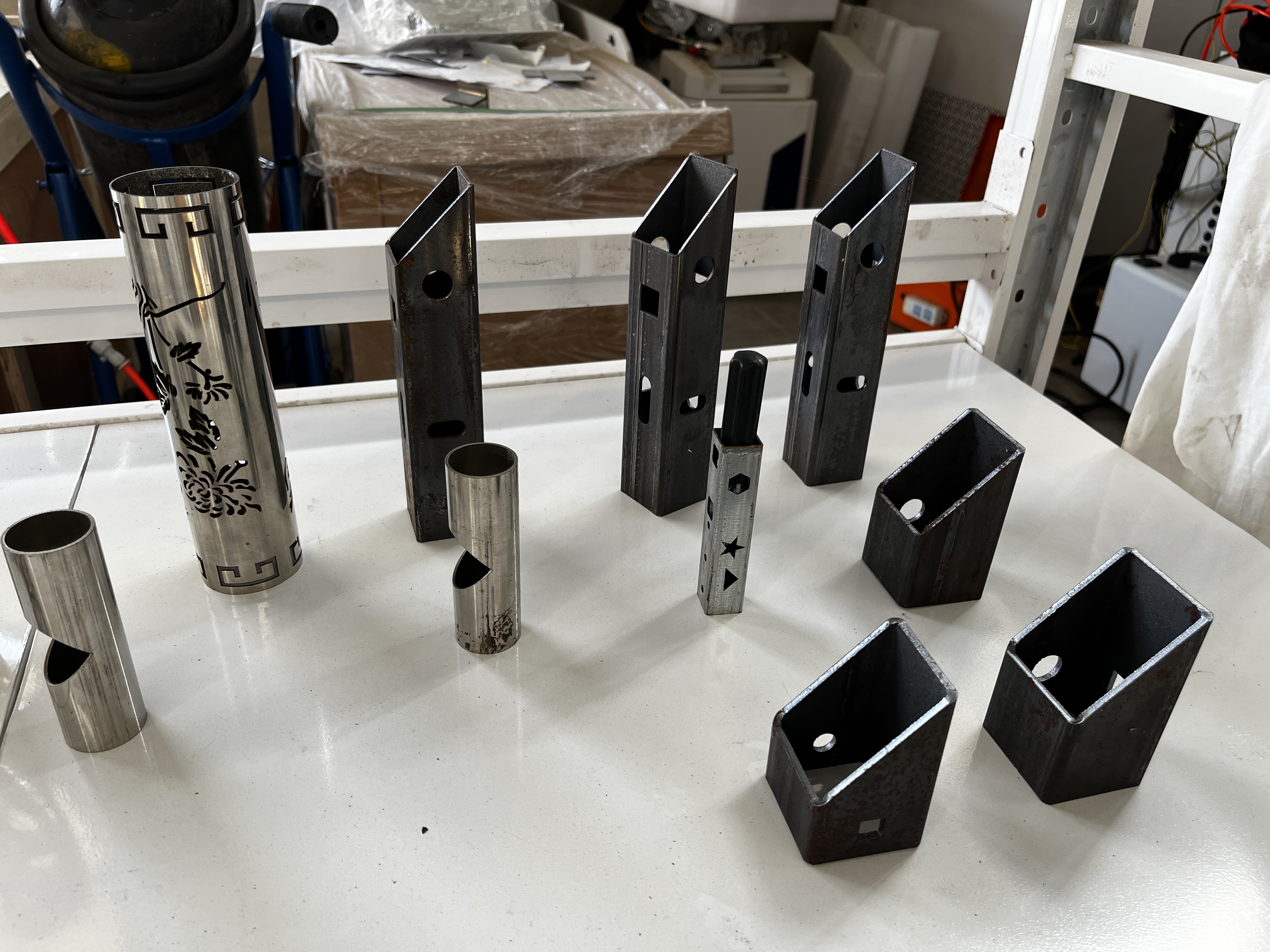

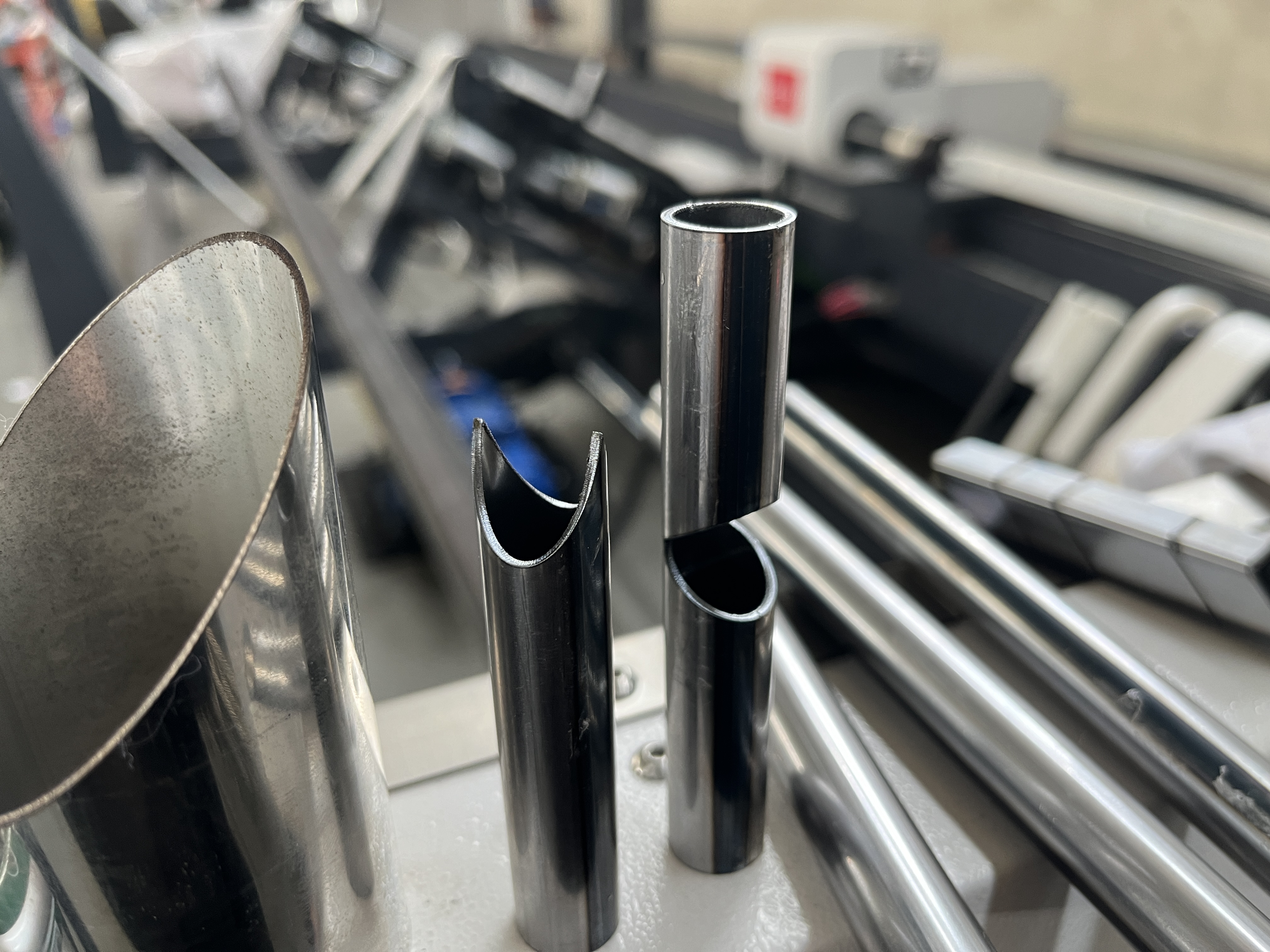

Cutting Samples
Product Advantages:
1) Powerful Cutting Capabilities: The product features rapid cutting speeds, high precision, exceptional stability, low operating costs, and strong adaptability.
2) High-Performance Motion: The machine achieves a motion acceleration of up to 1.5G and is equipped with a high-speed, fully enclosed 120mm chuck capable of rotating at 200 rpm—delivering a cutting efficiency increase of over 50% compared to standard models.
3) Intelligent Avoidance Technology: The front chuck is capable of a forward travel of 1000mm, thereby ensuring cutting precision and boosting production efficiency. The minimum tailing length is just 35mm.

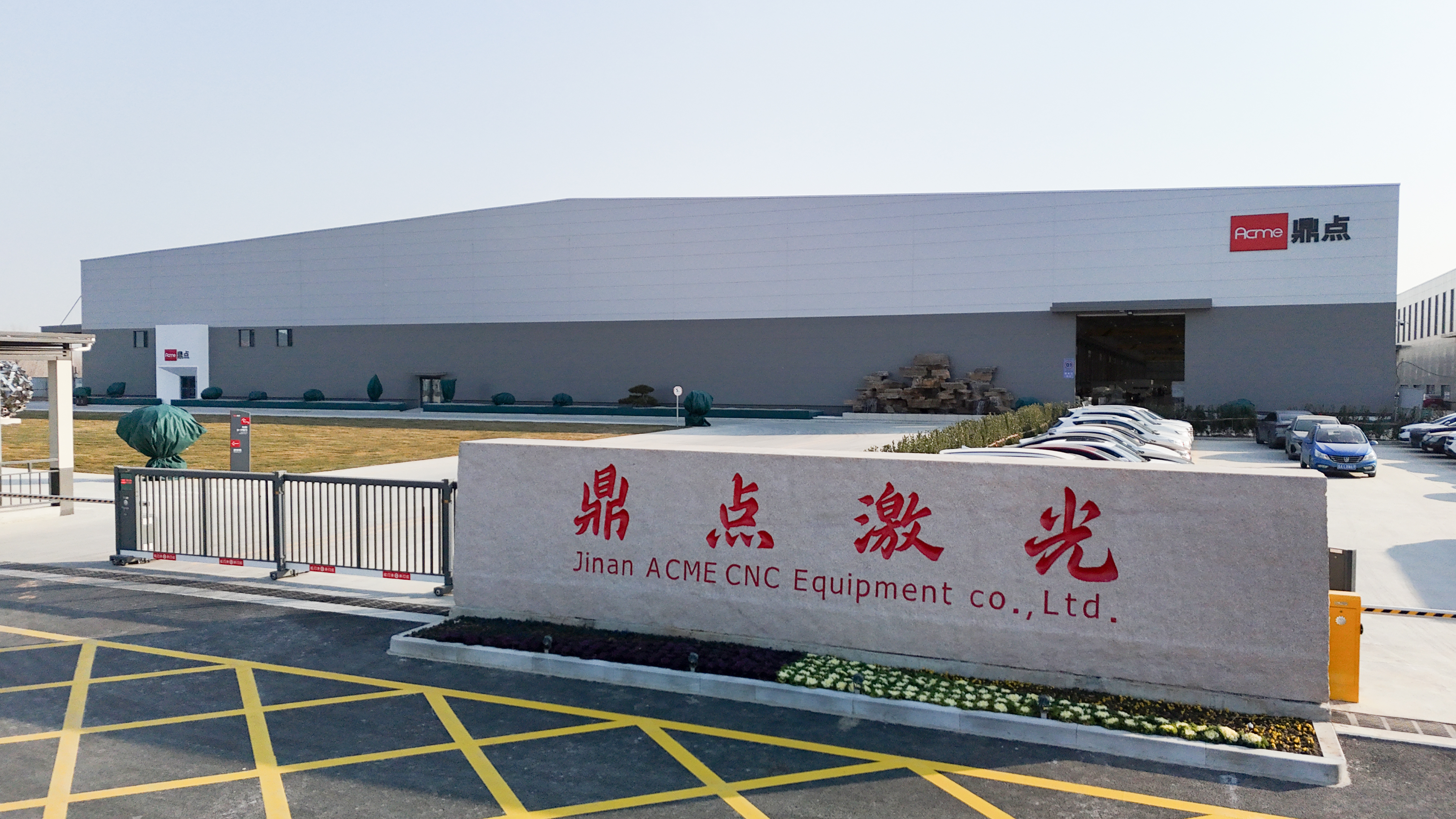

ACME Factory & Team
