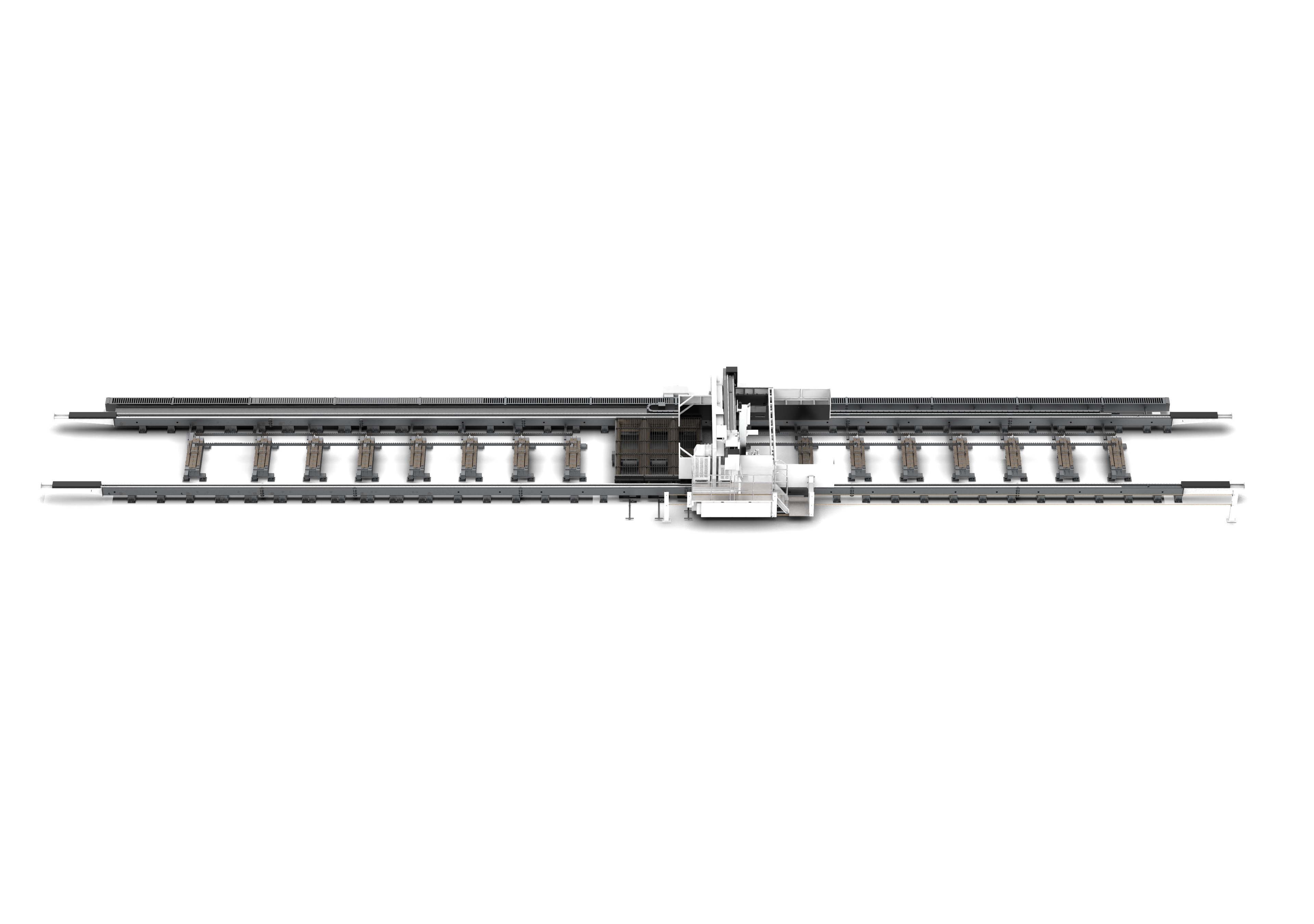

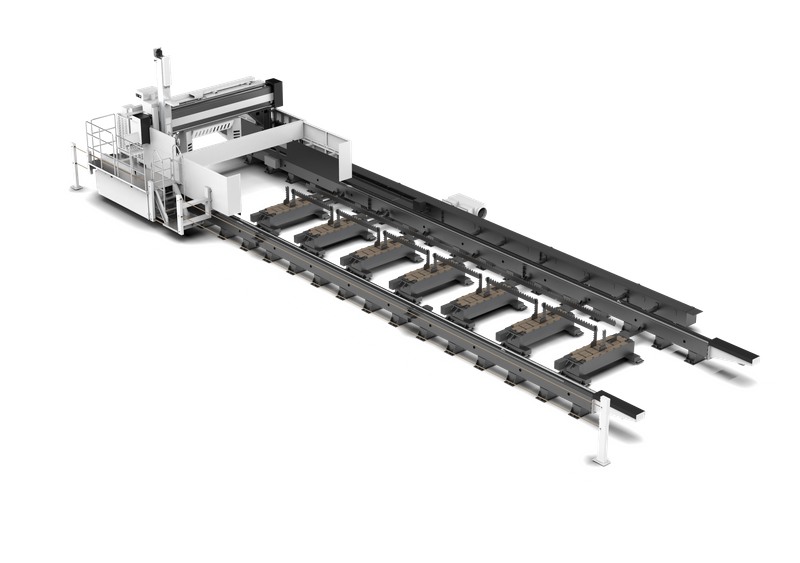

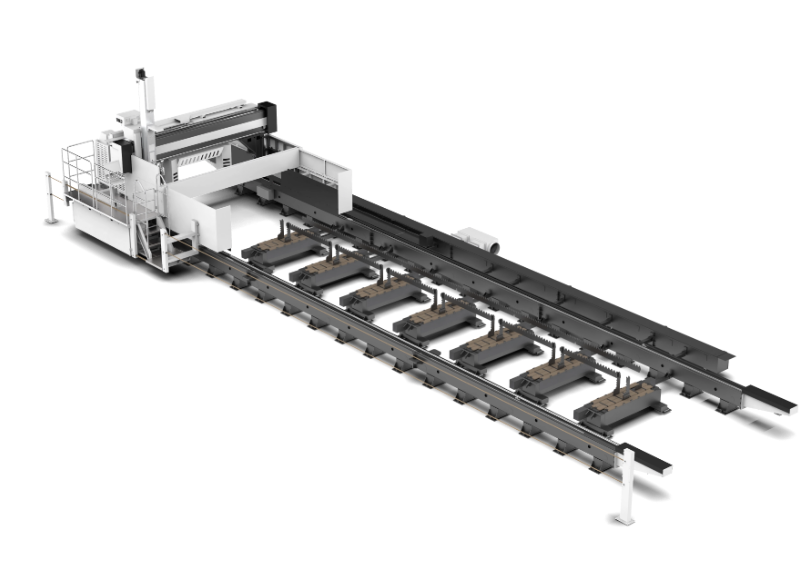

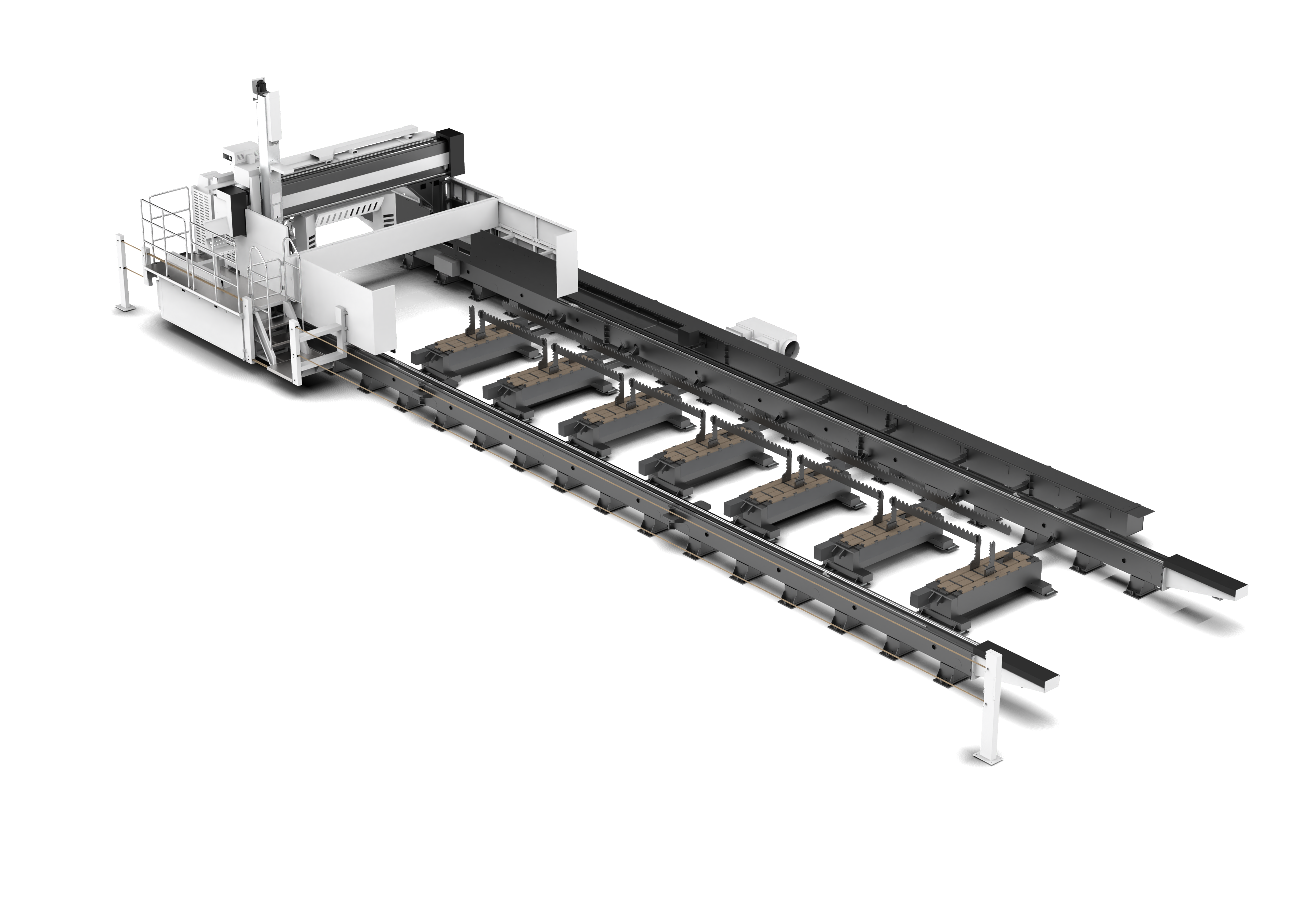

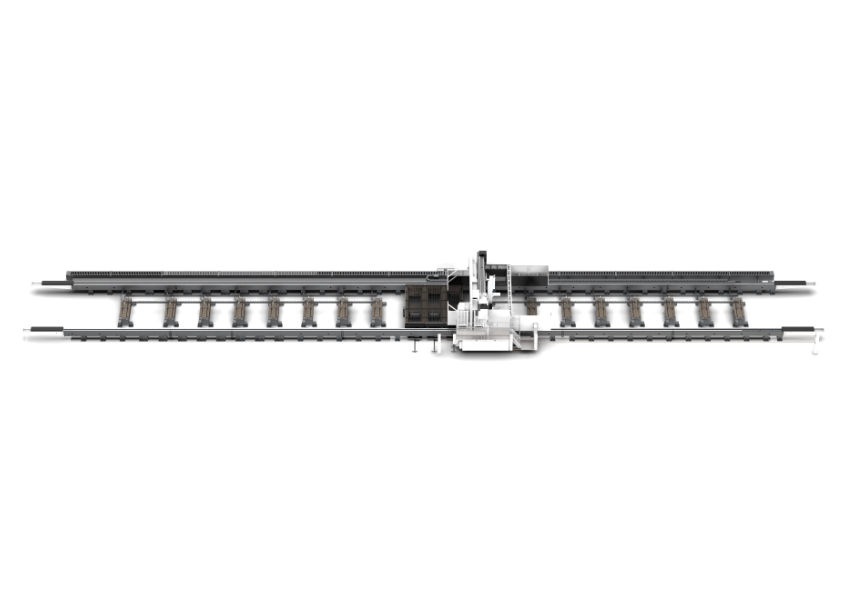

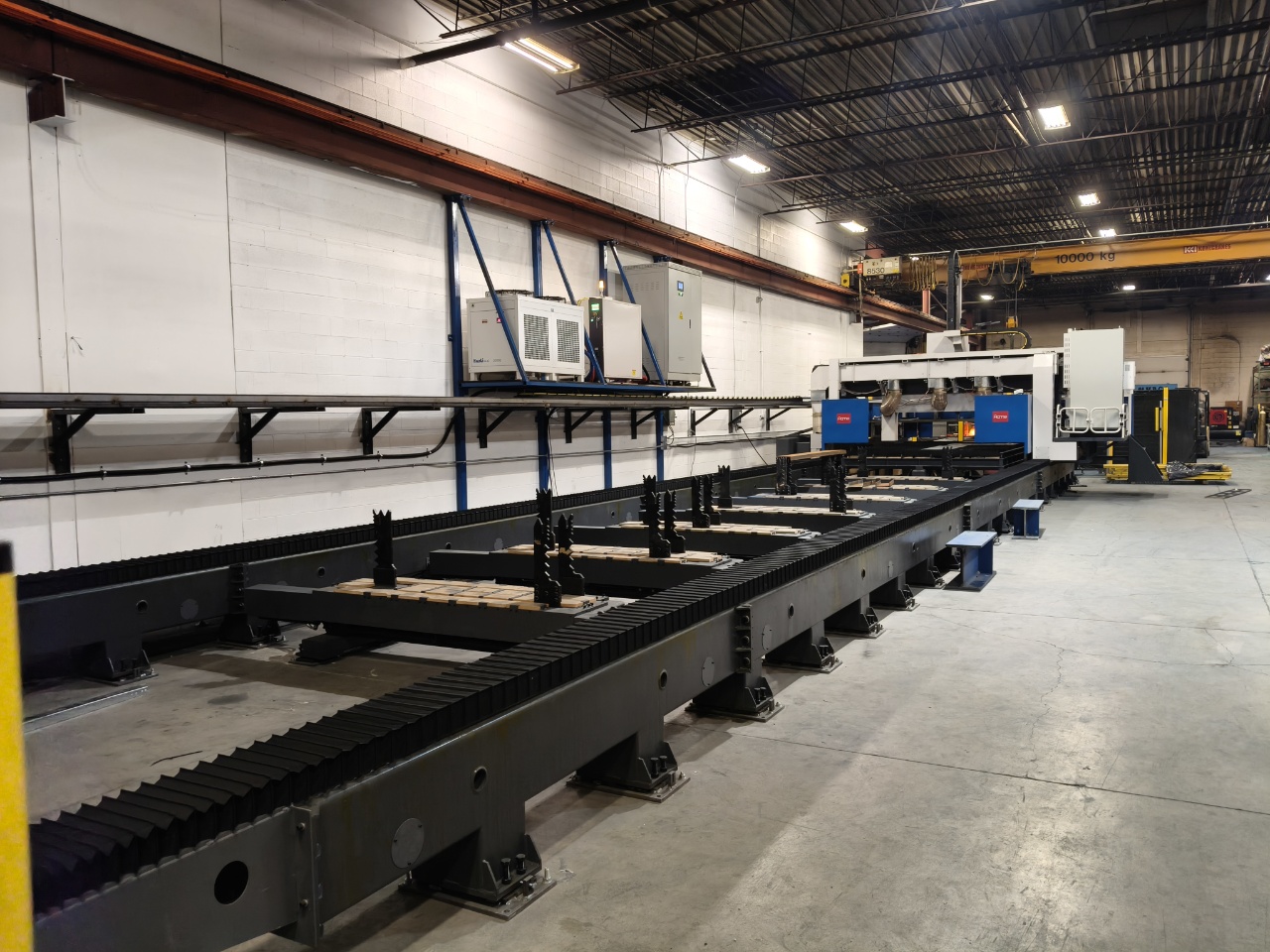

LHM-series Heavy Duty Gantry Profile Laser Cutting Machine

1. A heavy-duty integrated cutting machine for steel profiles and plates

2. H,I,U,L Beams & Plates Cutter

3. 3D 5-axis bevel cutting

4. Optional: Multiple workstations

5. Max I-beam/profile size: 12000*1200*600mm

6. 12KW/20KW/30KW/40KW

7. Tekla avaliable---Suitable for the steel structure processing industry

ACME LHM series

Heavy Duty Gantry Profile Laser Cutting Machine

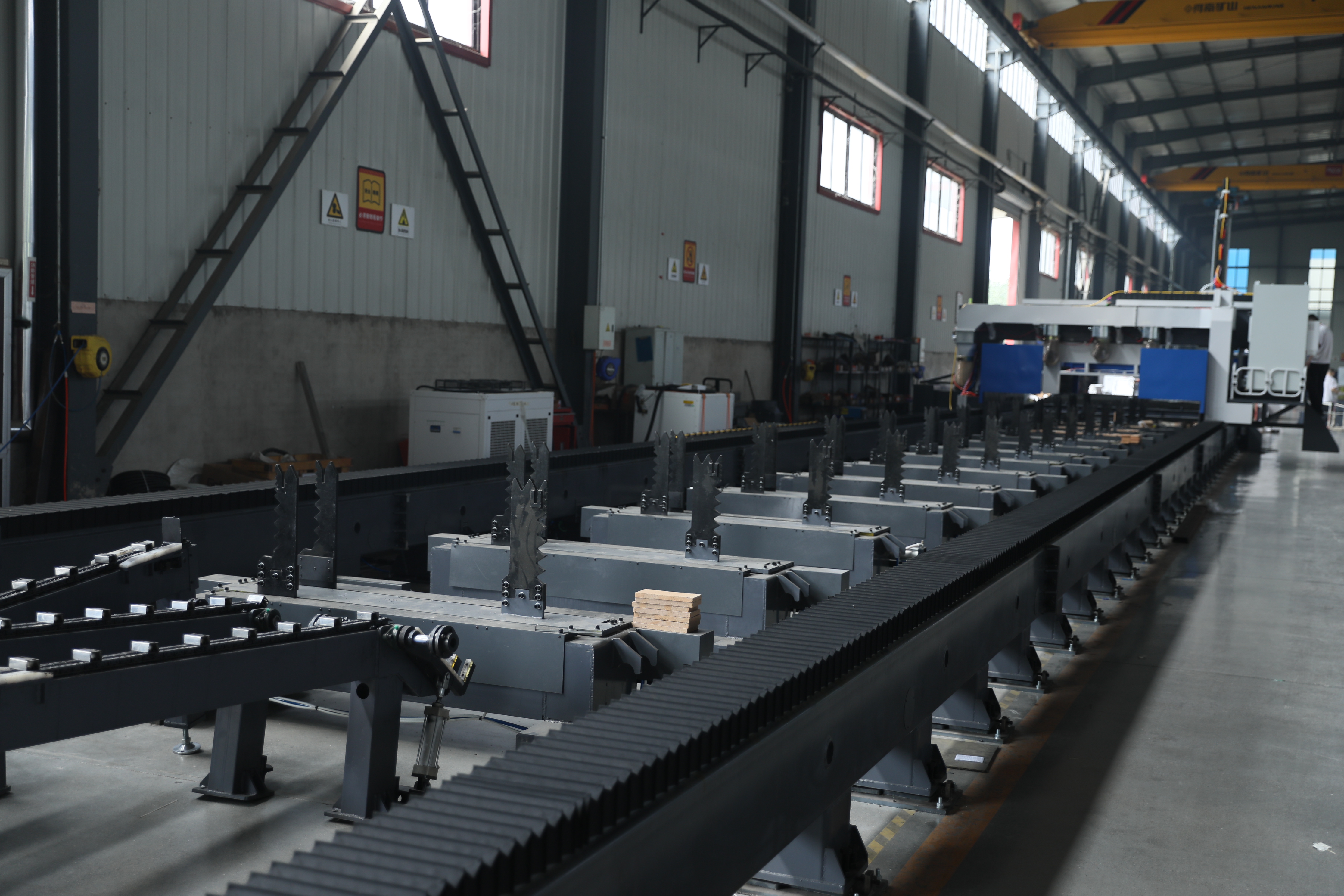

Gantry cutting + Ground-Rail bed structure

Heavy duty machine bed design！

Suitable for heavy-duty profile cutting!

Simple to operate! High cutting precision!

Optional: Multiple workstations

Profile cutting platform: 12m*Single/12m* Double

Plate cutting platform:

Length:3m/6m/12m +Width:2m/2.5m/3m

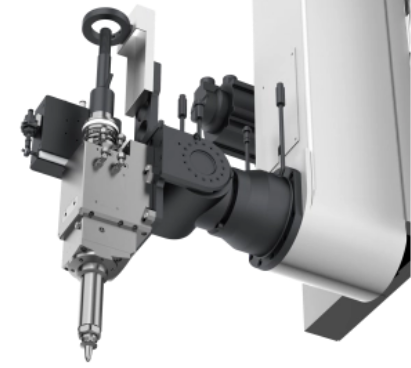

3D 5-Axis Bevel Cutting Function

A+B Swing Axis - Capable of processing various beveling techniques

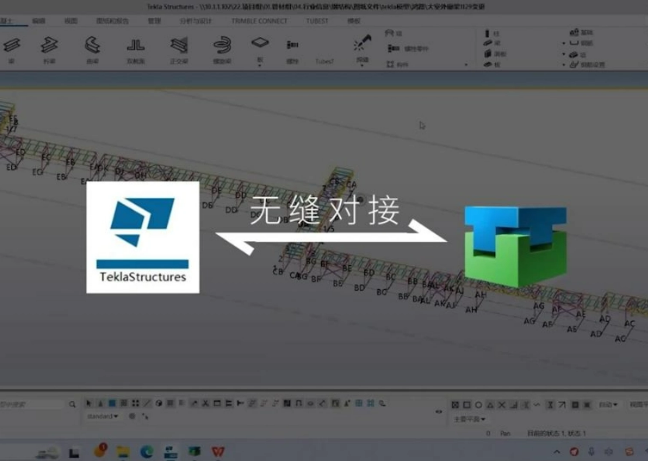

Seamless integration with Tekla

Very suitable for the steel structure industry

Machine Spec

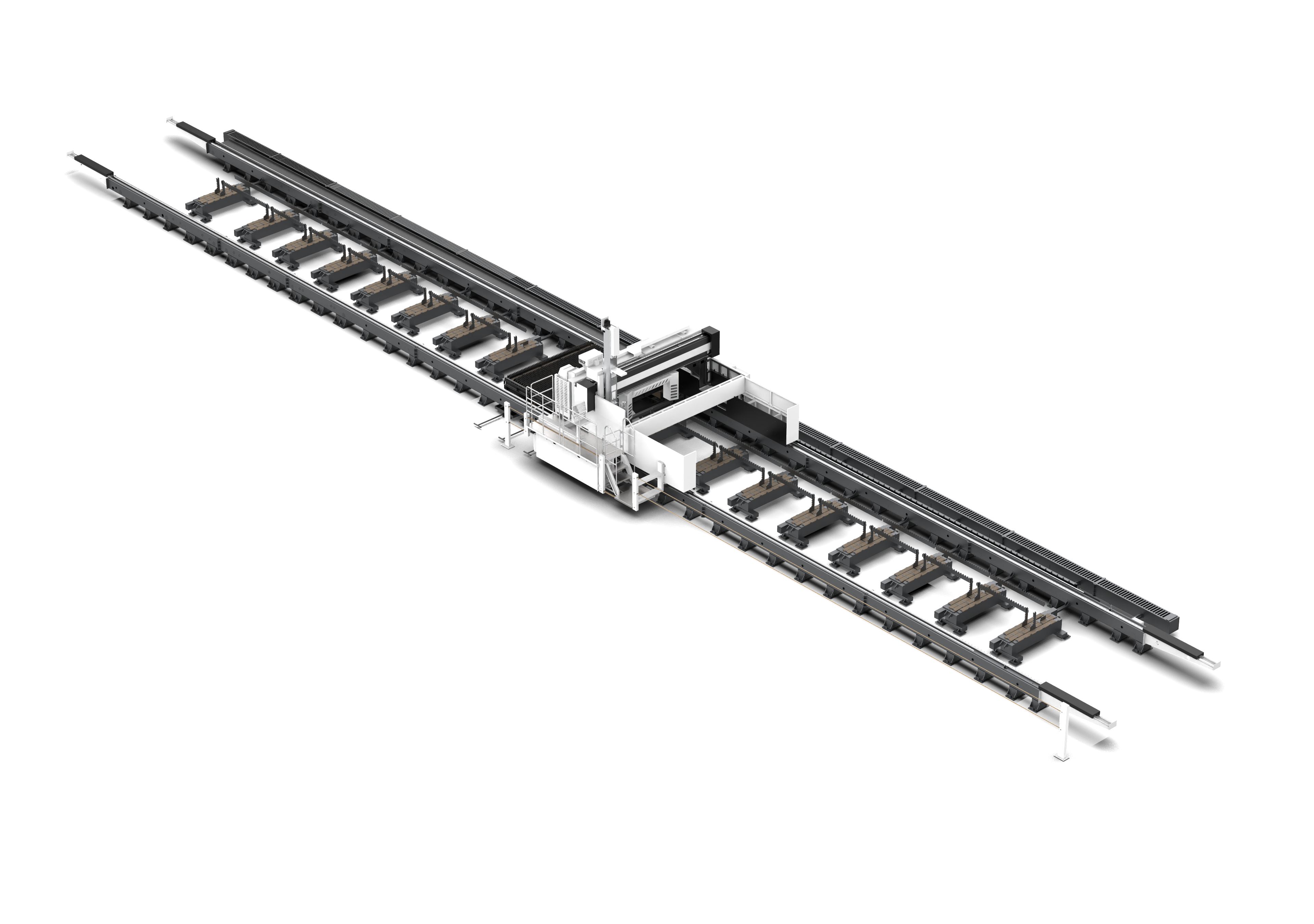

Model (example)	LHM-12012	LHM-H12012+P6020	LHM- H12012+H12012+P6030
Description	Single 12m Profile platform	12m Profile platform &6m*2m Plate Platform	Dual12m Profile platform & 6m3m Plate Platform
Power	12KW/20KW/30KW/40KW
Max profile size	125001200600mm(LWH)
Min profile size	12500200100mm(LWH)
Max plate size	/	6000*2000mm	6000*3000mm

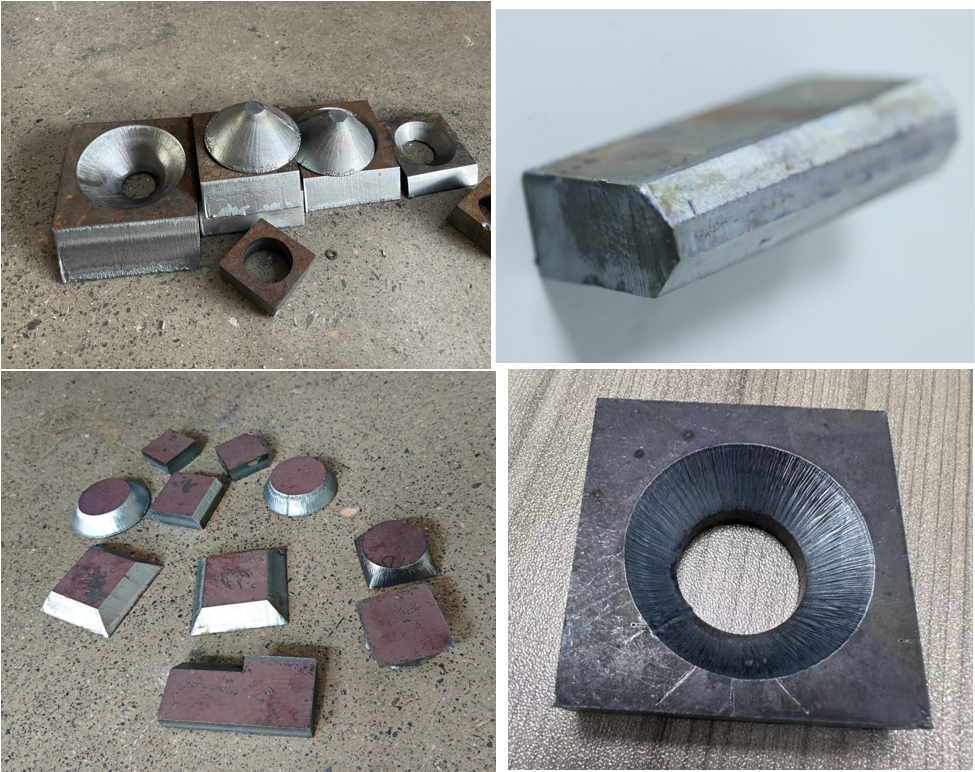

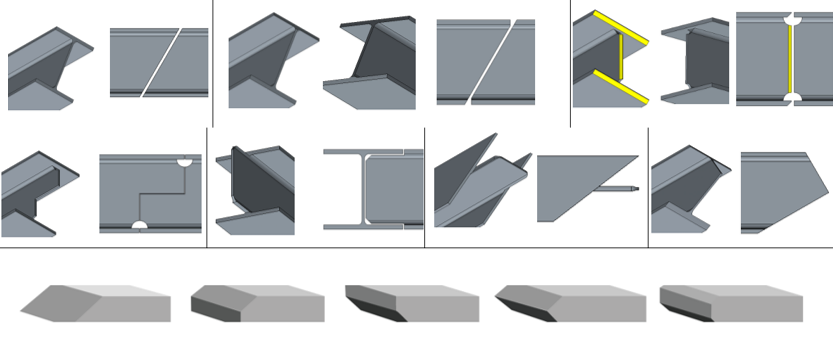

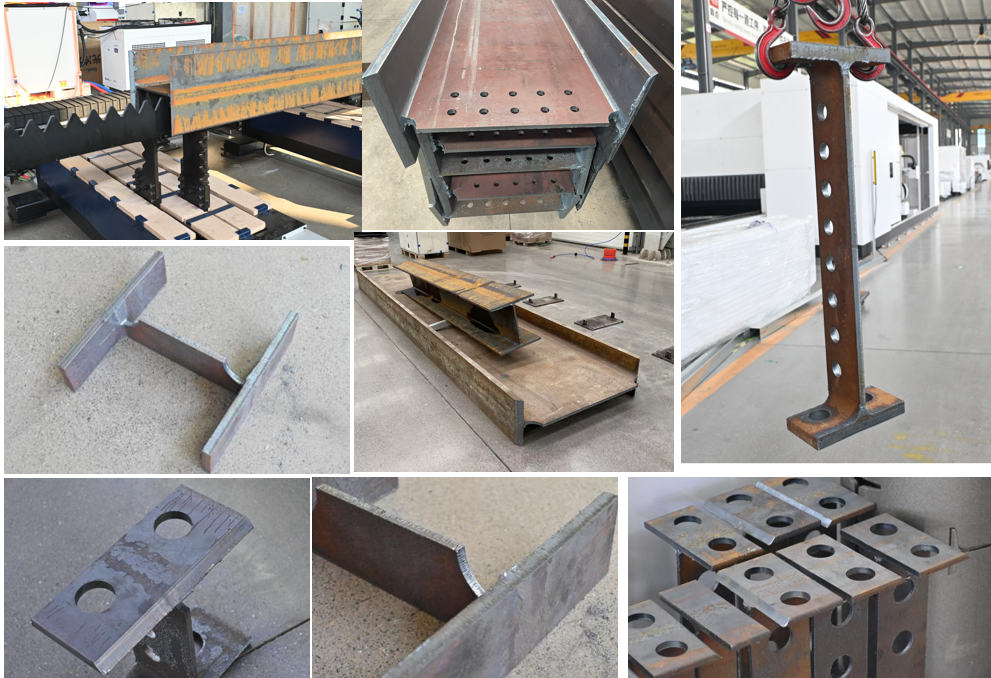

Cutting Sample

8de7a537-4d87-4ca2-85c1-e29446d4f4a8

6a13812a-6e0f-482e-8ba6-c39180c0e429

46174b0b-3bc2-4d47-b959-2c30a36bce50
