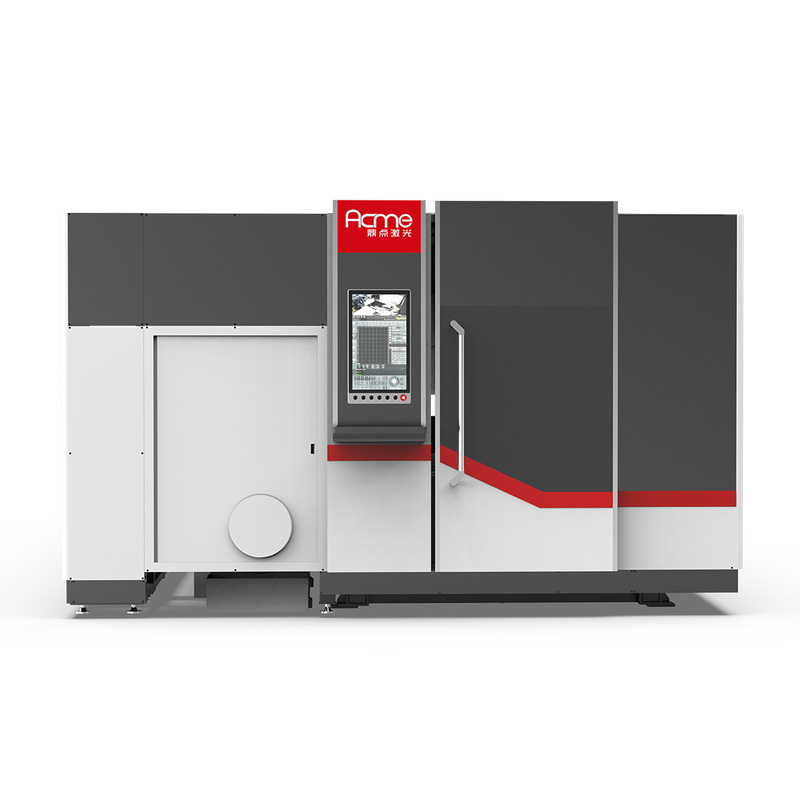

LP3015DT Environmentally Friendly Sheet & Tube Laser Cutting Machine
-
LP-3015DT
-
ACME
ACME LP-3015DT250
Sheet & Tube Integrated Laser Cutter
Next-generation heavy-duty LP series with upgraded design: stronger structure, higher precision, and longer service life. Ideal for cutting plates, square tubes, round tubes, channel steel, and angle steel. One machine for two applications with superior cutting performance.
- One Machine For Two Applications — plates, tubes & profiles
- Cutting Area: 3000×2500mm | Tube Length: 6000mm
- ACME 8-Cylinder Chuck (Self-developed, high precision, Ø250mm)
- MAX / Raycus Laser Source | Raytools Autofocus Cutting Head
- FSCUT Control System | Wireless Control & Cloud Monitoring
- Heavy steel pipe welded bed, Italy COLGAR milling center processed
| Model | LP-3015DT250 |
|---|---|
| Laser Power | 1kW – 6kW (MAX 6kW optional) |
| Cutting Area (Sheet) | 3000 × 2500 mm |
| Tube Length | 6000 mm (standard, auto loading optional) |
| Tube Diameter (Round) | ⌀20 – 250 mm |
| Square Tube Range | □20 – 200 mm |
| Loading Capacity | 1200 kg |
| Positioning Accuracy | ±0.03 mm/m |
| Repeat Positioning Accuracy | ±0.015 mm |
| Max. Acceleration | 1.2 G |
| Max. Running Speed (X/Y) | 132 m/min |
| Floor Space | 9500 × 4800 × 2200 mm |
| Tube Type | Round, Square, Rectangular pipe, Angle Steel, Channel Steel |
ACME 8-Cylinder Chuck
Self-developed, high precision. Only Chinese factory with own chuck workshop — original parts always available. Ø250mm capacity.
FSCUT Control System
Advanced professional version, wireless control handle, touch screen support, cloud monitoring & remote diagnostics.
Raytools Autofocus Head
Switzerland technology, automatic focus adjustment, anti-collision, high durability.
MAX / Raycus Laser Source
World top brand, high photoelectric conversion rate, maintenance-free operation.
Taiwan HIWIN / YYC
Original HIWIN guide rail, YYC helical rack — ultra high accuracy, long lifetime.
Japan Shimpo Reducer
>100,000 hours lifetime, higher torque and rigidity, maintenance free.
Inovance Servo Motors
Stable, reliable, suitable for harsh industrial conditions, high dynamic response.
Schneider / SMC Components
France Schneider electrical, Japan SMC proportional valve, world-class reliability.
Mild Steel
Clean cutting up to 20mm
Stainless Steel
Precision edges, no dross
Aluminum & Brass
High reflectivity solution
Tube Cutting Demo
Round, square, channel
15 Years Deformation-Free
Thickened machine bed, heavy steel welded structure, no deformation for over a decade
Constant High Precision
Even after 5-10 years, machine maintains original accuracy
24/7 Global Support
Professional technical team, remote diagnose & original spare parts supply
Cloud System
Real-time data collection, remote monitoring, reduce downtime
Jinan ACME CNC Equipment Co., Ltd.
Established in 2016, national high-tech enterprise integrating R&D, production and sales. Over 300 employees, 100+ patents, 60,000m² workshop, Italy COLGAR milling center.
300+
Employees
100+
Patents
60,000m²
Workshop Area
7,000+
Pipe Cutters Sold
Selling pipe cutting machines over 7,000 sets with double sales growth yearly. Trusted by global customers.
