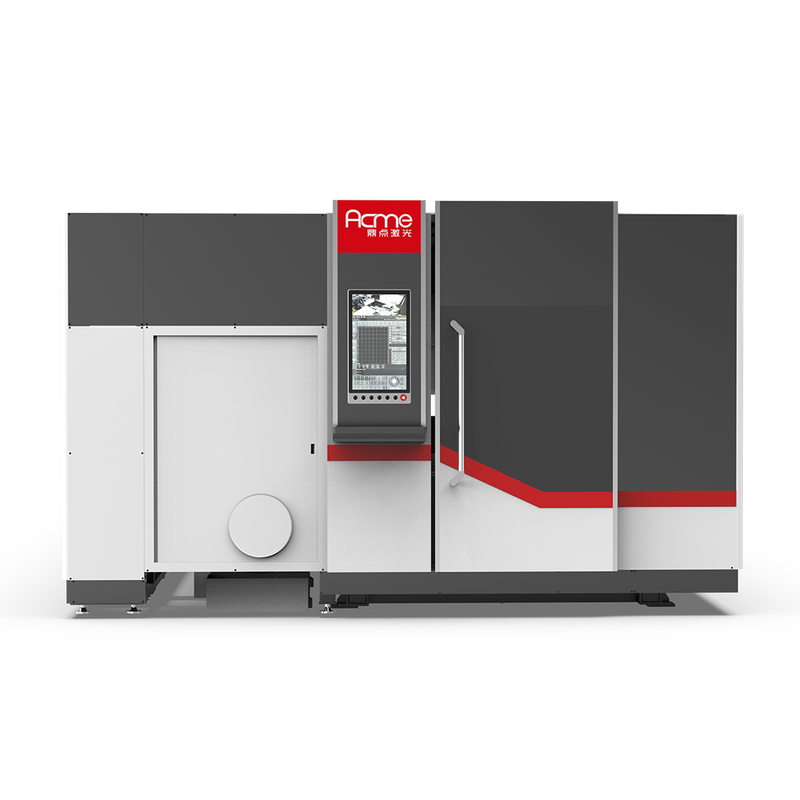

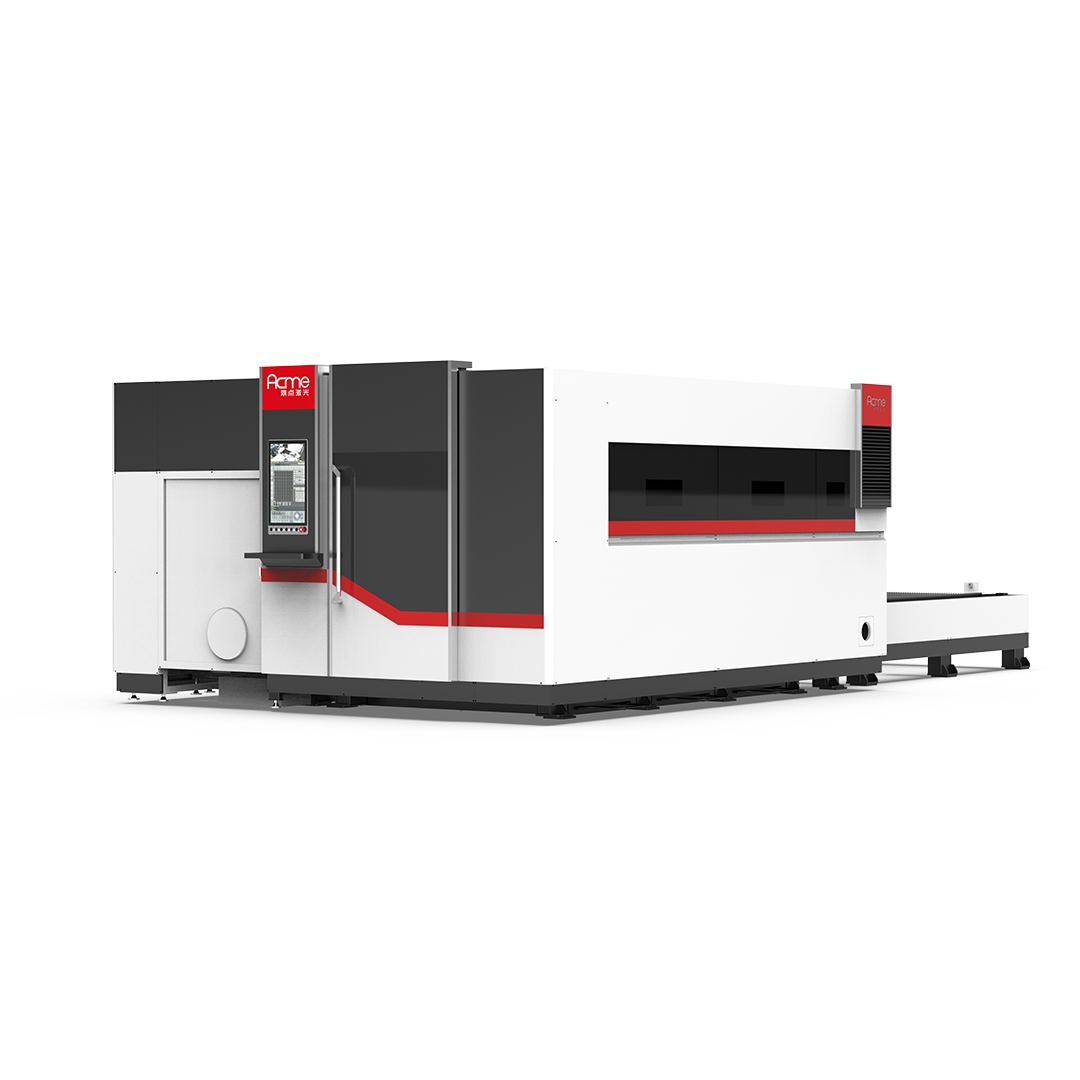

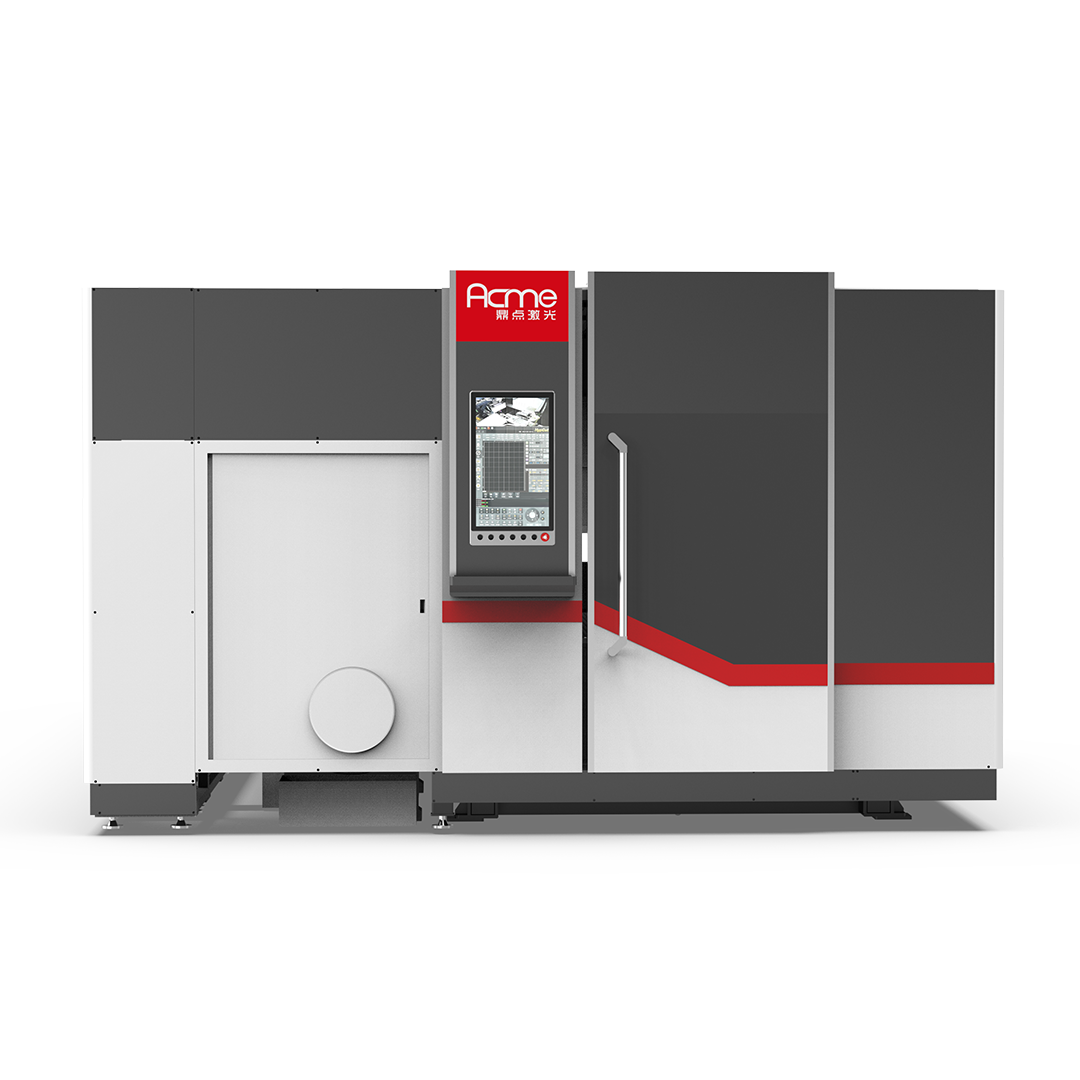

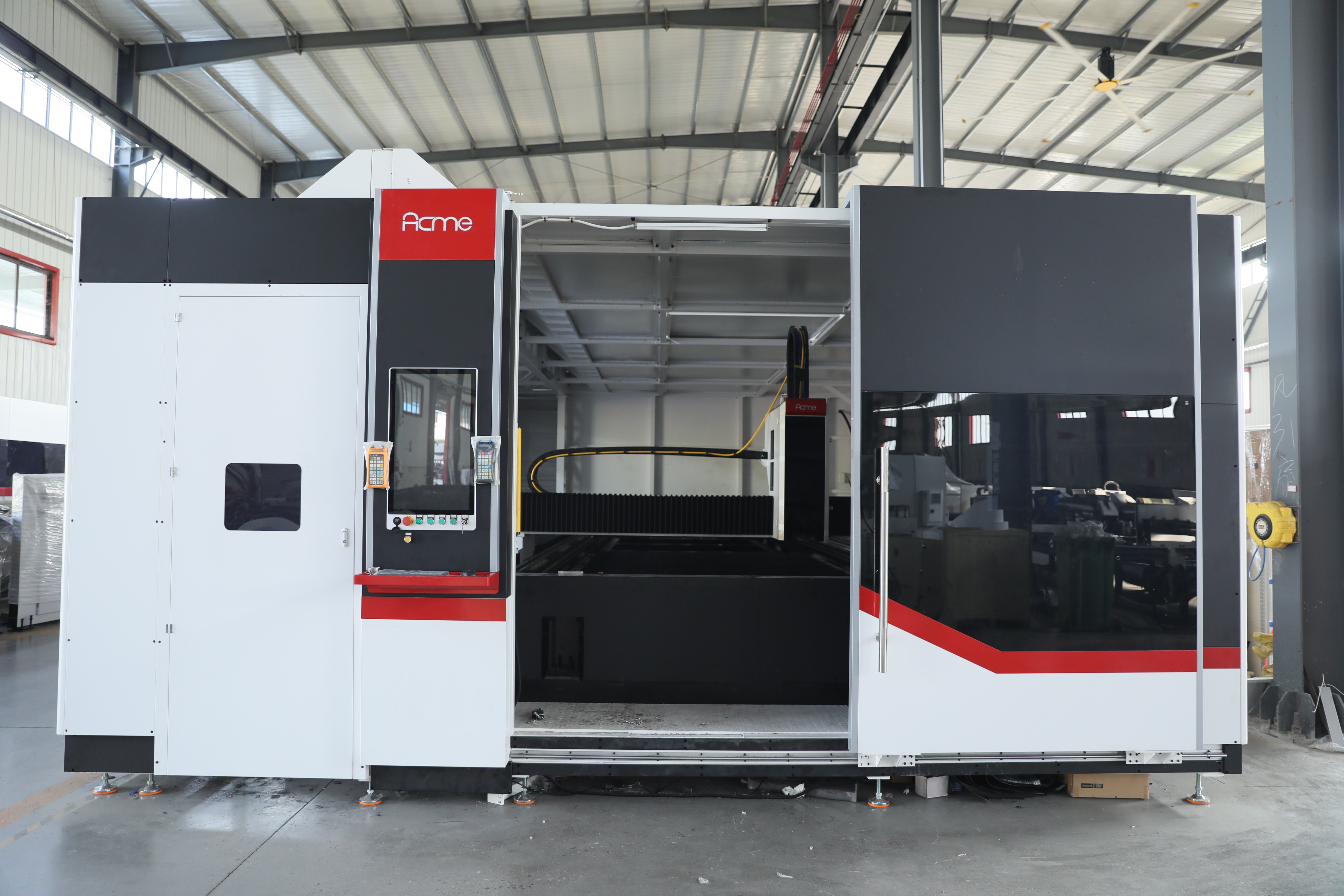

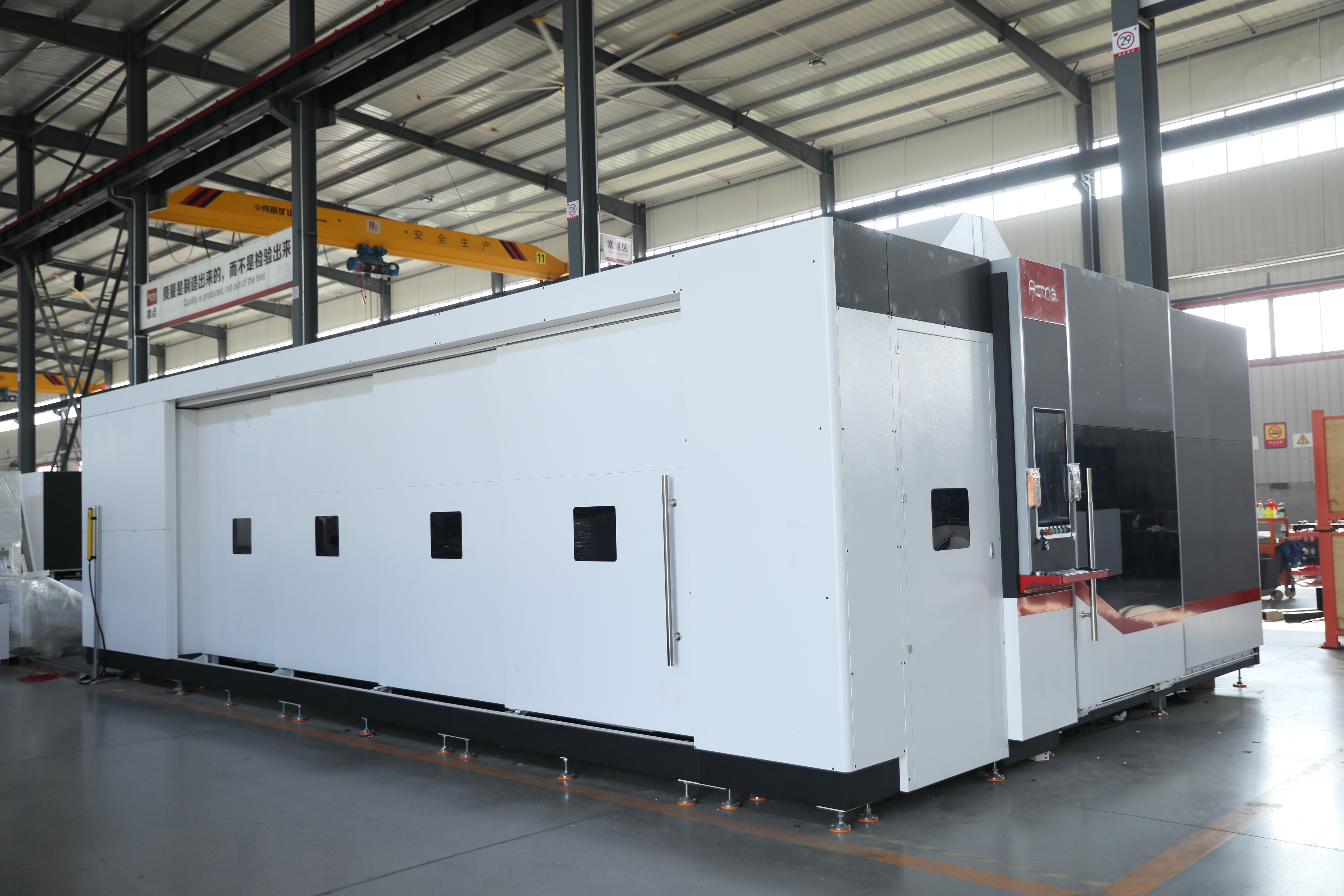

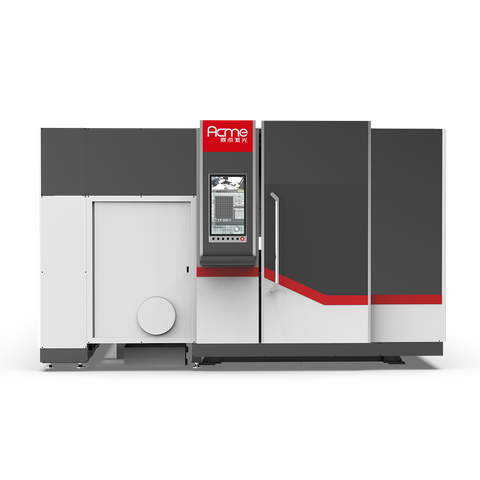

LP3015DT Closed plate and tube integrated machine
| Quantity: | |
|---|---|
-
LP-3015DT
-
ACME
ACME LP-3015DT250
Sheet & Tube Integrated Laser Cutter
2026 new design upgrade heavy-duty LP series: stronger structure, higher precision, and longer service life. Adopted latest technology with more reasonable structure, beautiful appearance and convenient operation. The upgraded machine is more responsive and powerful — quick cutting, making holes, cutting graphics with smoother surface, no serious scorched, sticky and sediment.
- One Machine For Two Applications — plates, tubes & profiles
- Cutting Area: 3000×1500mm | Tube Length: 6000mm
- ACME 8-Cylinder Chuck (Self-developed, high precision, Ø250mm) — China only factory with own chuck workshop
- MAX / Raycus Laser Source | BLT Autofocus Cutting Head
- FSCUT Control System | Wireless Control & Cloud Monitoring
- Heavy steel pipe welded bed, Italy COLGAR milling center processed
| Model | LP-3015DT250 |
|---|---|
| Laser Power | 1kW – 6kW (MAX 6kW optional) |
| Cutting Area (Sheet) | 3000 × 1500 mm |
| Tube Length | 6000 mm (standard, auto loading optional) |
| Tube Diameter (Round) | ⌀20 – 250 mm |
| Square Tube Range | □20 – 250 mm |
| Loading Capacity | 1200 kg |
| Positioning Accuracy | ±0.03 mm/m |
| Repeat Positioning Accuracy | ±0.015 mm |
| Max. Acceleration | 1.2 G |
| Max. Running Speed (X/Y) | 140 m/min |
| Floor Space | 9500 × 4800 × 2200 mm |
| Tube Type | Round Tube, Square Tube, Channel Steel, Angle Steel |
ACME 8-Cylinder Chuck
Self-developed, high precision with innovation tech. China only factory with own chuck workshop — original parts always available. Ø250mm capacity.
FSCUT Control System
Advanced professional version, wireless control handle, touch screen support, cloud monitoring & remote diagnostics. Higher performance and easier operation.
BLT Autofocus Head
High-quality autofocus cutting head, automatic focus adjustment, anti-collision, high durability. Most efficient and durable, low failure rate.
MAX / Raycus Laser Source
World top brand, high photoelectric conversion rate, outstanding light beam, higher energy density, maintenance-free operation.
Taiwan HIWIN / YYC
Original HIWIN guide rail — German high quality steel, cryogenic treatment. YYC helical rack with ultra high accuracy.
Japan Shimpo Reducer
>100,000 hours lifetime, higher torque and rigidity, more stable and maintenance free.
Inovance Servo Motors
Stable, reliable, suitable for harsh industrial conditions, high dynamic response, easy operation and long life cycle.
Schneider / SMC Components
France Schneider electrical, Japan SMC proportional valve — world-class reliability, perfect gas flow control.
Technology Validation & Features
15 Years Deformation-Free
Thickened machine bed, heavy steel welded structure — no deformation for over a decade, greatly extending service life.
Constant High Precision
Even after 5-10 years, machine maintains original accuracy with constant high processing quality.
24/7 Global Support
Professional technical team, remote diagnose, original spare parts supply — 15 years of technical accumulation.
Cloud System
Real-time data collection, remote monitoring, fault diagnosis, reduce downtime, extend machine life cycle.
Jinan ACME CNC Equipment Co., Ltd.
Established in 2016, national high-tech enterprise integrating R&D, production and sales. Over 300 employees, including 80+ R&D technicians, 100+ patents, 130+ scientific research achievements.
300+
Employees
100+
Patents
60,000m²
Workshop Area
7,000+
Pipe Cutters Sold
Large gantry milling machines, machining centers and other high precision production equipment valued over RMB 30 million. Independent research design and high precision manufacturing of core components. Every year double sales growth because of excellent performance!
