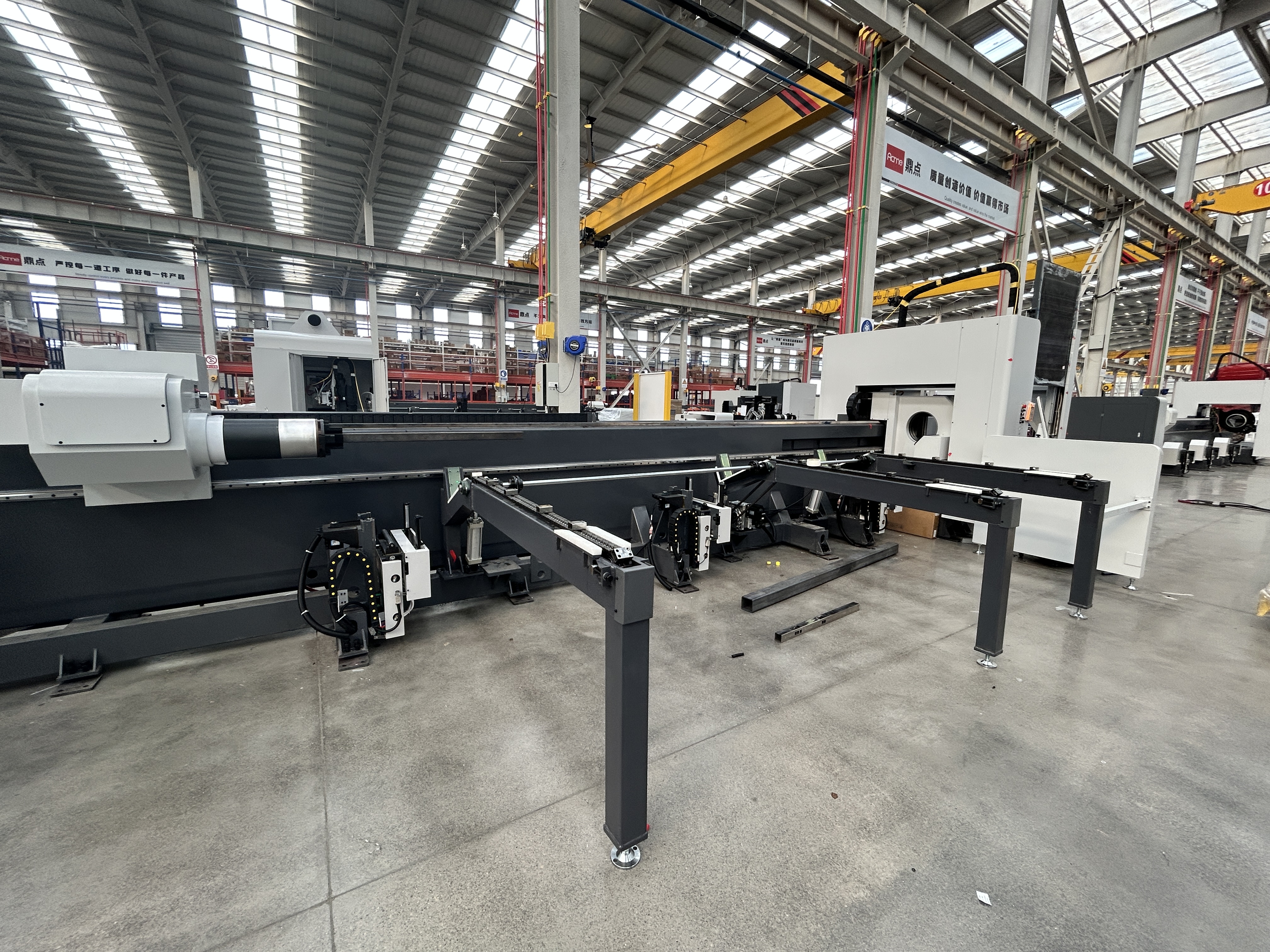

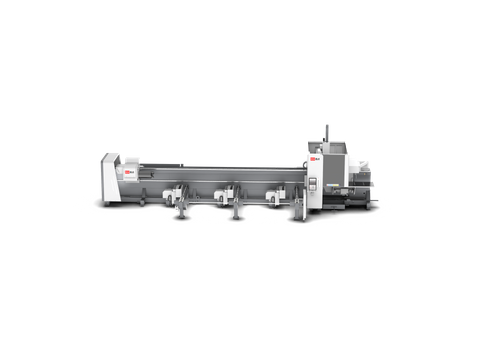

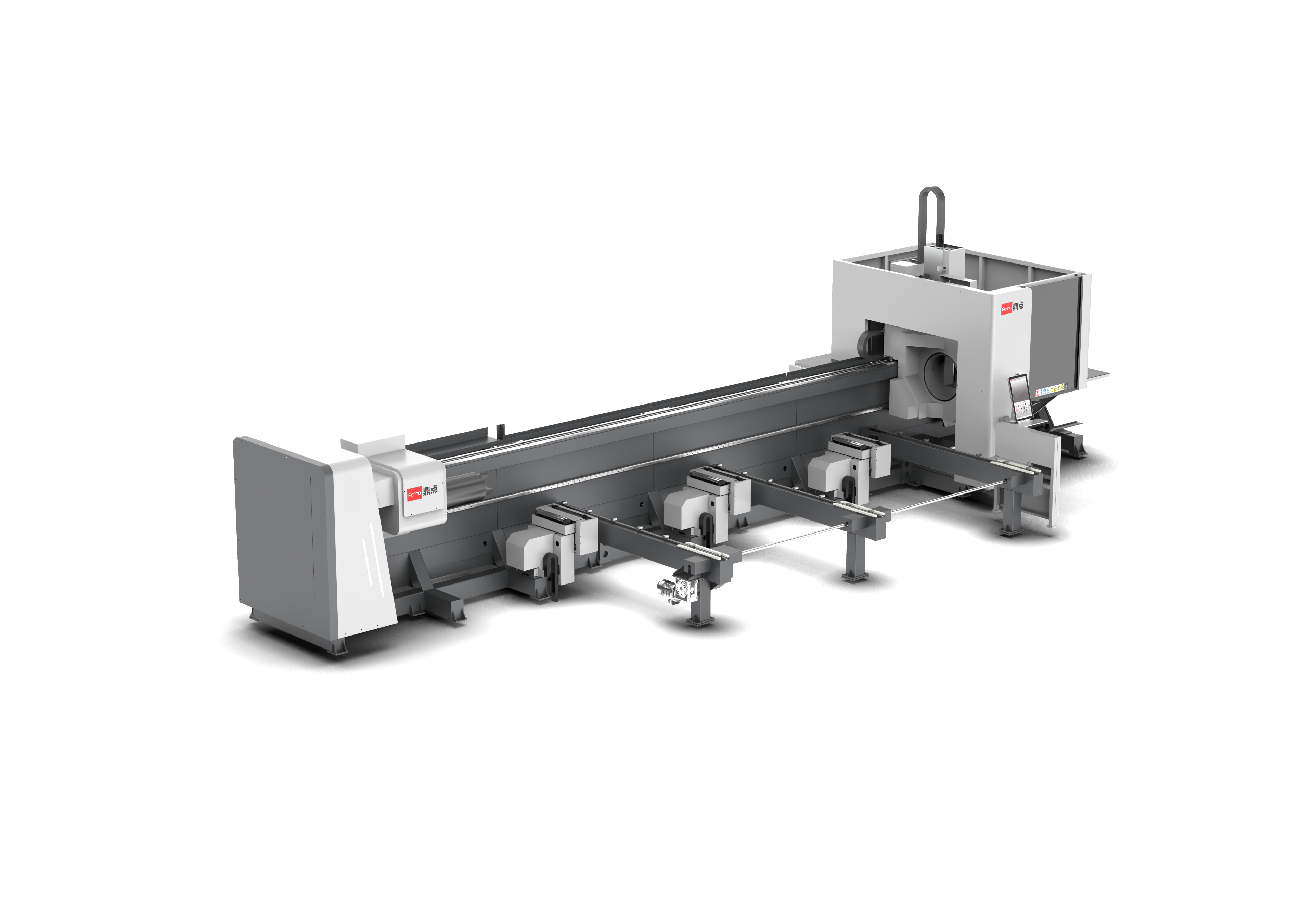

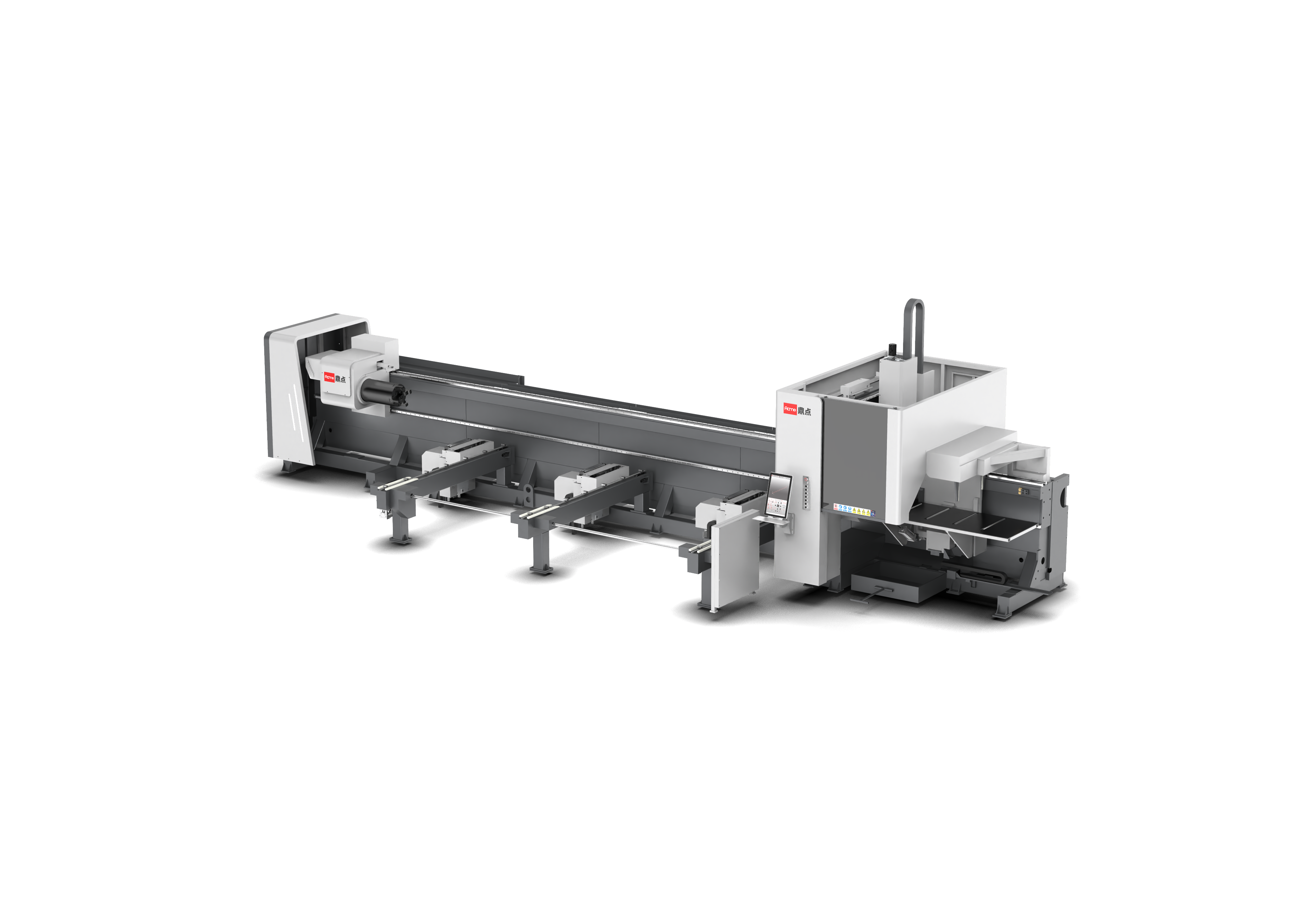

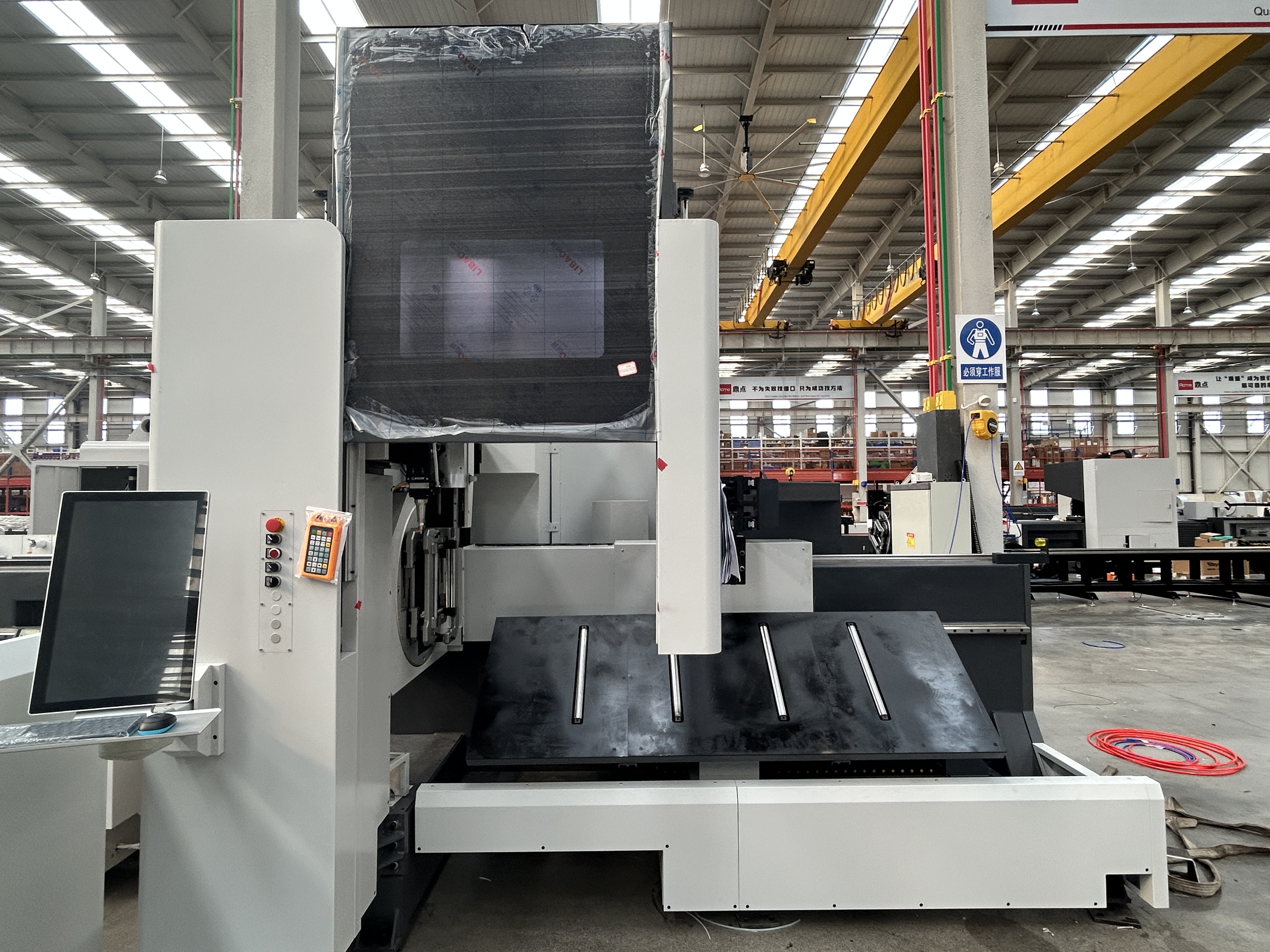

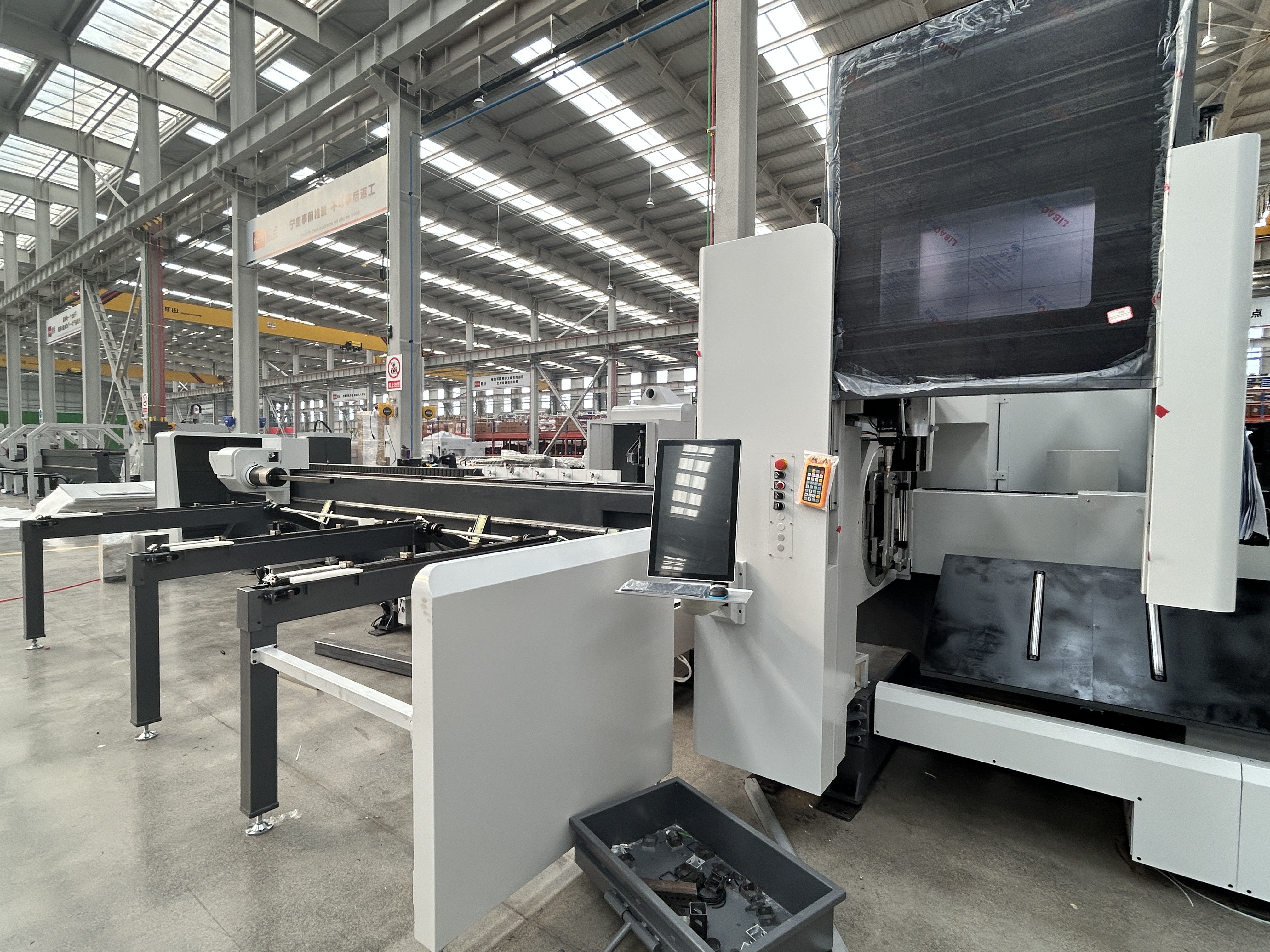

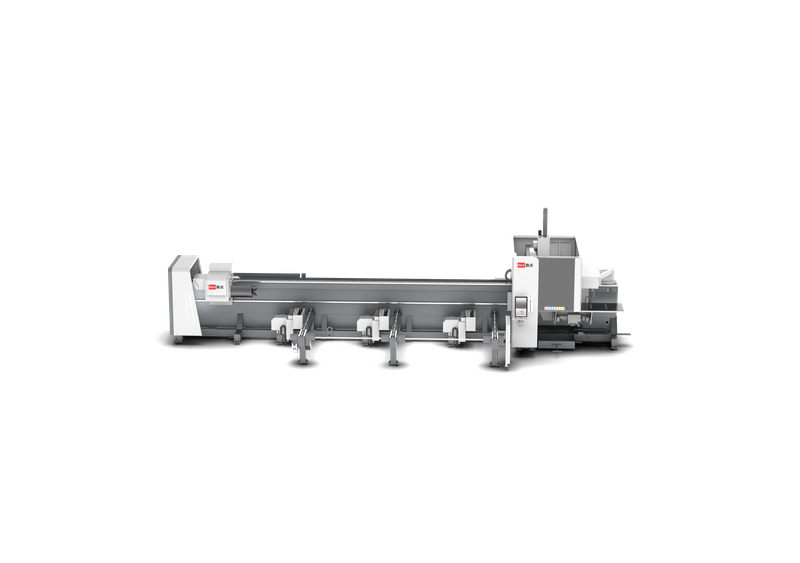

ACME TF Series Tube Laser Cutting Machine

Two chuck side-hanging tube cutting machine.
Power: 1KW-6KW.
Chuck: 260mm-360mm.
Loading system: semi-automatic/fully automatic loading.
Bevel cutting: within 45 degree.
Availability:
Quantity:
Inquire

  • LT-6026TFA

  • ACME

ACME TF series

Two Chuck Side-hanging Tube Cutting Machine

Machine Video




Simple Introduction

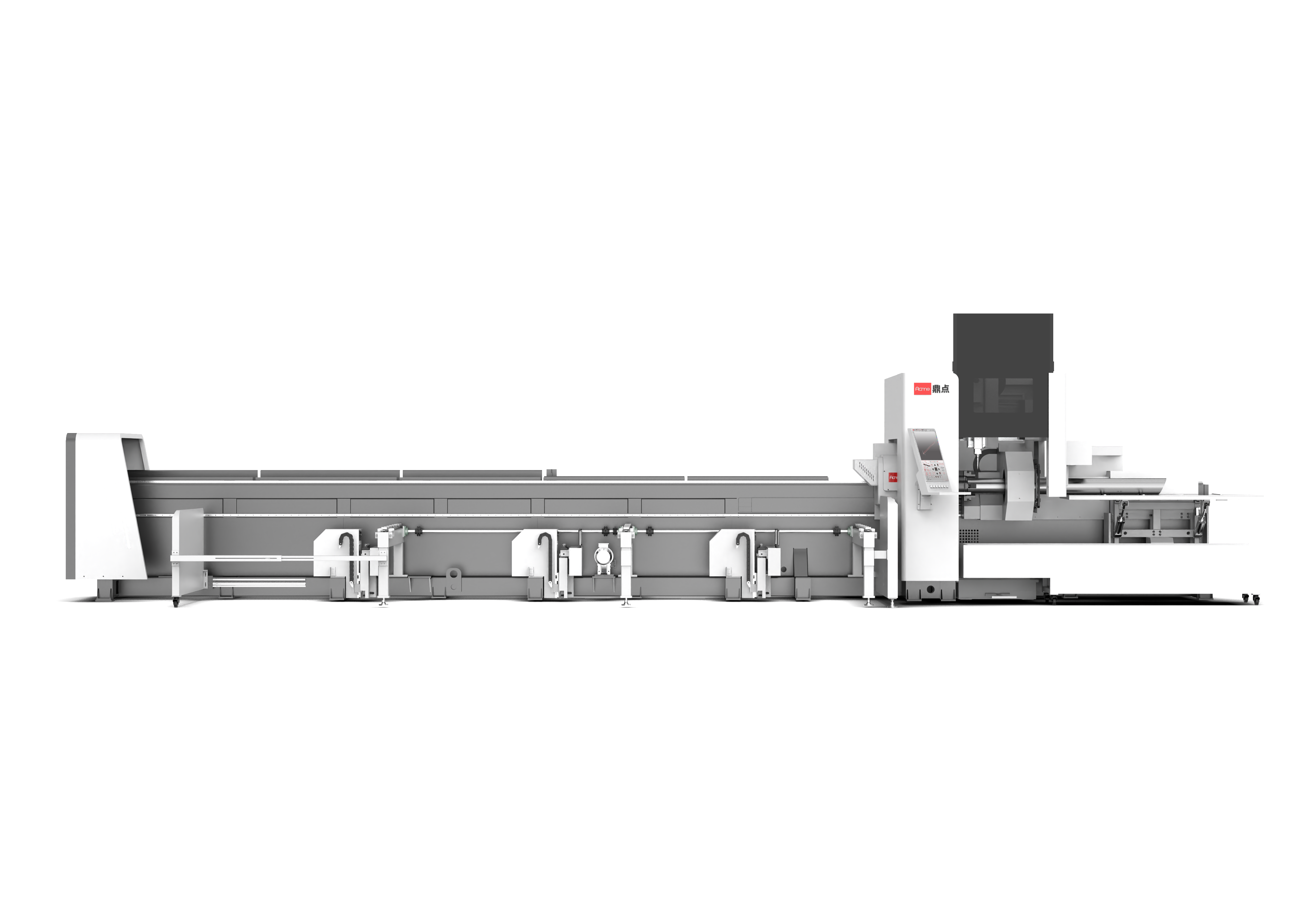

Machine bed




Side-hanging machine bed

Heavy duty machine bed design, welded in sections, high running accuracy and easy to load tubes.

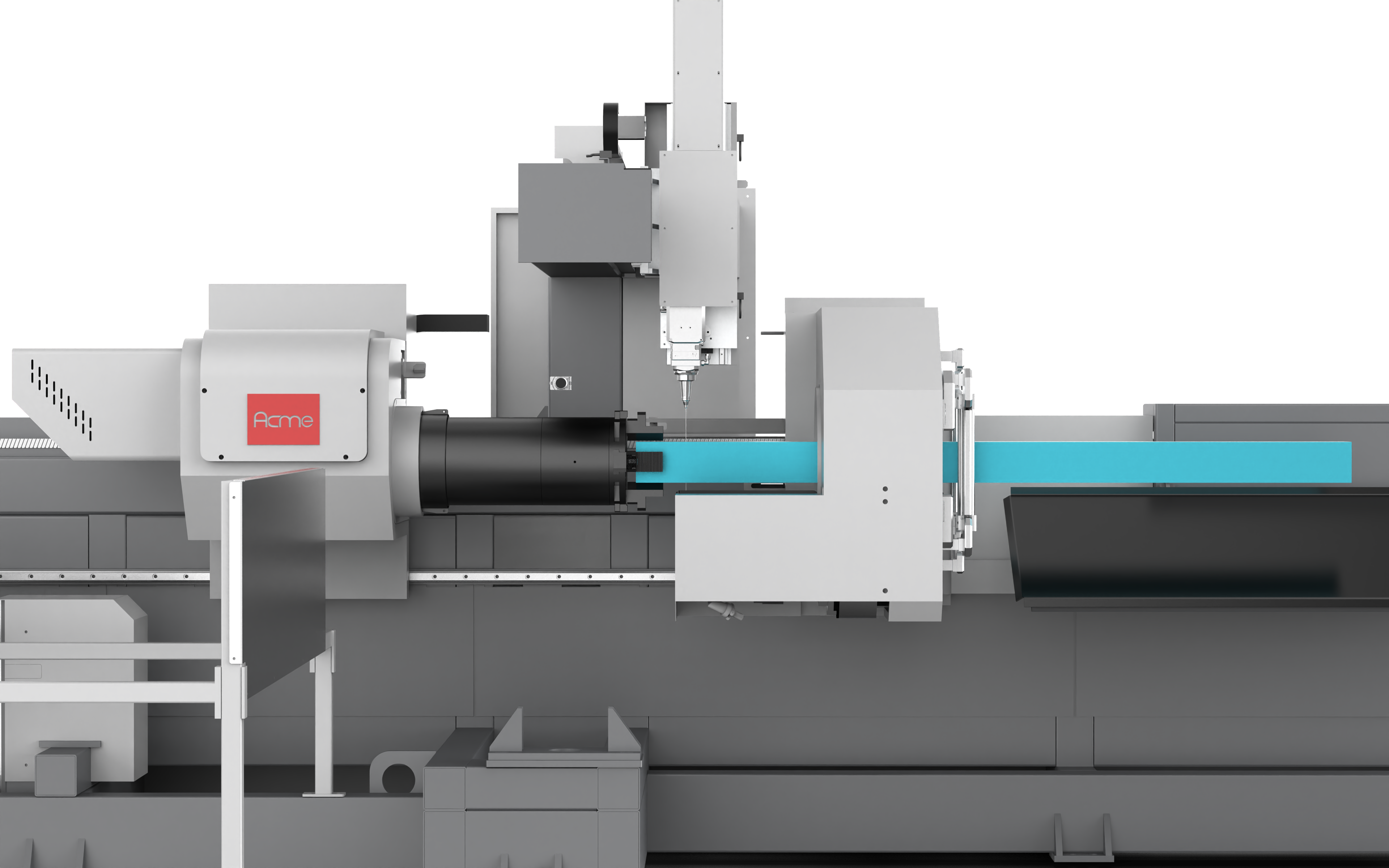

chuck tailing


Chuck

Pneumatic square chuck design, wider clamping range.

Adopt eight-cylinder structure, clamping is twice than ordinary chucks, ensure stable cutting.

Closed type, high dust proof level, easy to maintain.






伺服支撑

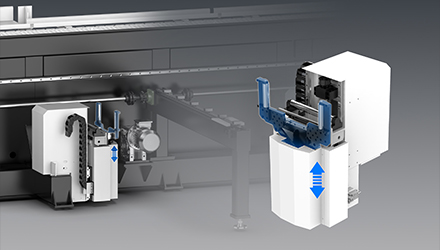

Servo support

Both loading and unloading positions are equipped with independent servo follow-up support to ensure stable cutting and high cutting precision.






bevel cutting

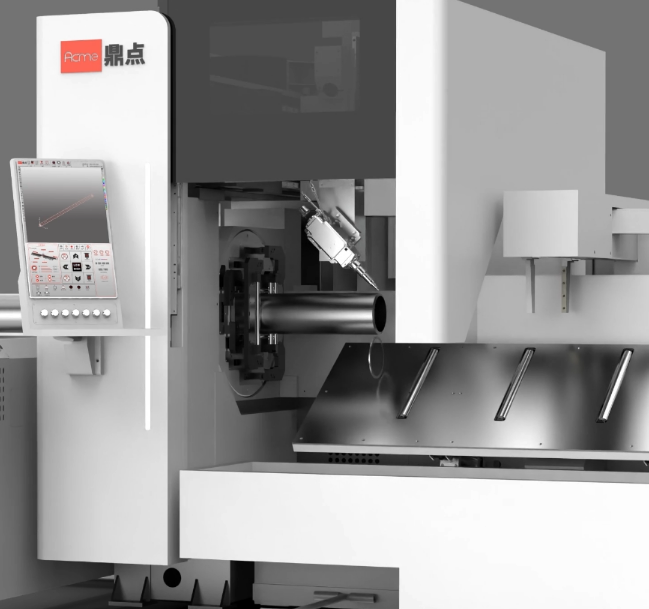

Bevel cutting

Optional, Acme own structure design of AB axis to achieve 45degree bevel cutting easily.


full load

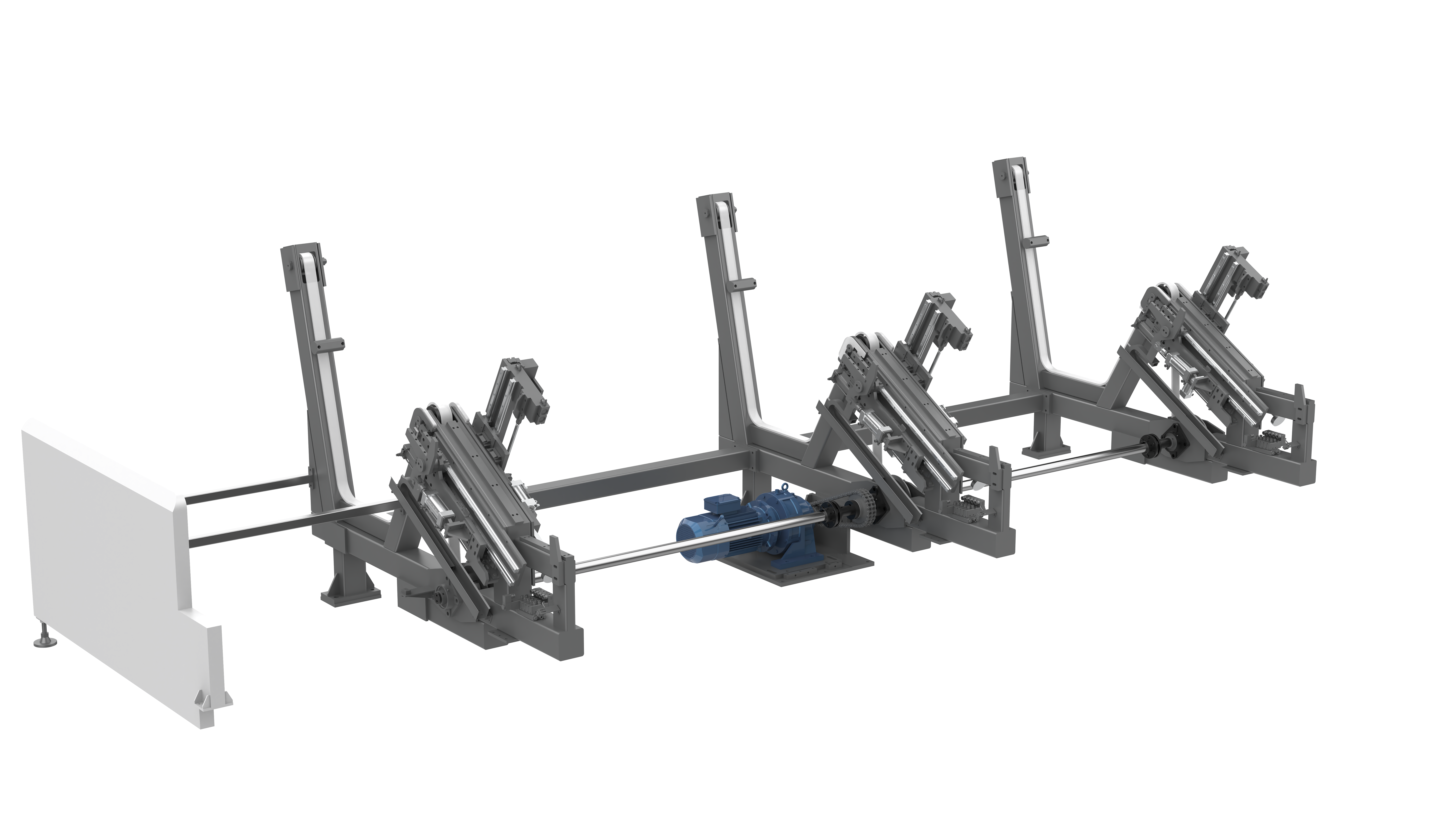

Fully Automatic Loading

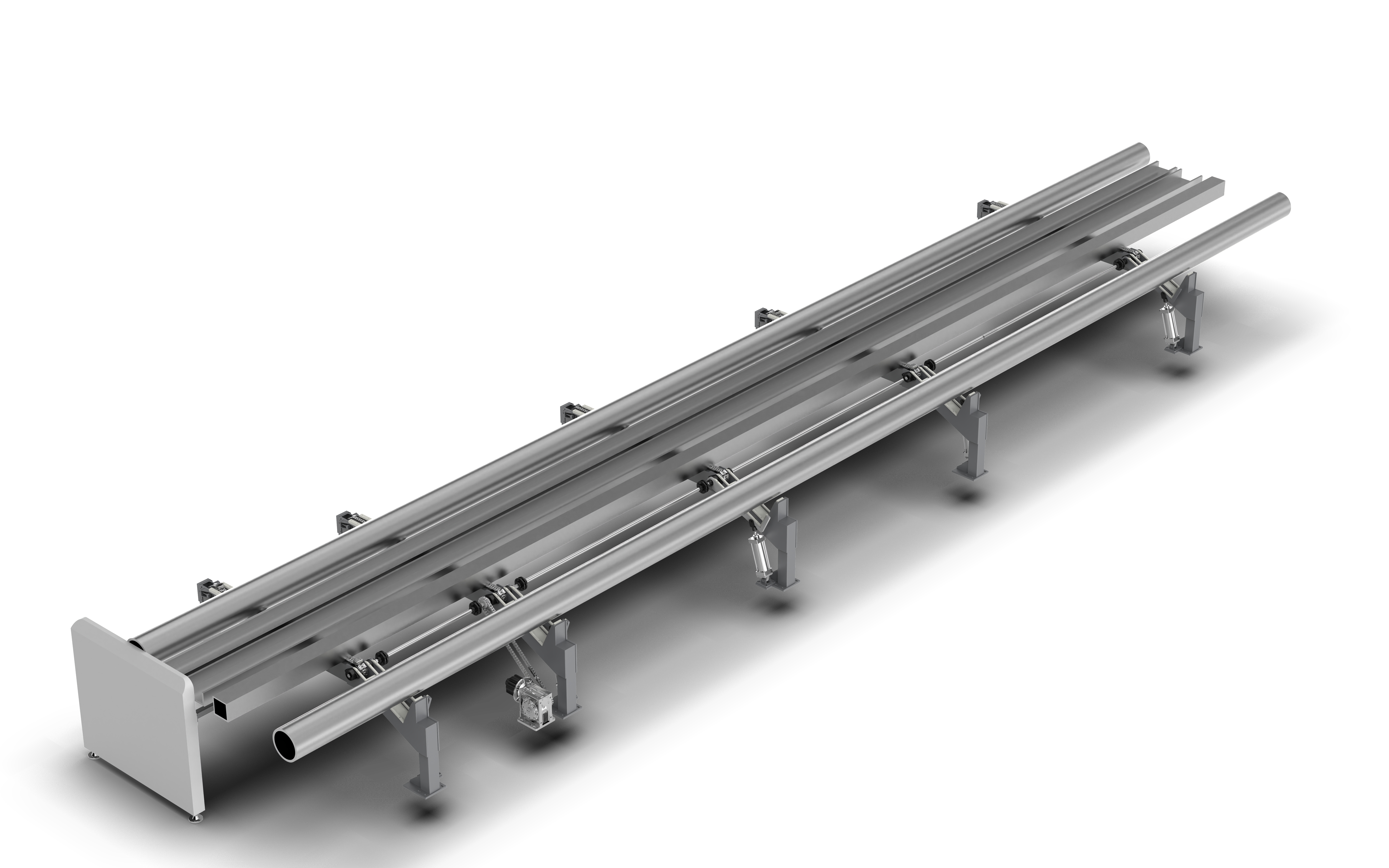

loadiing

Semi Automatic Loading

Optional loading system, it can load different tubes, improve loading speed and more efficient.


Machine Spec

Model
 6026TF 6036TF
Power 1KW-6KW 1KW-6KW
Chuck clamp ability   15-250mm 30-350mm
Max cuttiing length 6700mm 6700mm
Loading capacity
 150KG 380KG
Bevel cutting Optional Optional
Automatic loading  Optional Optional

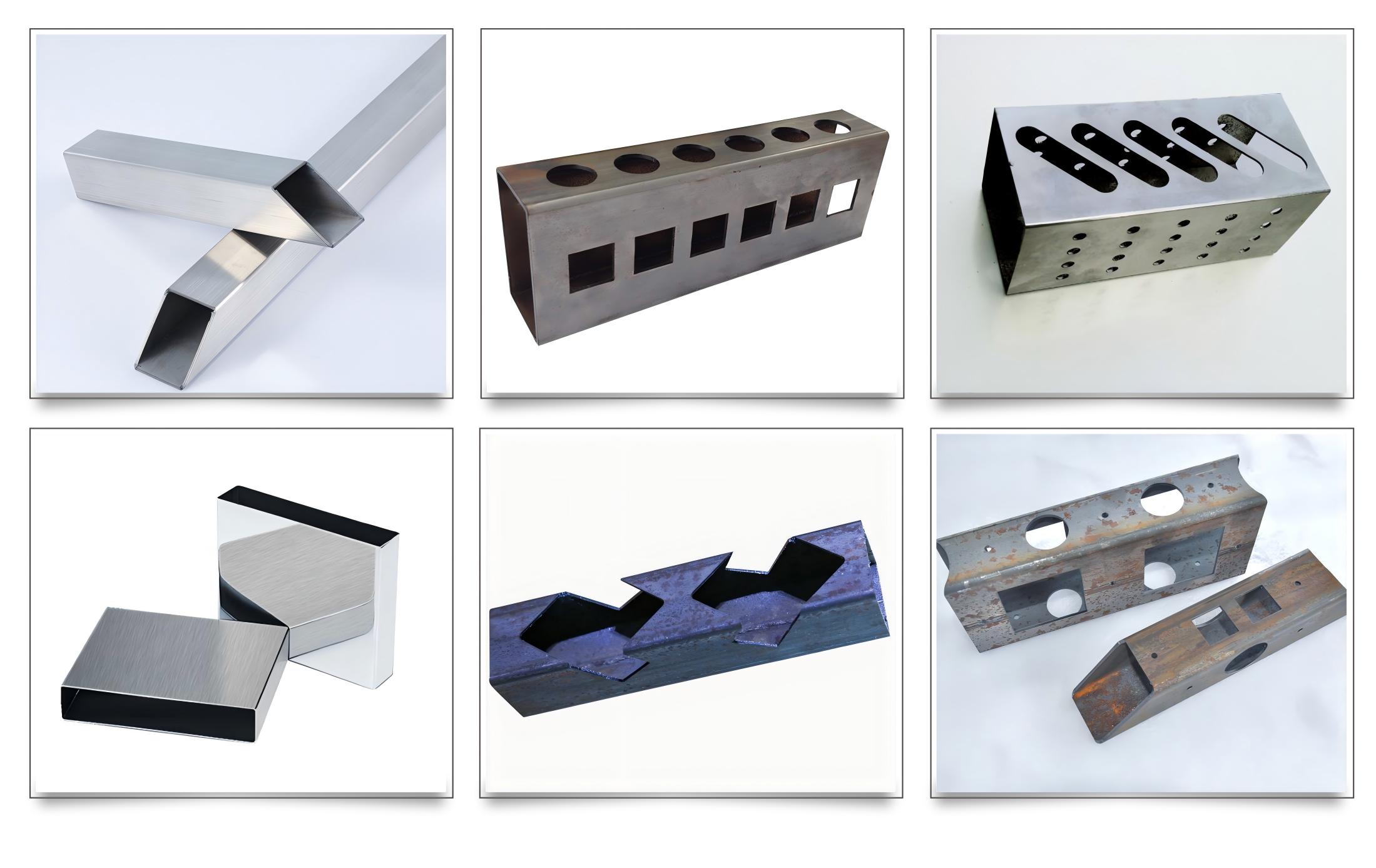

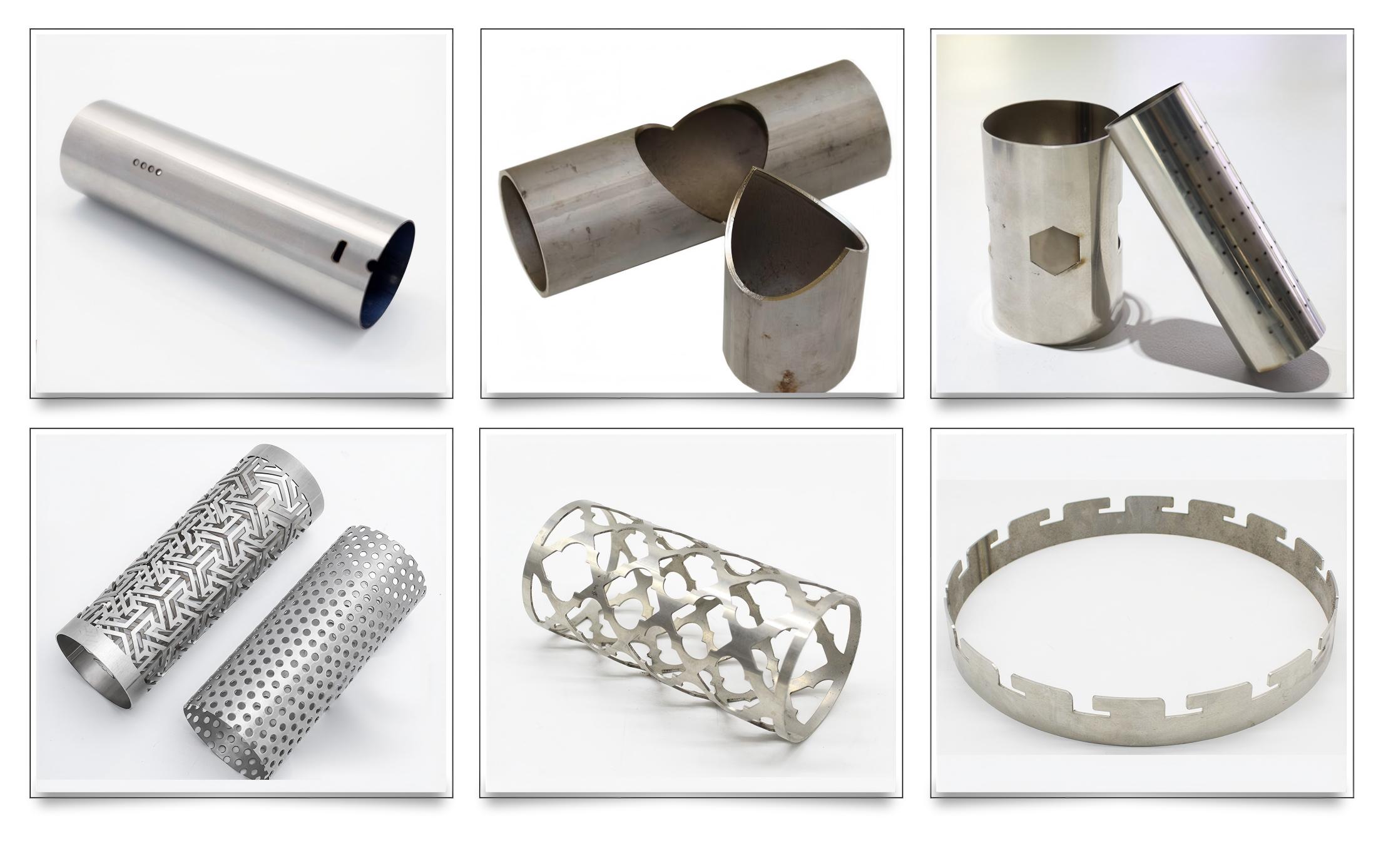

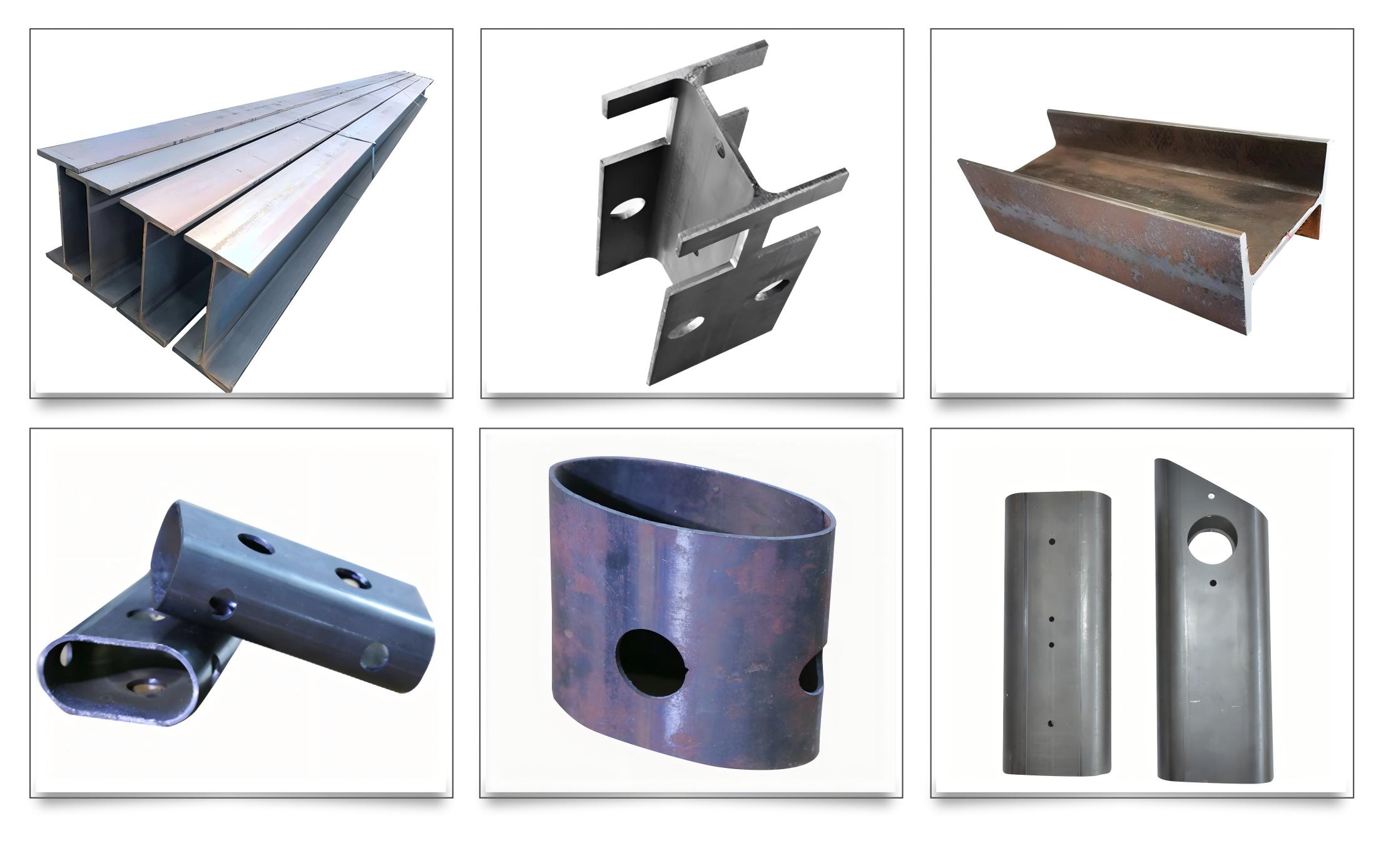

Cutting Sample

WPS图片(1) 2
3 4


Previous:
Next:
Tube cutting machine for metal Two chuck tube cutting mahcine Metal tube cutting
