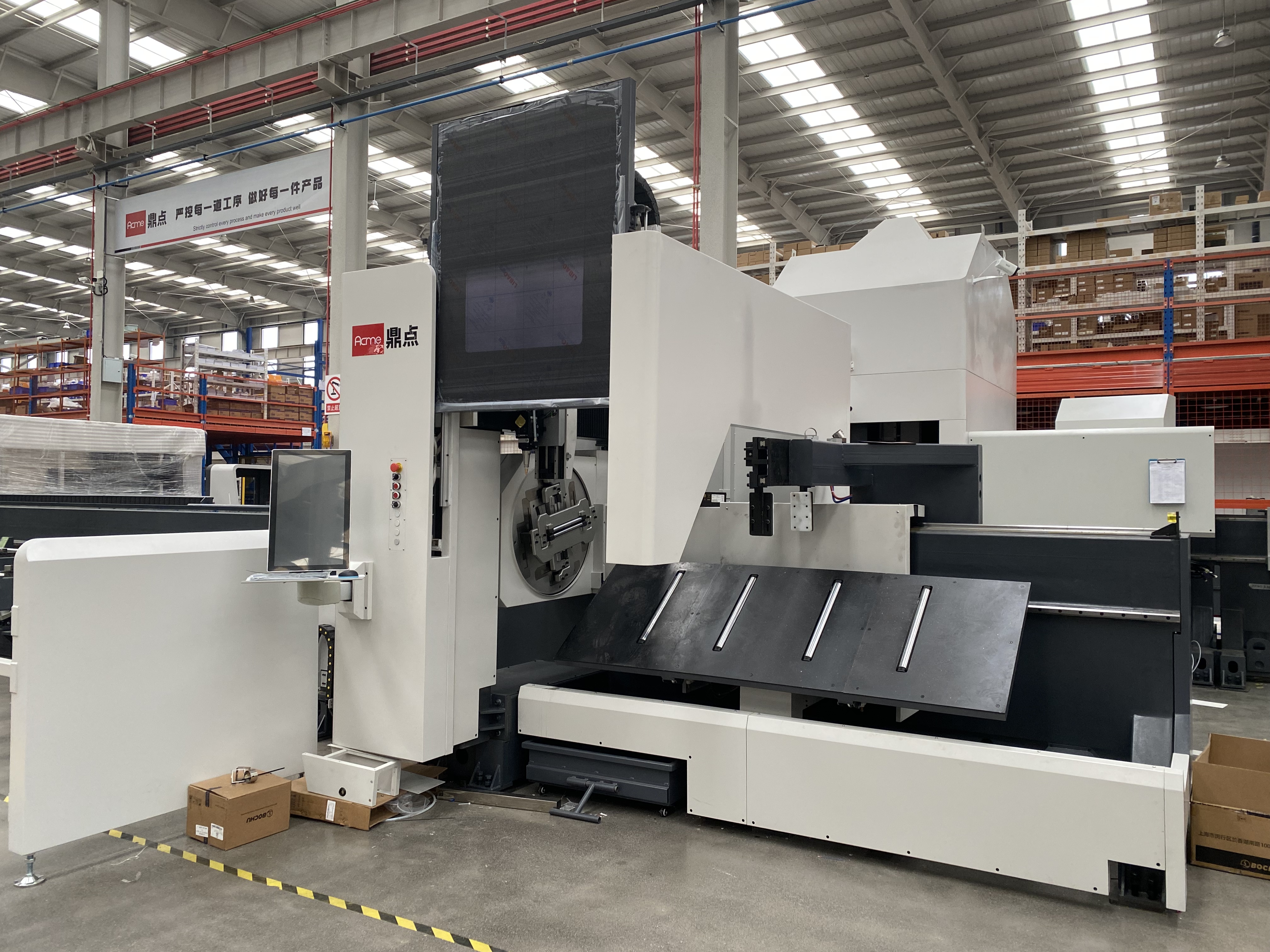

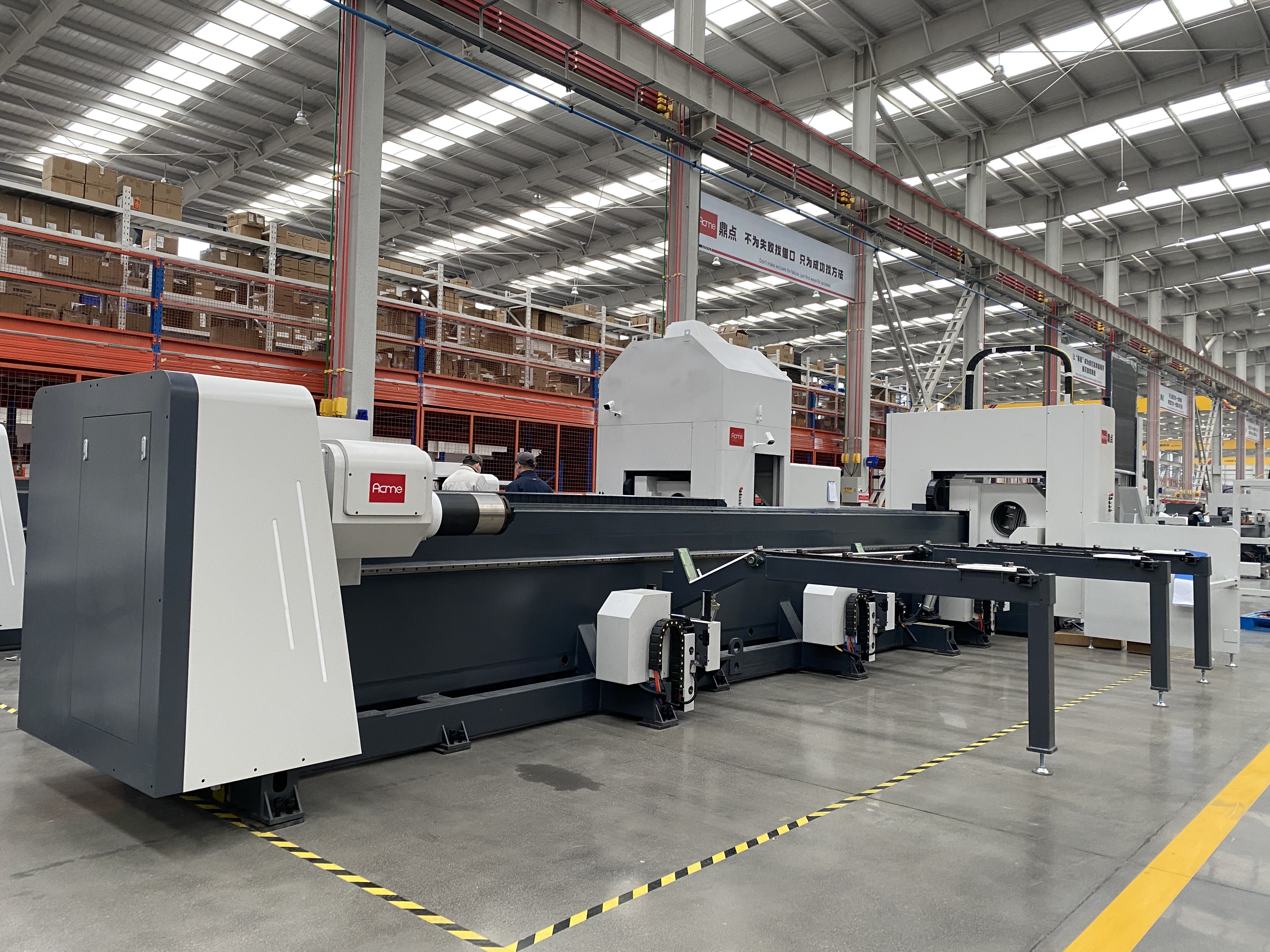

ACME LT-6026TFKA Side-mounted Tube Laser Cutting Machine
Power: 1KW-6KW.
Chuck: 260mm-360mm.
Loading system: semi-automatic/fully automatic loading.
Bevel cutting: ± 45 degree.
| Quantity: | |
|---|---|
-
LT-6026TFKA
-
ACME
ACME LT-6026TFKA Two Chuck Side-mounted Laser Tube Cutting Machine
Machine Video
Machine Details

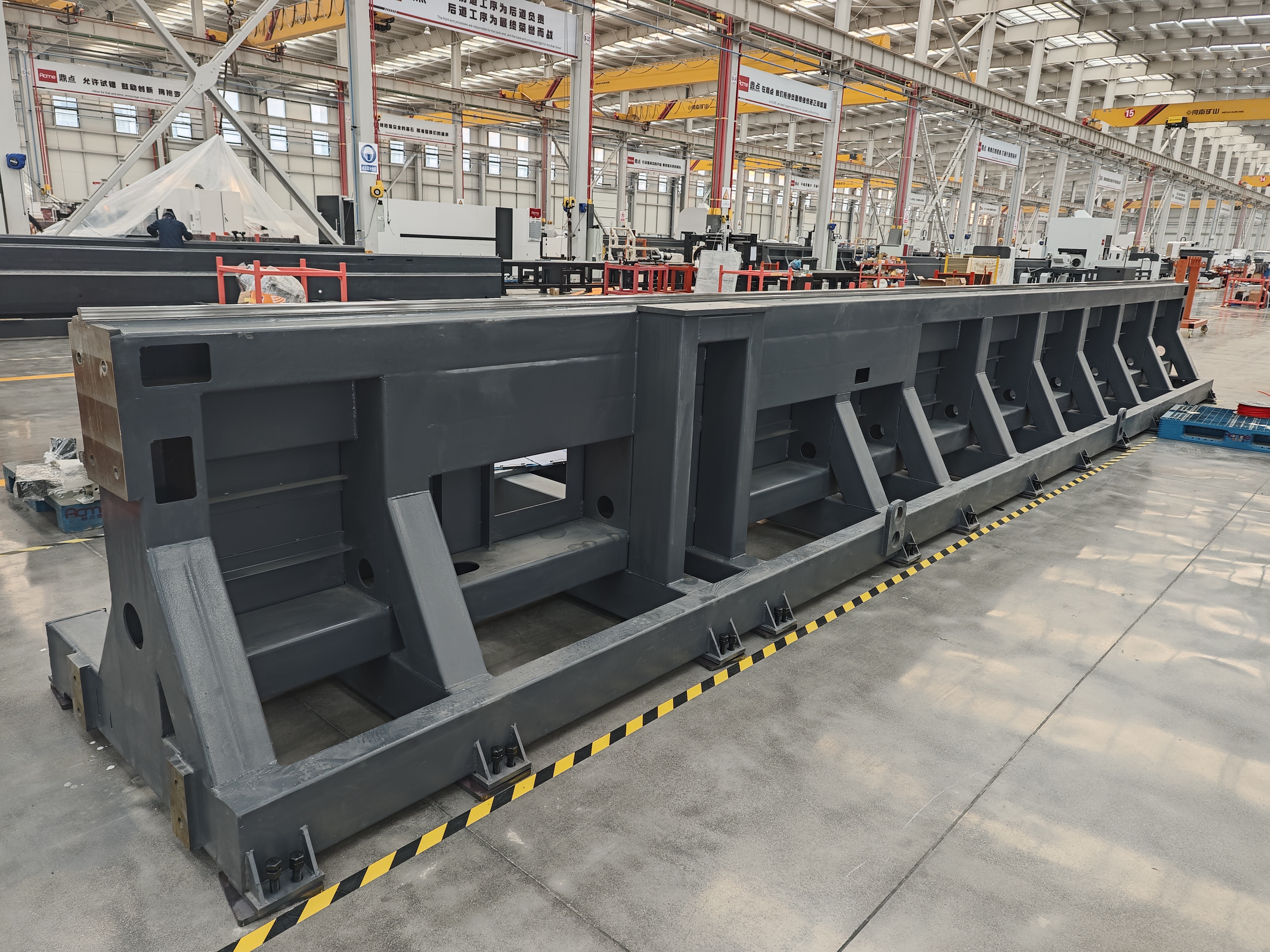

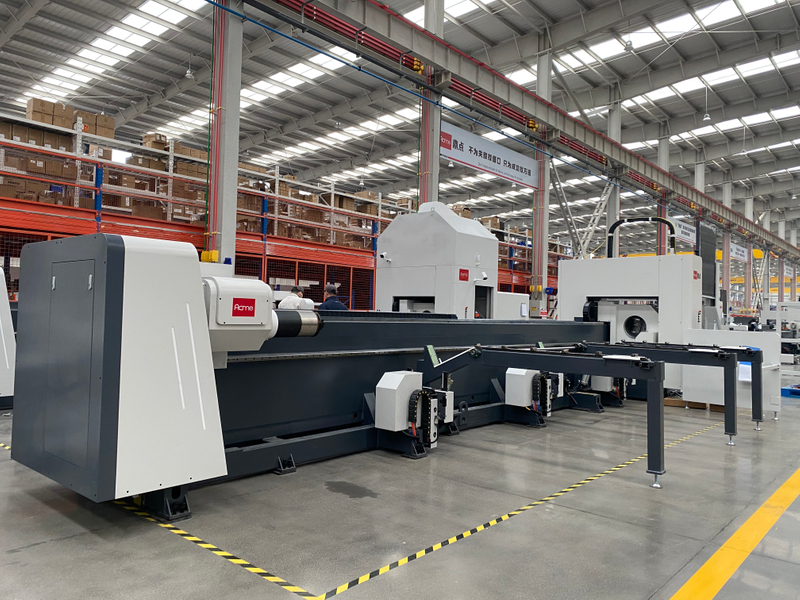

Side-mounted machine bed
·Facilitates material loading and unloading, improving automation efficiency
·Simplifies maintenance, reducing after-sales costs

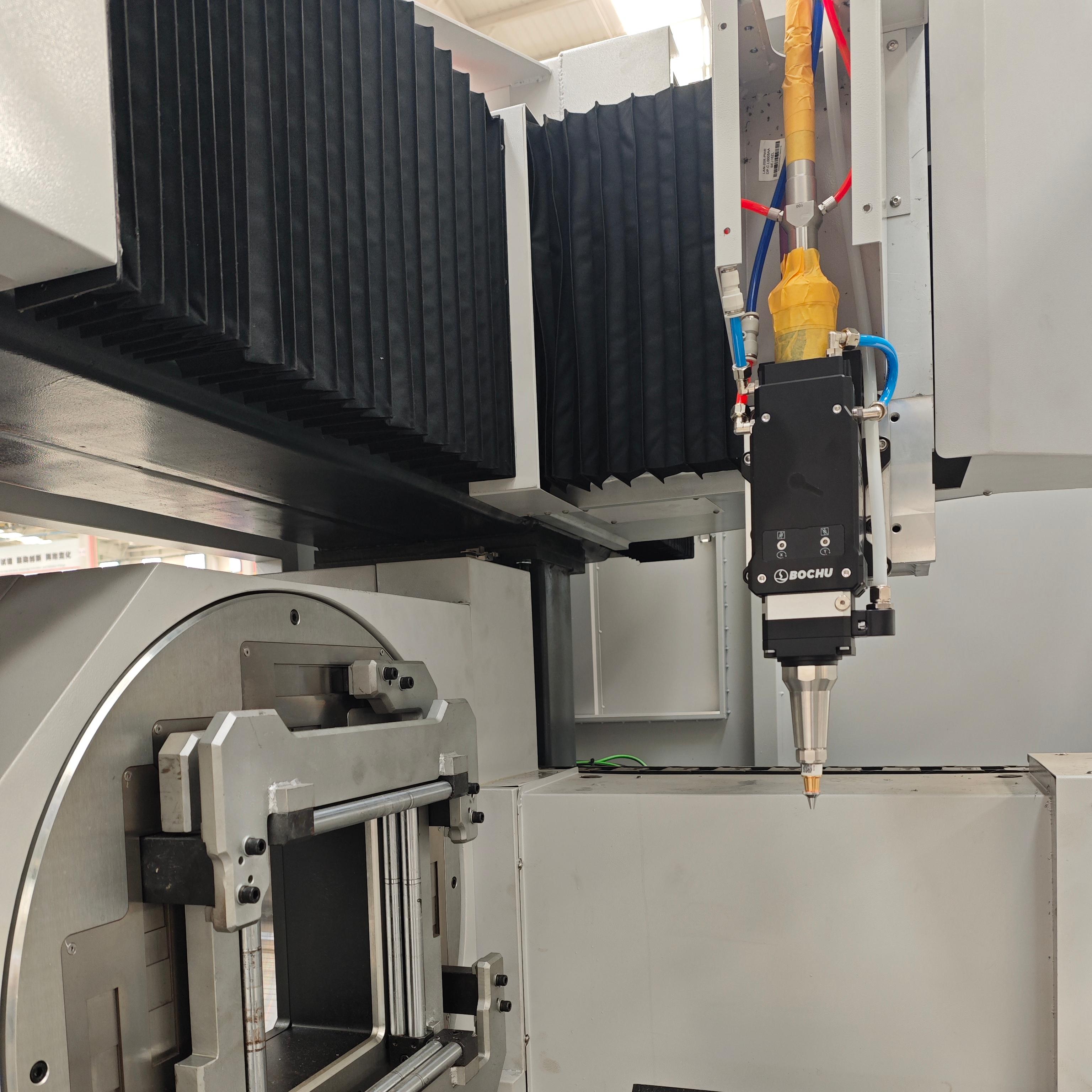

Patented bevel cutting design: Little Y-axis
·Beveling using a standard cutting head, easy to overhaul
·Reduce wear on the chuck and guide rails, to extend service life.
·Chuck remains stationary while cutting head moves back and forth, improving cutting efficiency.

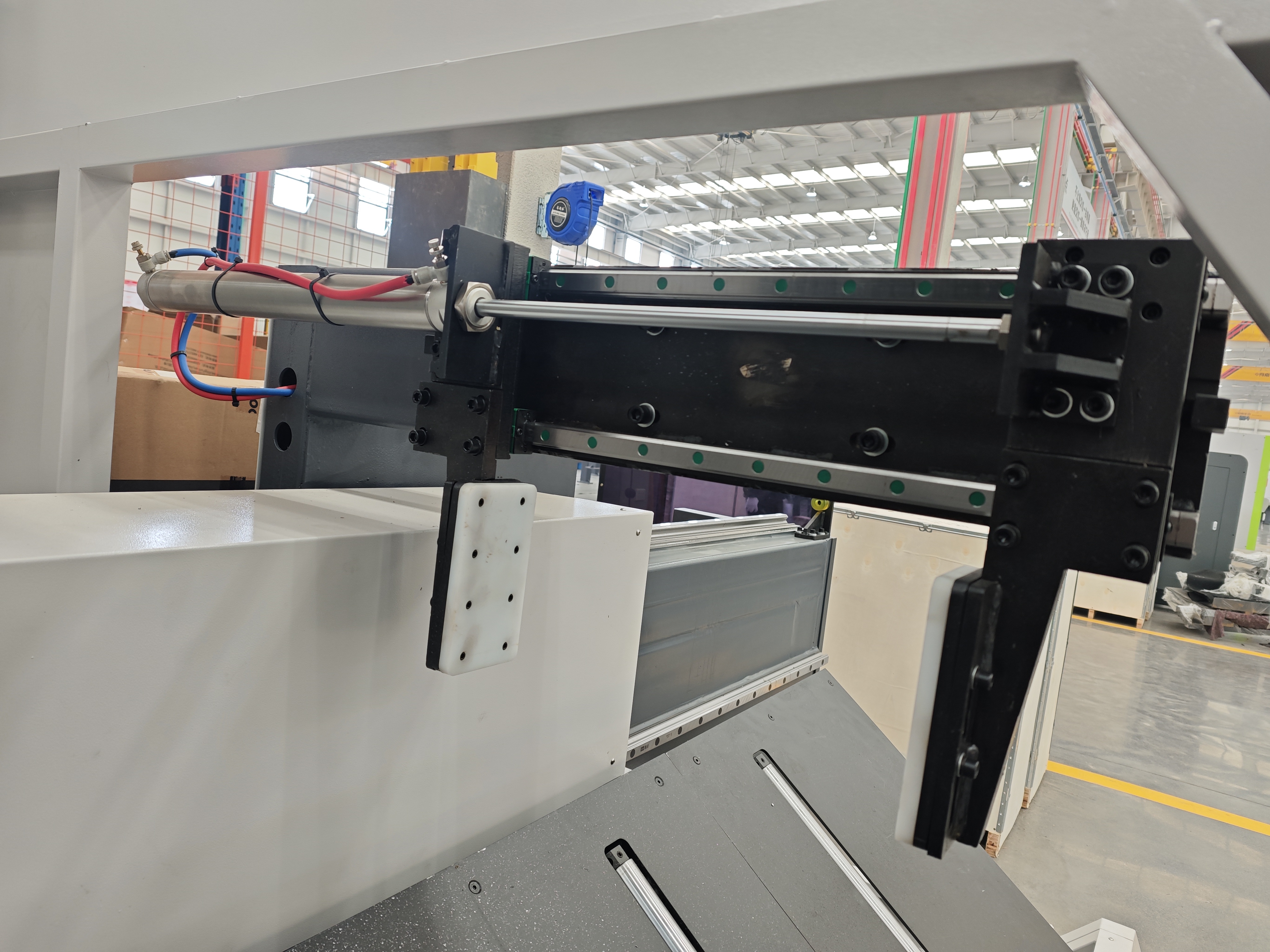

Cylinder clamp
·During off-center cutting, clamping tubes together with chuck, to achieve short tail cutting
·When cutting a long pipe, hold the pipe in place to prevent shaking.

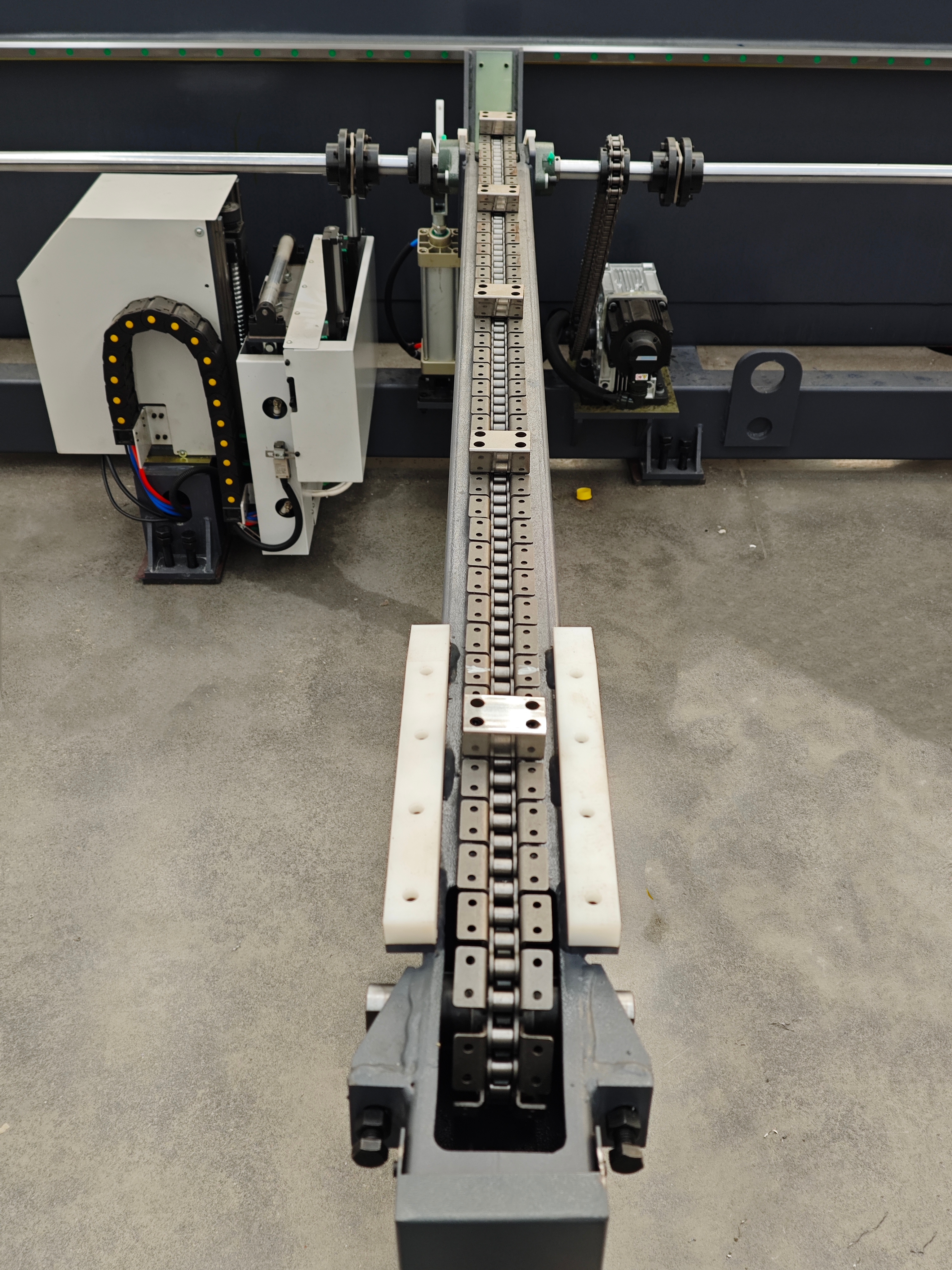

Self-produced automaticloading rack
·Driven by an electric motor, chain structure, strong load-bearing capacity up to 1.4 tons
·Anti-collision rubber strip design protects loading rack from deformation
·Adjustable stacked tubes quantity
Main Parameters
| Model | LT-6026TF | LT-6036TF |
| Power | 1-6KW | 1-6KW |
| Chuck size | 15-250MM | 30-350MM |
| Max cutting length | 6700MM | 6700MM |
| Loading capacity | 150KG | 380KG |
| Tail | ≥65MM | ≥65MM |
| Beveling | Optional | Optional |
| Automatic loading | Optional | Optional |

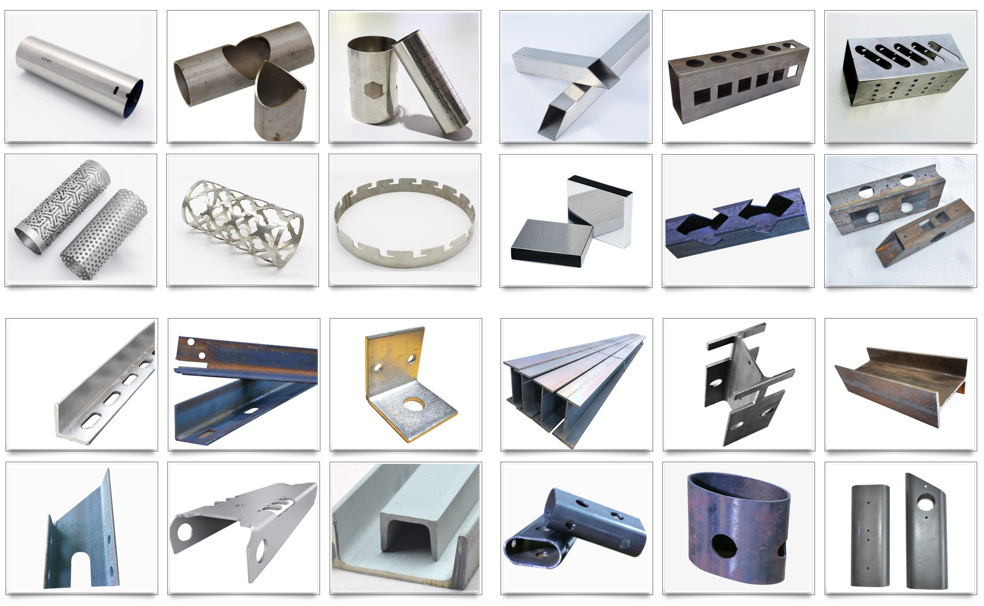

Samples cutting

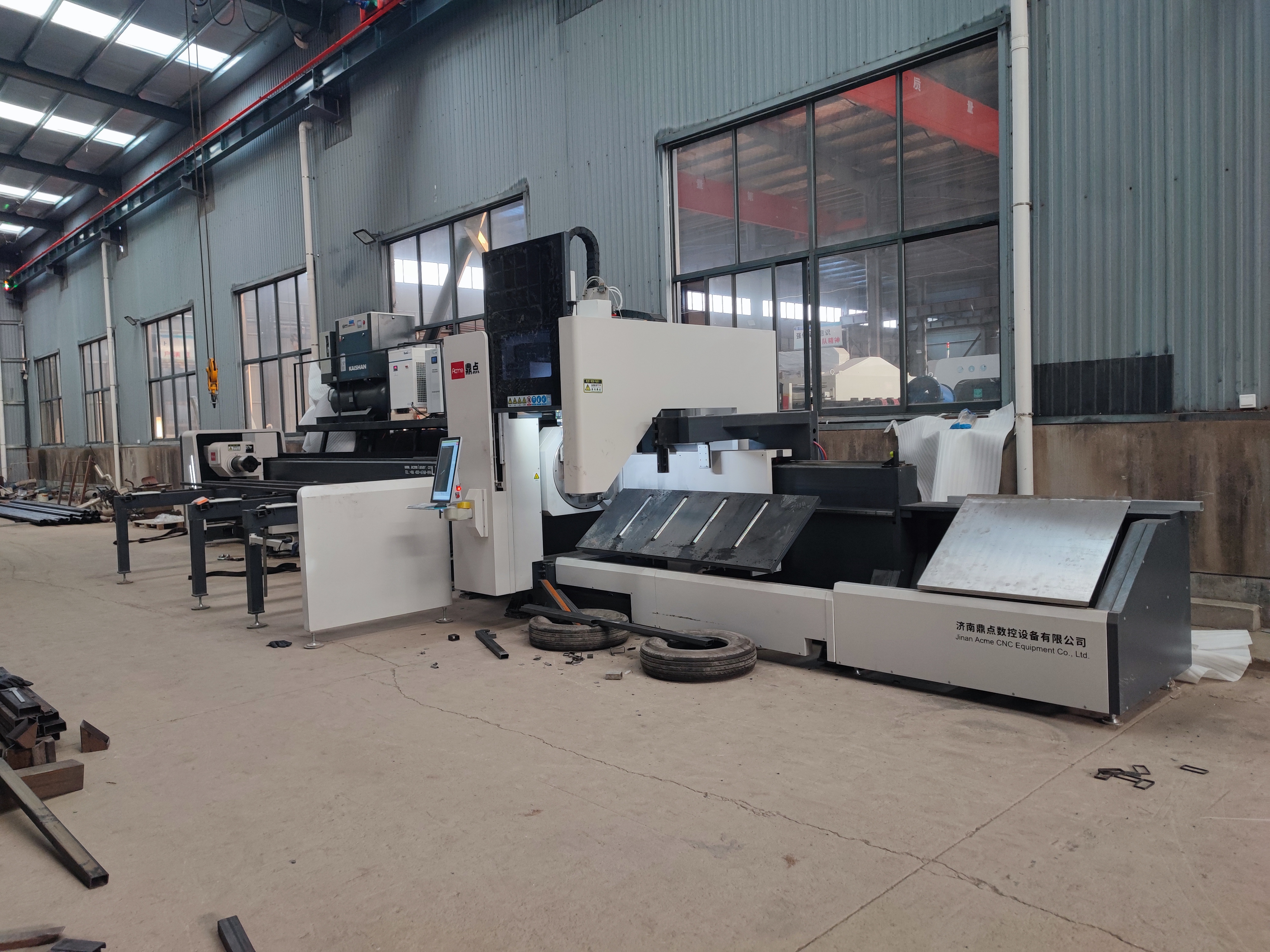

Customer Sites

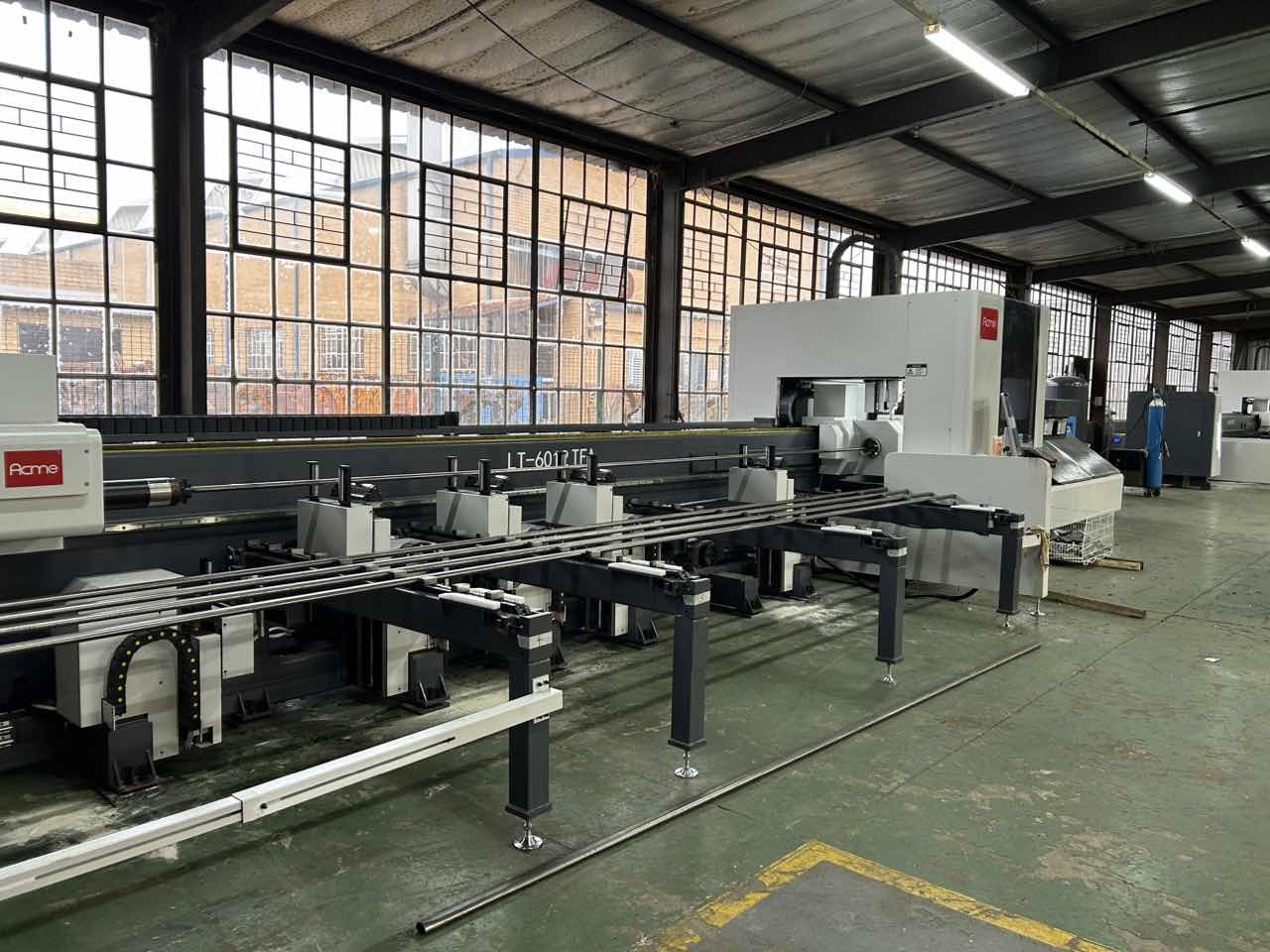

TF series in South Africa
TF series in China

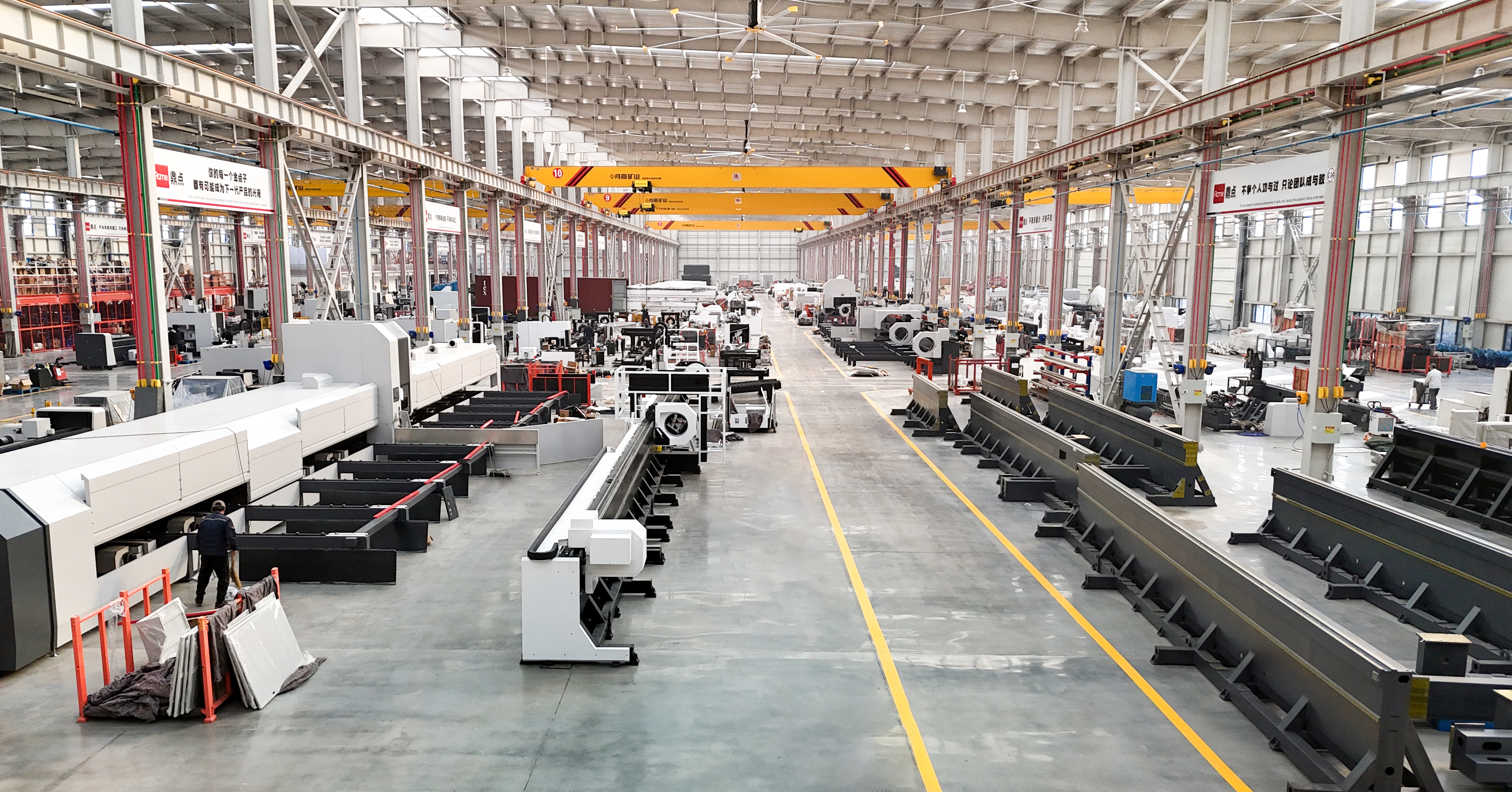

Company Profile
·Founded in 2016, ACME Laser is a national high-tech enterprise integrating R&D, production and sales of laser cutting equipment.
·As a representative of industrial transformation and upgrading, it has been reported by CCTV-1's Morning News and Xinhua News Agency.
·Products are exported to more than 70 countries and regions worldwide, including the EU, the United States, Australia, and Southeast Asia.
·Annual output: 1,000+ sets
