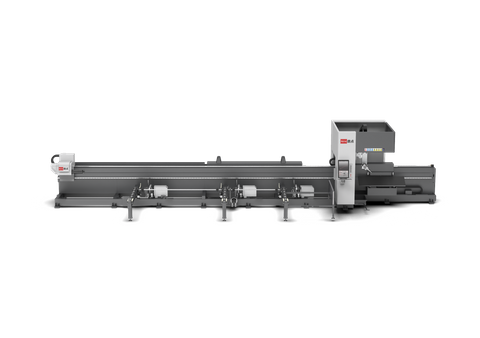

ACME LT-6012VFA High Speed Tube Laser Cutting Machine

Share to:

ACME LT-6012VFA High Speed Tube Laser Cutting Machine

Two-chuck laser tube cutter.

1-6KW and bevel cutting function optional.

120mm and 180mm optional.

Achieve zero tailings.

Cutting square, round, rectangular, elliptical, and flat elliptical pipes, as well as channel steel, H-beams, angle iron, and other irregularly shaped metal materials.

Availability:

Quantity:



Inquire

Model:
LT-6012VFA
Brand:
ACME

Product Description

ACME LT-6012/18 VFA Model

Video Introduction

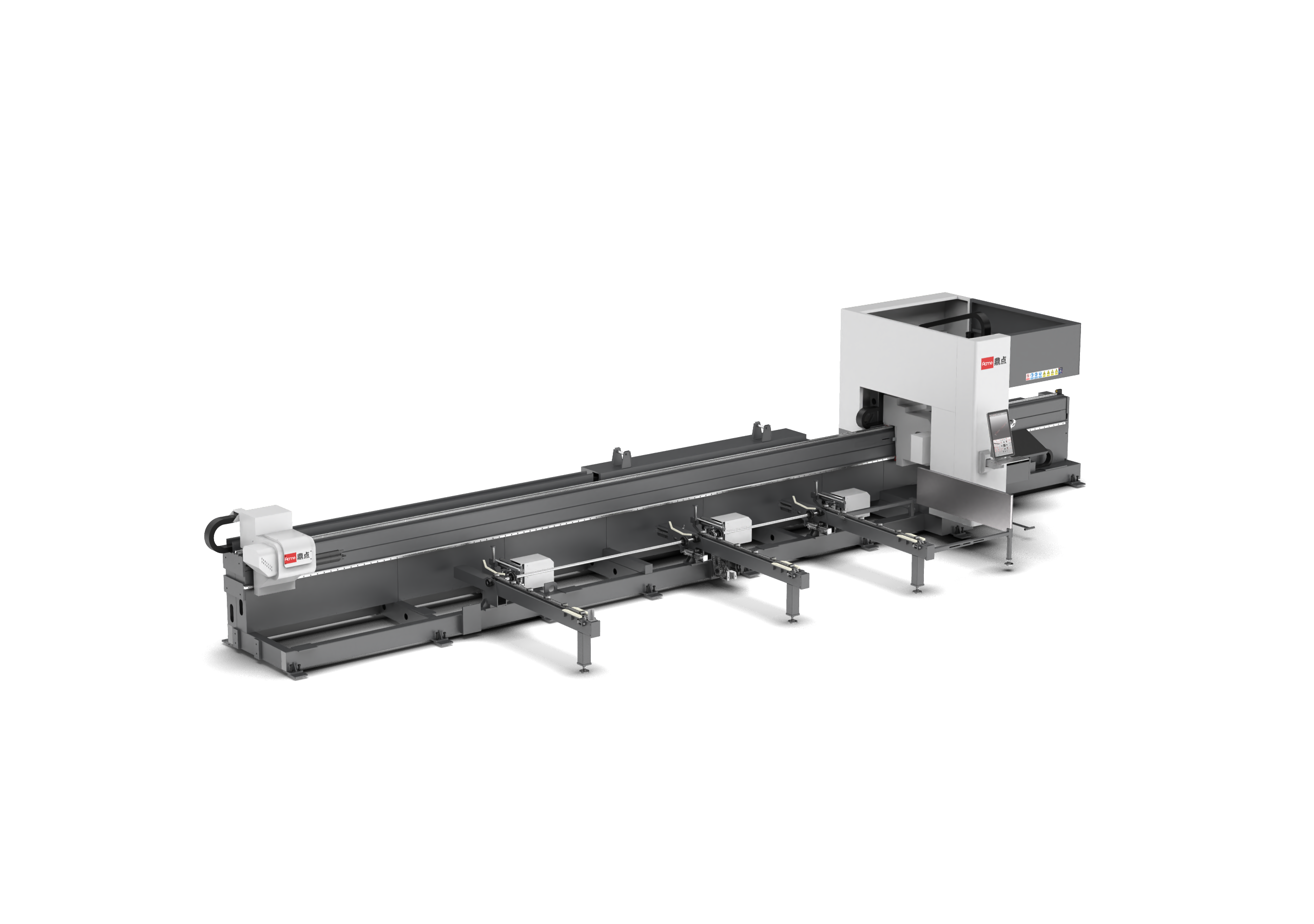

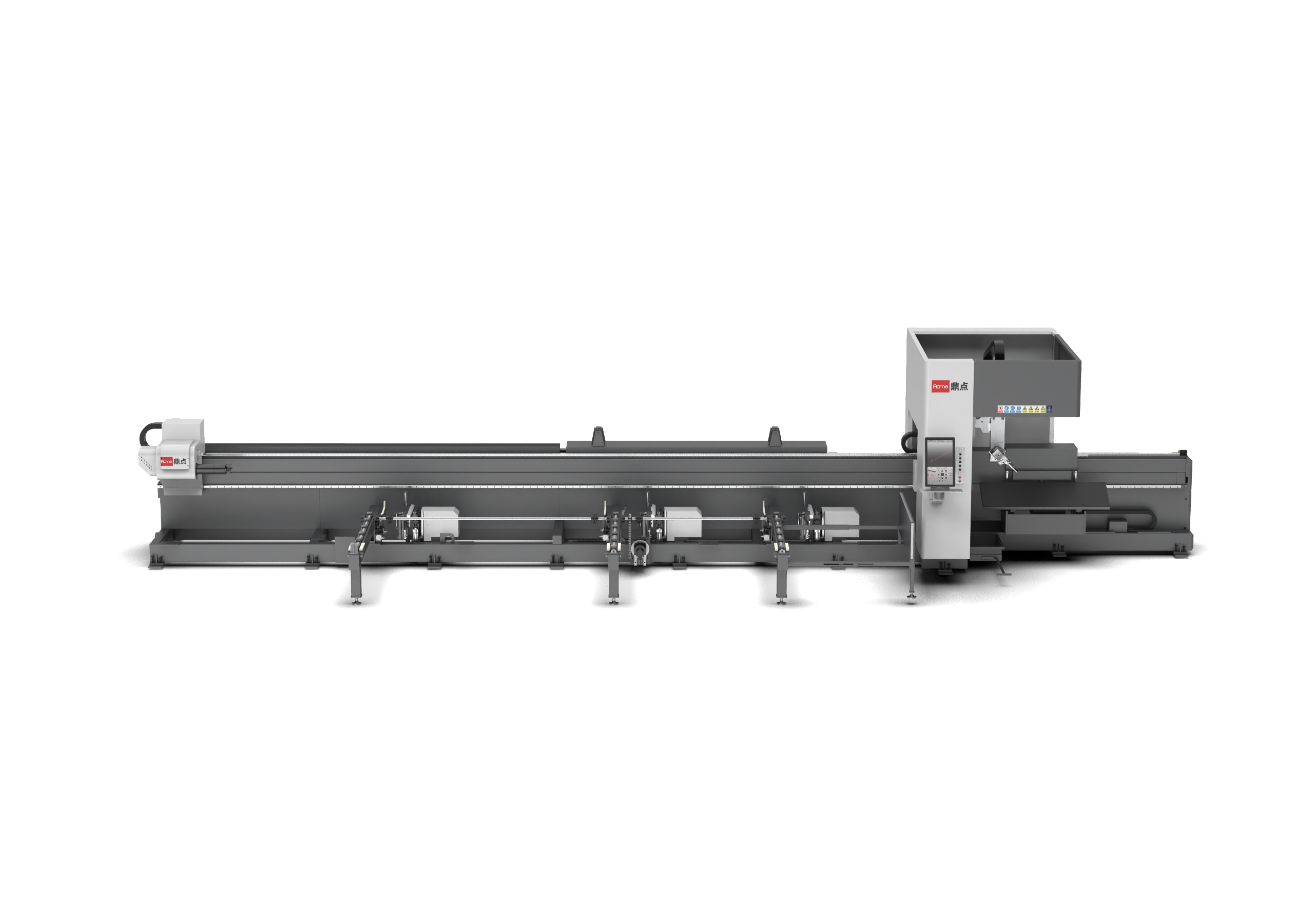

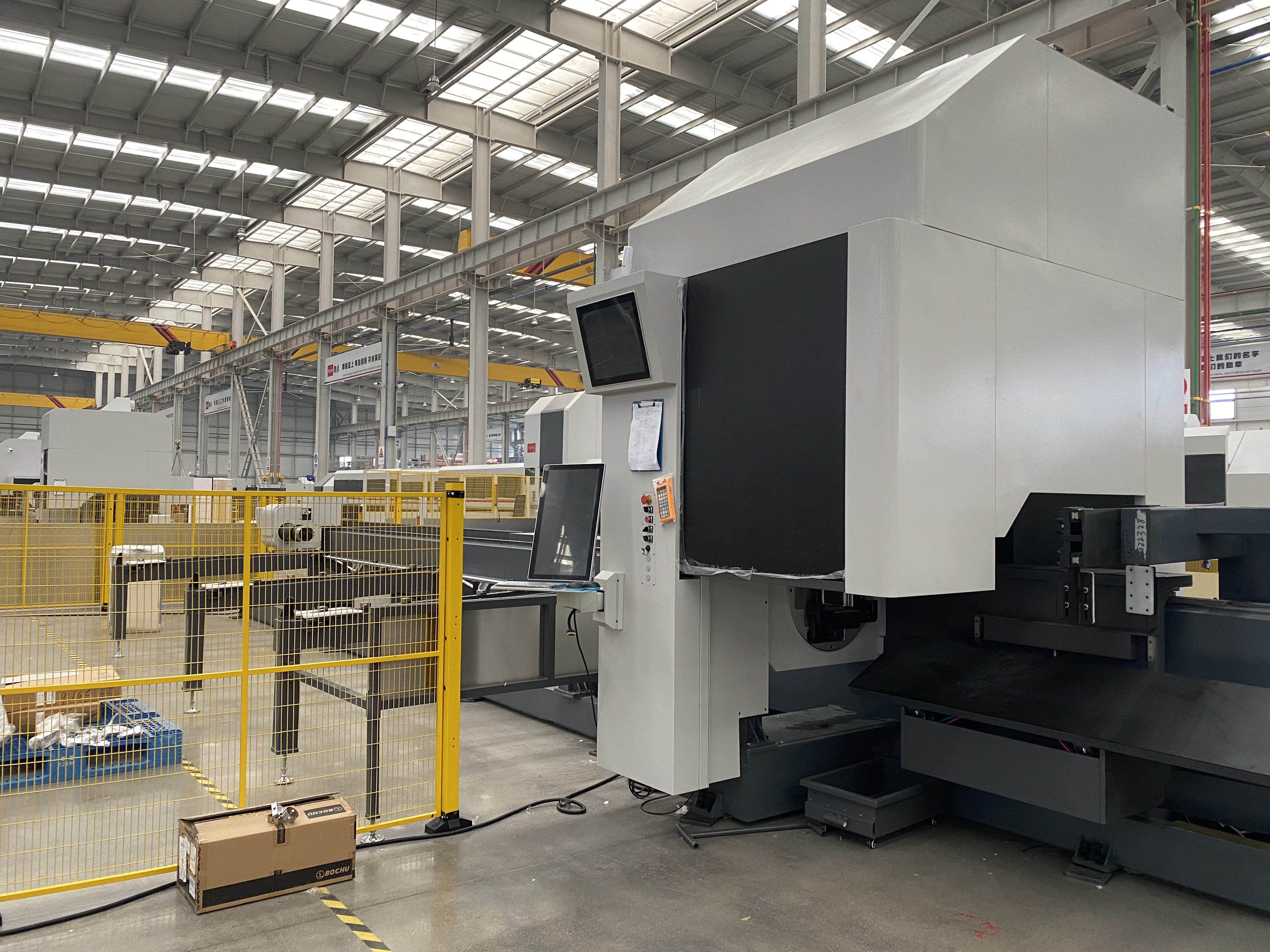

Machine Appearance

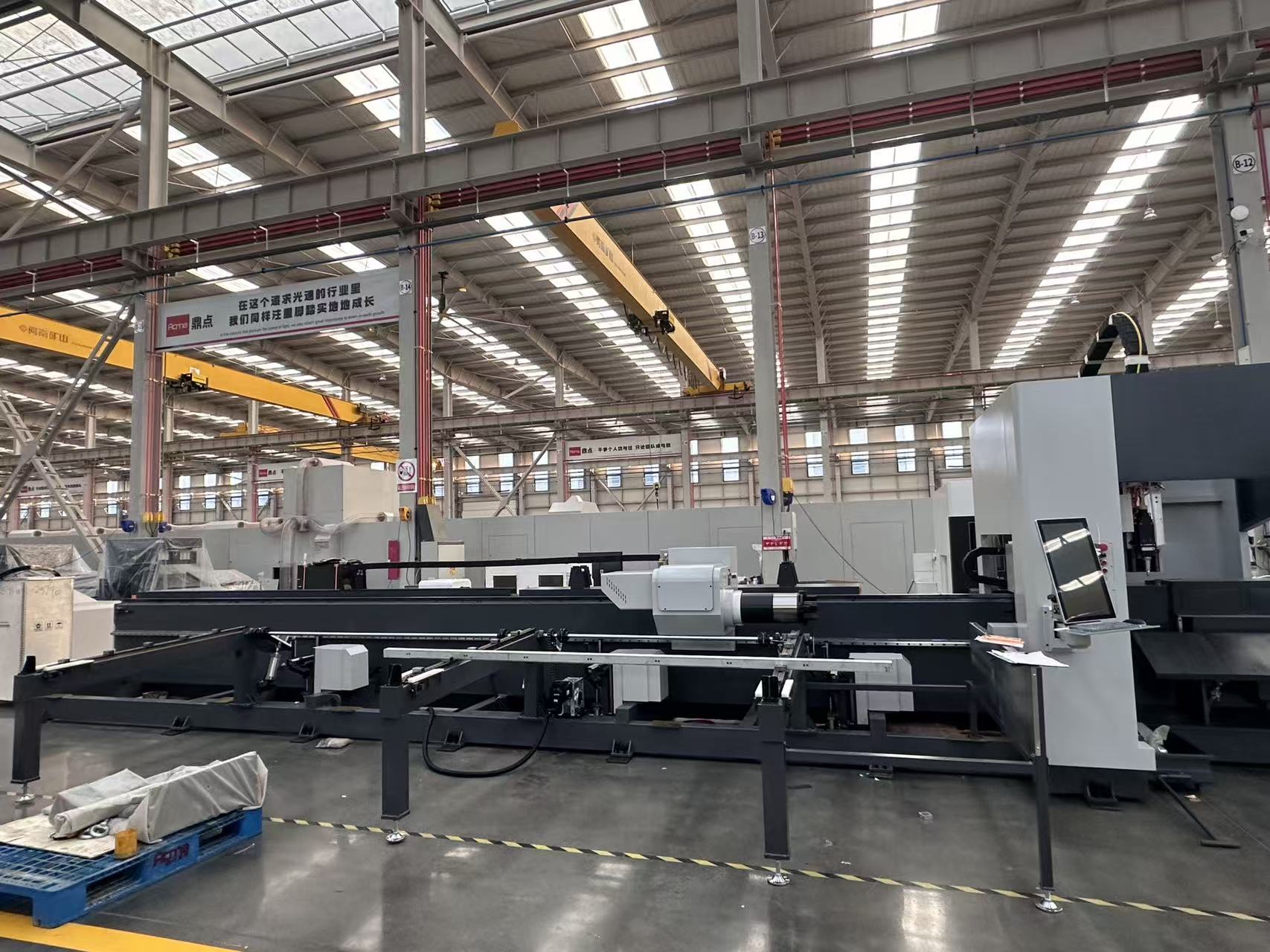

Machine Bed Independently Developed and Processed

Utilizing a mortise-and-tenon-style tube-plate welding structure—combined with proprietary welding techniques, secondary aging treatment, and precision machining on a large-scale gantry milling machine—the design ensures the machine tool possesses exceptional vibration resistance and high rigidity.

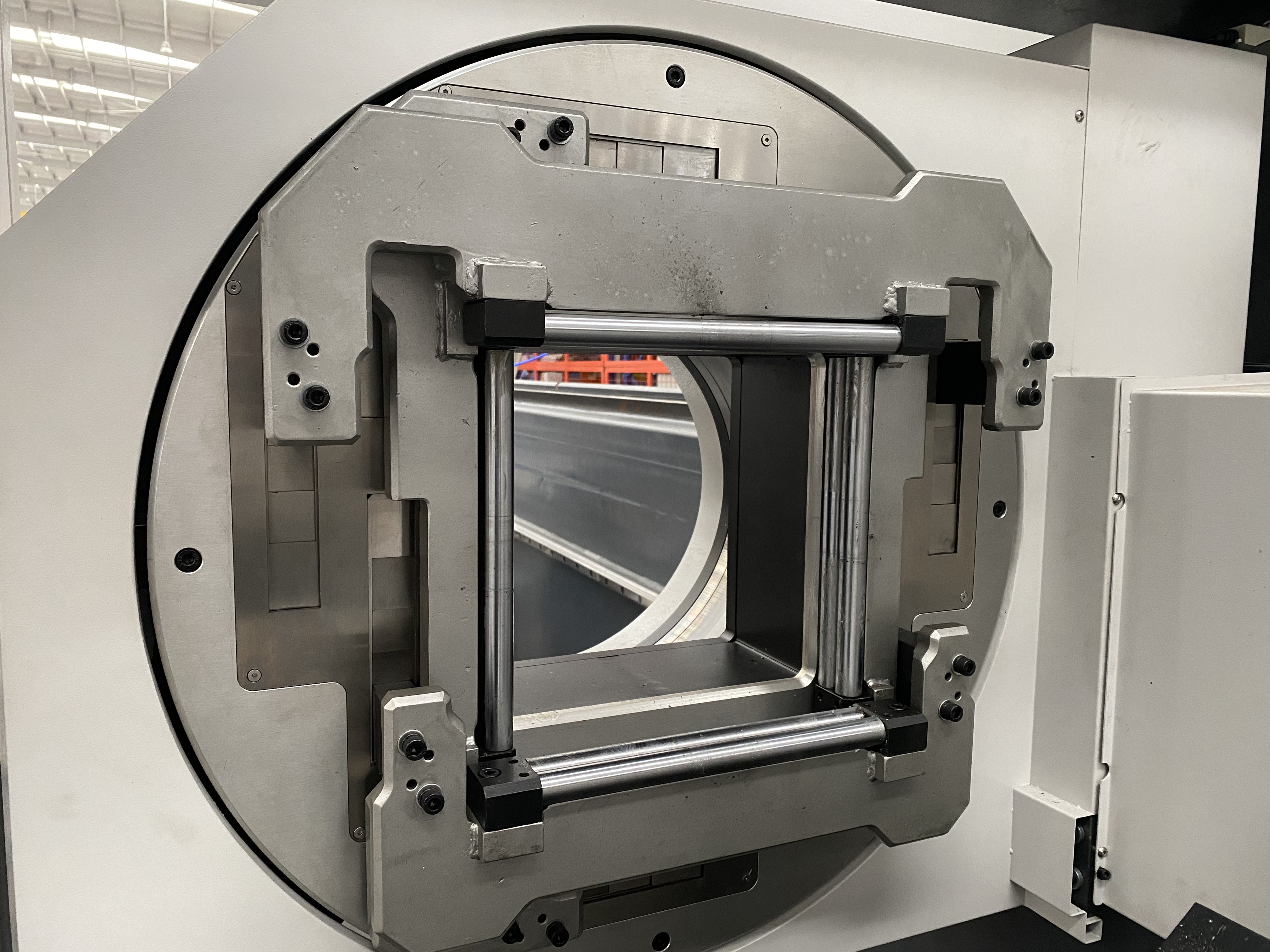

全封闭卡盘180mm

Patented Innovative Chuck

Possesses full independent intellectual property rights.

Features independent R&D and design, coupled with high-precision manufacturing.

Simple in structure and easy to install, widely used for clamping various types of pipes and profiles.

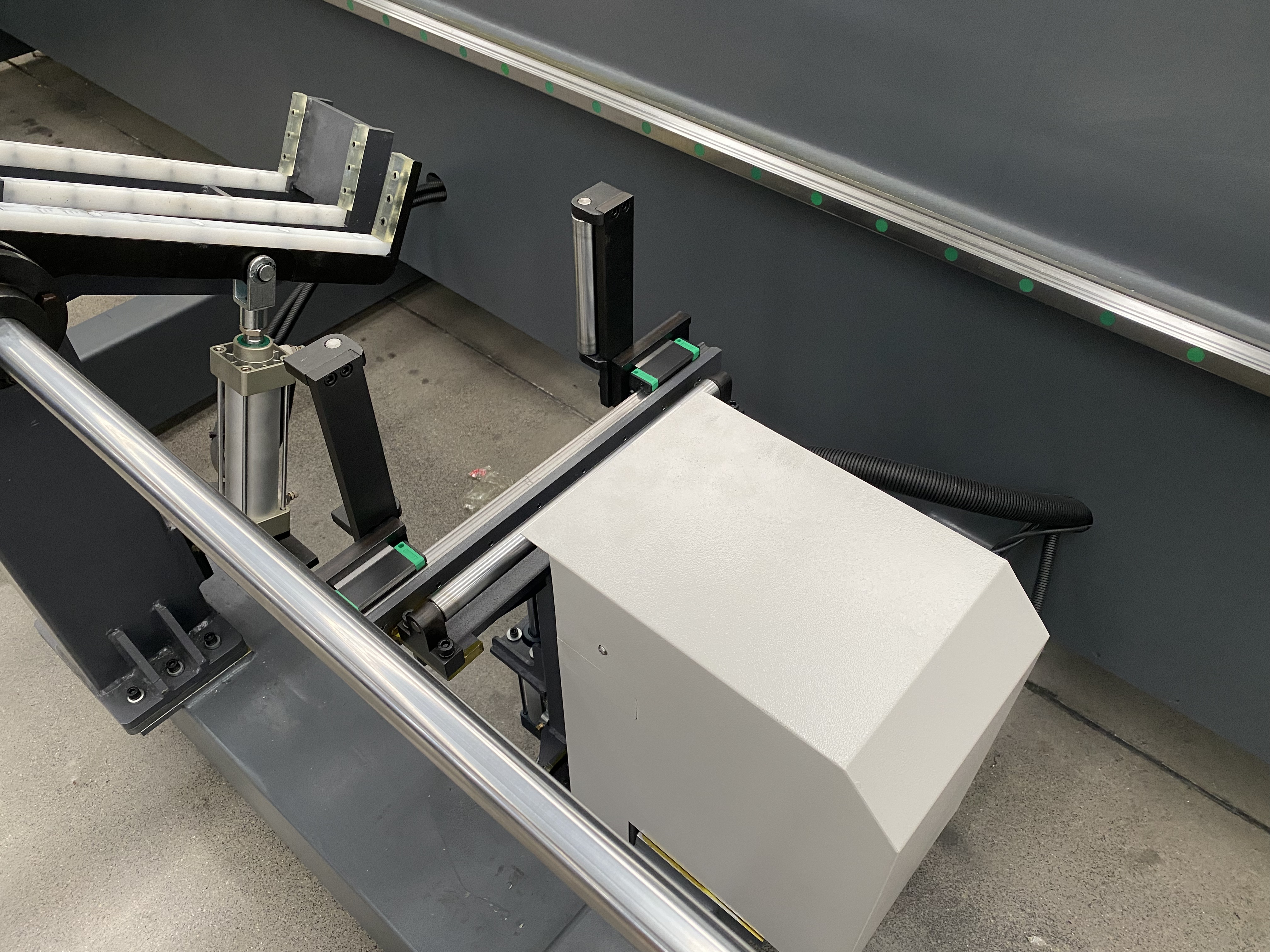

Independently Developed Servo-Following Support System

Highly versatile, capable of handling pipes of various sizes;

Robust load-bearing capacity and high efficiency.

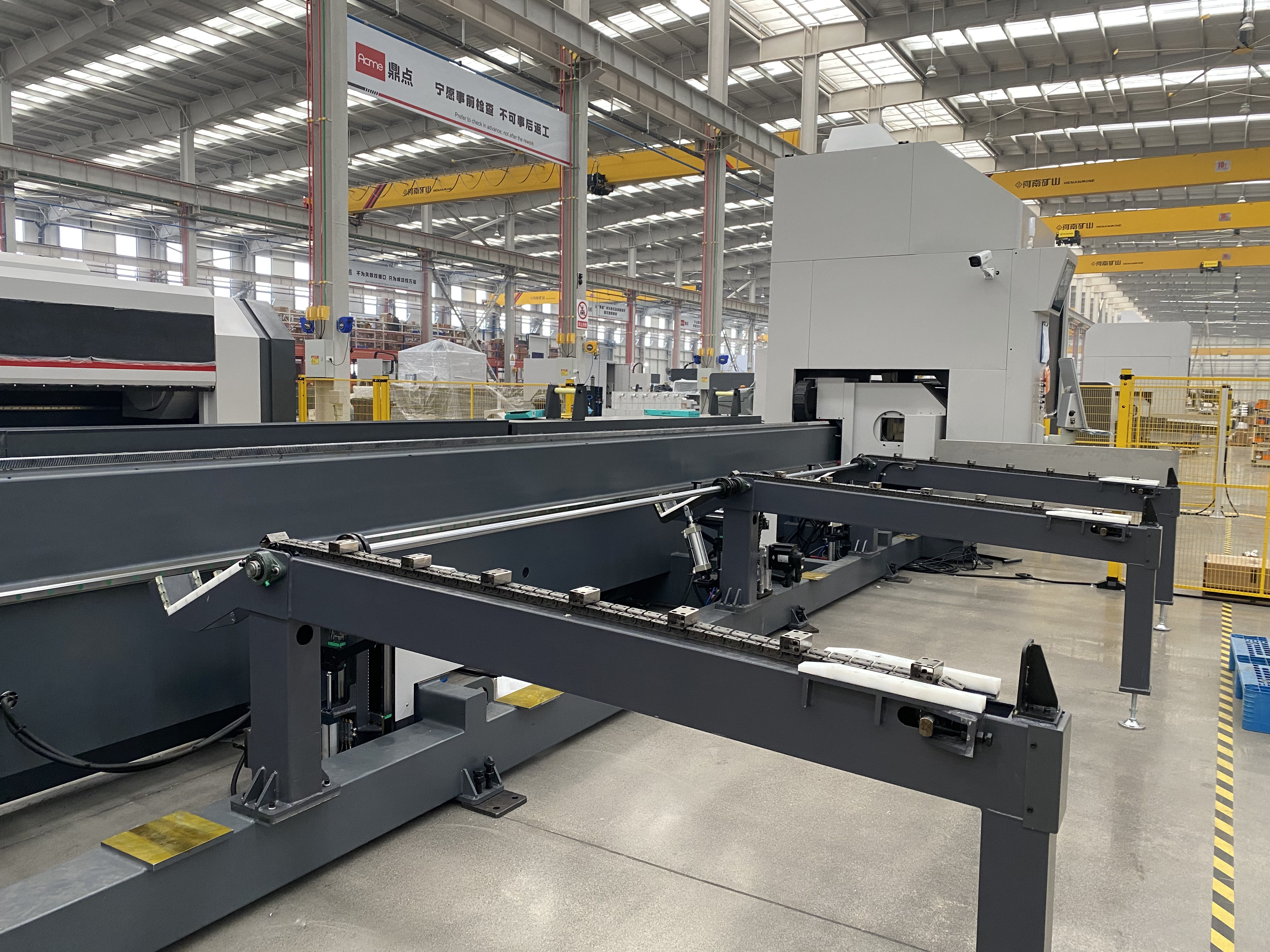

Semi Auto Loading Device( Fully Auto Optional)

Simultaneous cutting and loading to boost production efficiency

Compatible with various types of metal tubing

Main Specs

Model	LT-6012VFA	LT-6018VFA
Laser Power	1-6KW	1-6KW
Chuck Clamp Range	8-120mm	10-180mm
3D Bevel Cutting Function	Optional	Optional
Max Cutting Length	6300mm	6300mm
Tailing Length	65mm (0mm optional)	65mm (0mm optional)
Load Capacity	120kg	300kg
Tube Types	Square tubes, round tubes, rectangular tubes, oval tubes, flat oval tubes, channel steel, H-beams, angle iron, triangular tubes, etc.

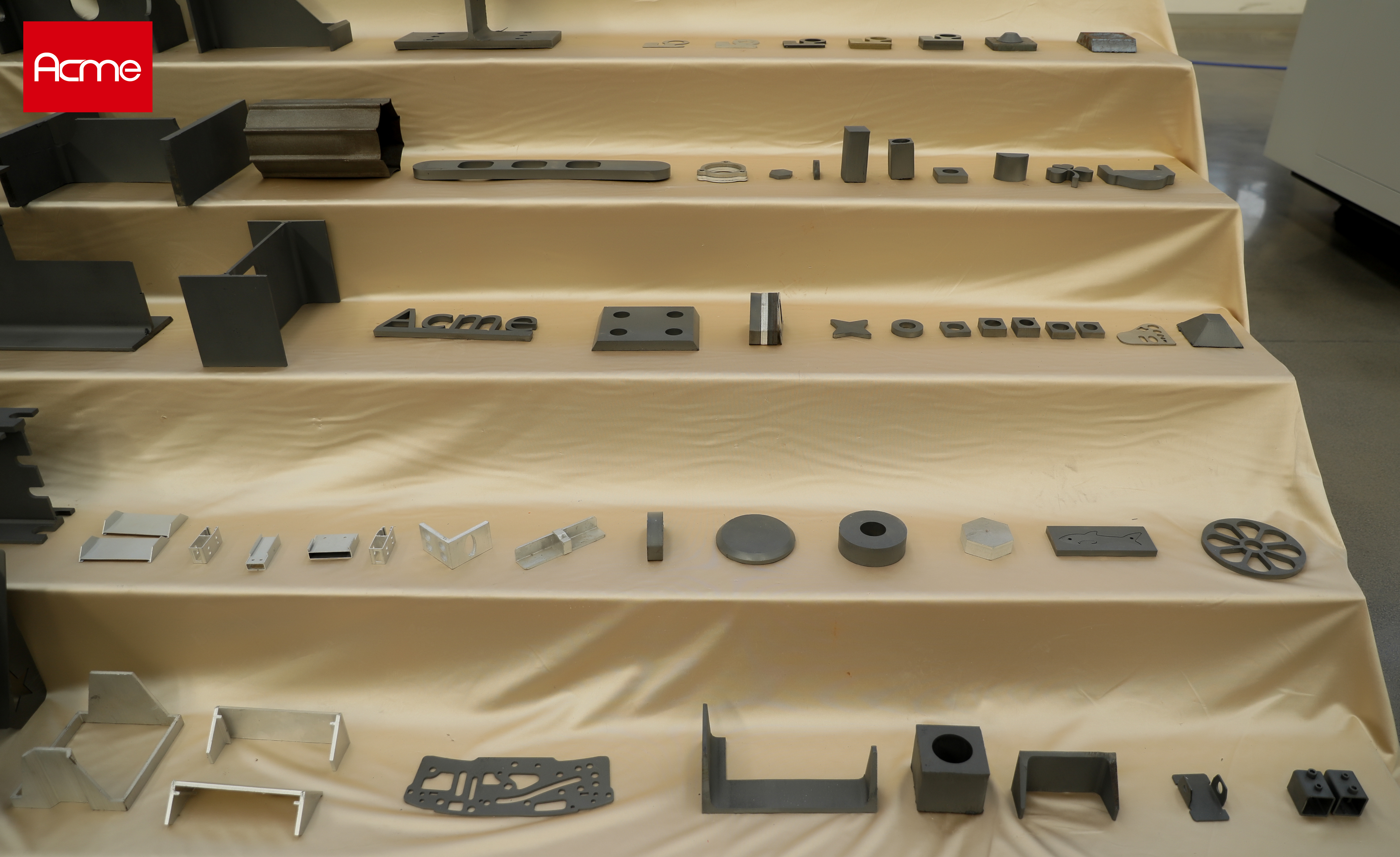

Cutting Samples

281A6208
