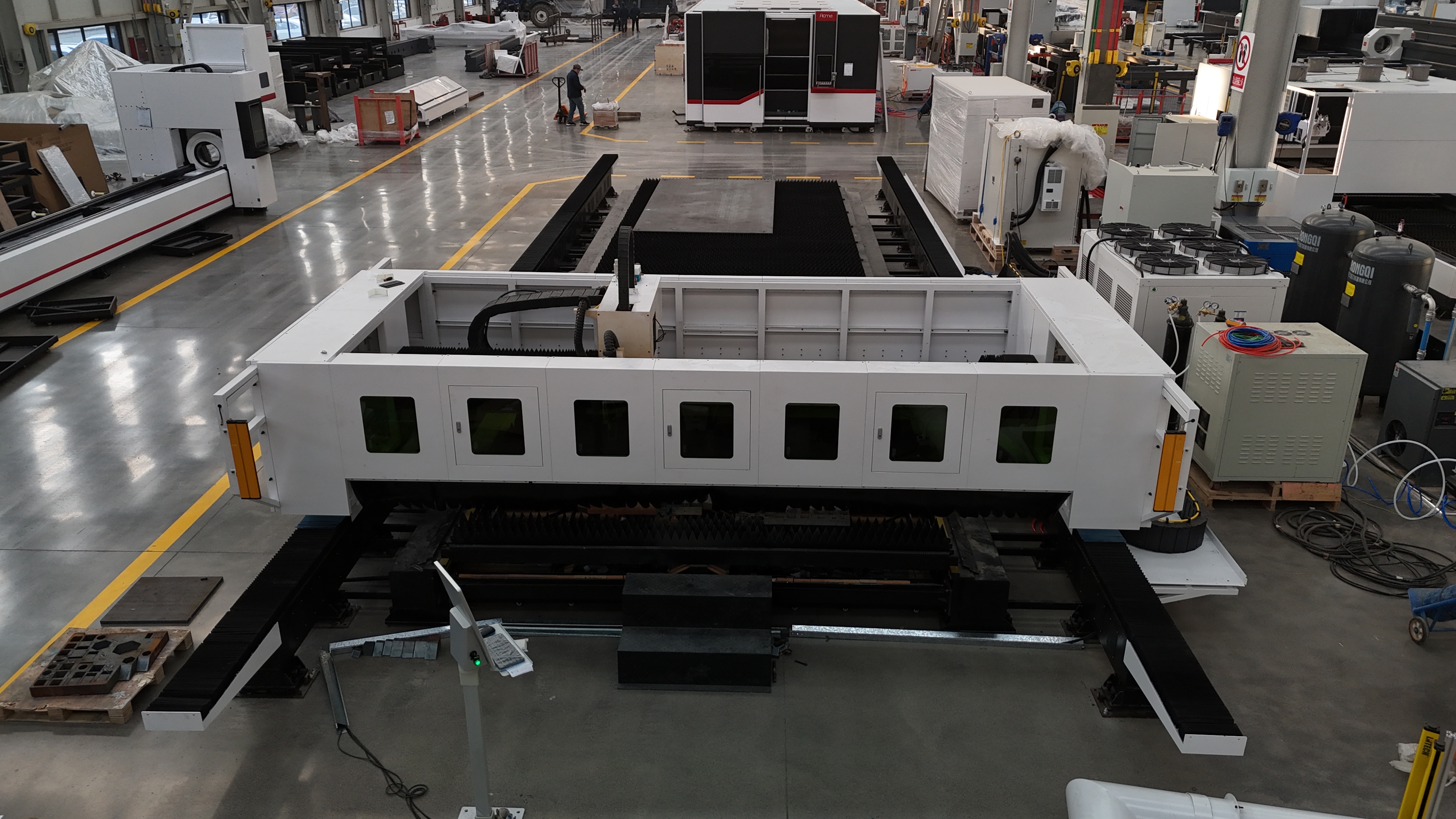

ACME LP-12030SK High Power Ground Rail Laser Bevel Cutting Machine
* Ultra-large working area, can be customized to meet specific requirements
* Optional bevel cutting function
* Ground rail design，minimizing the impact of heavy metal plates on the machine bed
* Cut carbon steel, stainless steel, aluminum, galvanized steel, brass, copper
| Quantity: | |
|---|---|
-
LP-12030SK
-
ACME Laser
Video Introduction

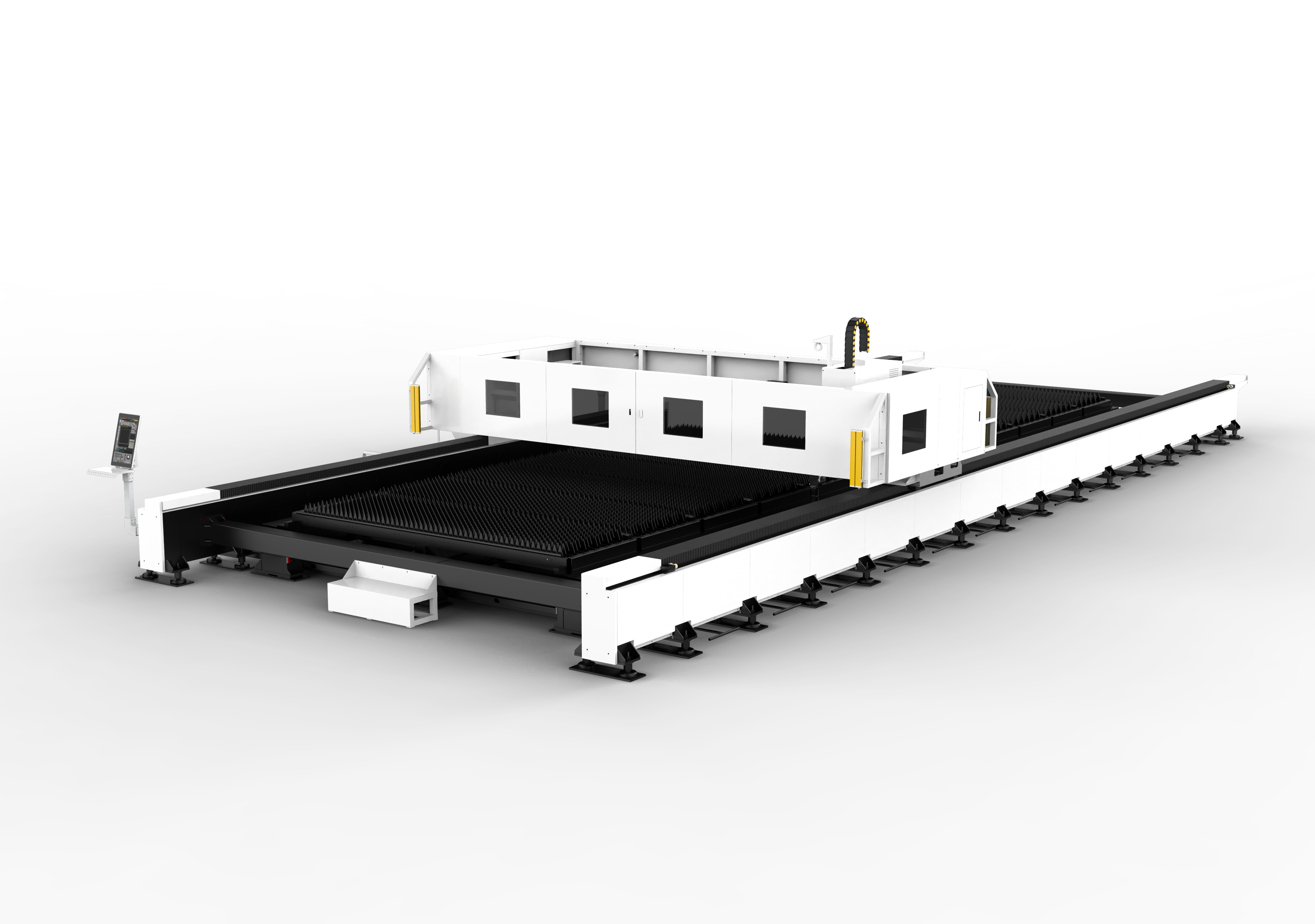

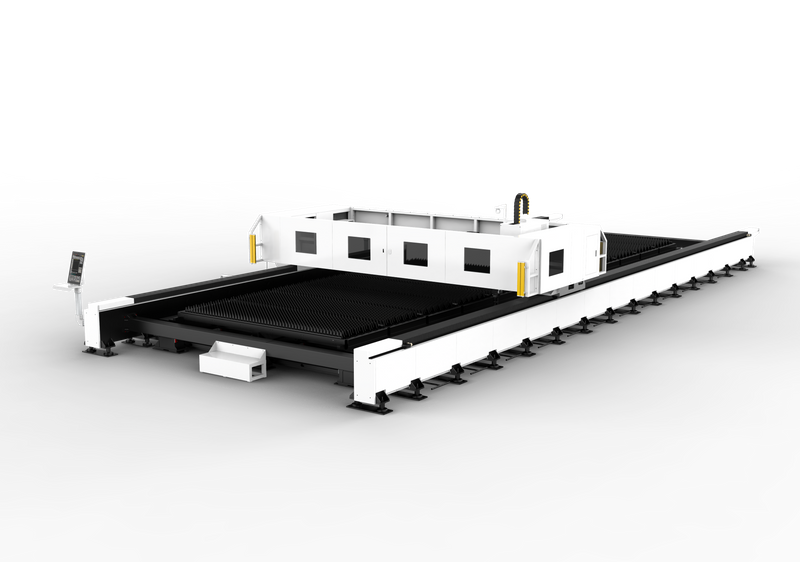

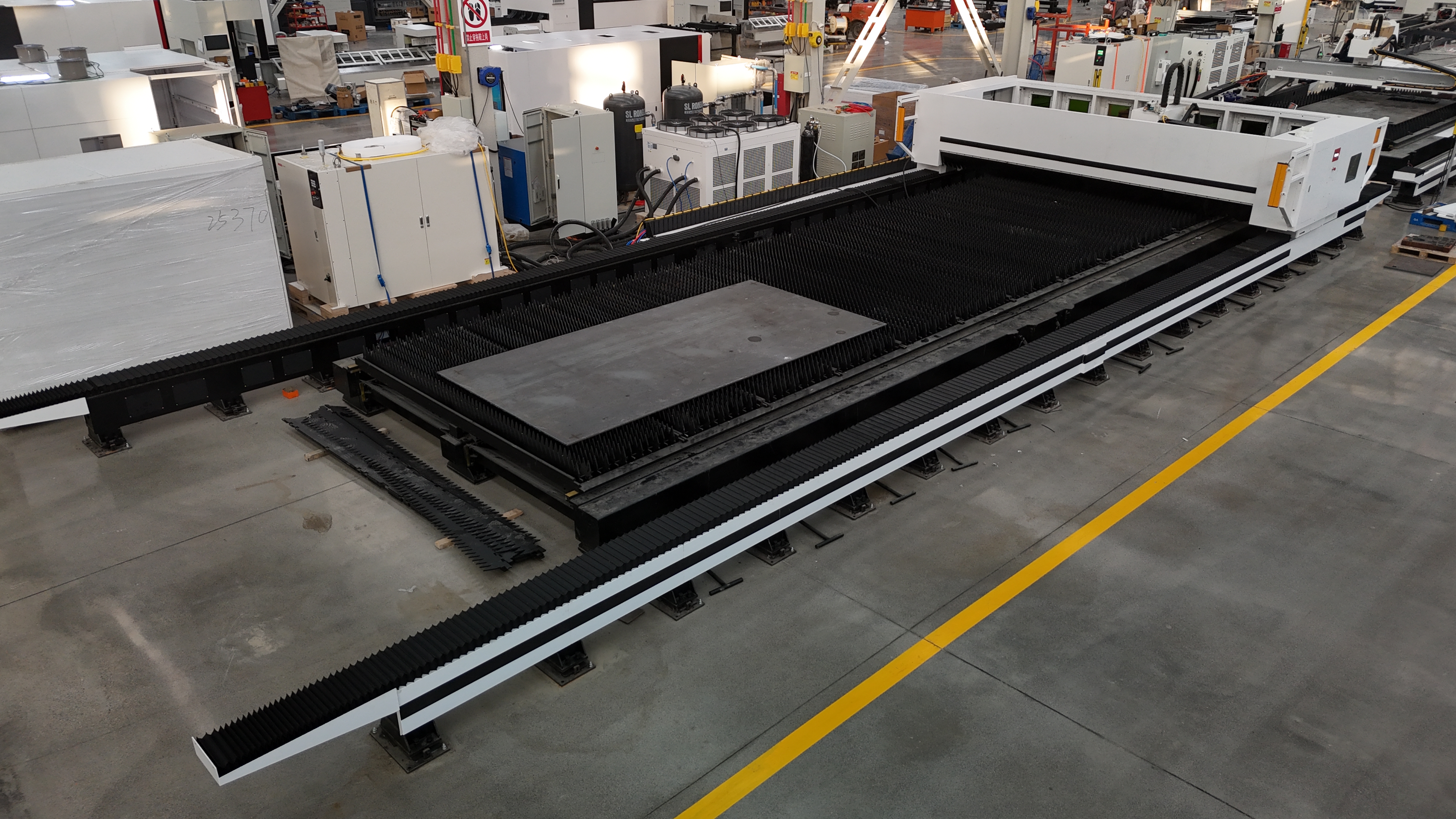

Machine Appearance

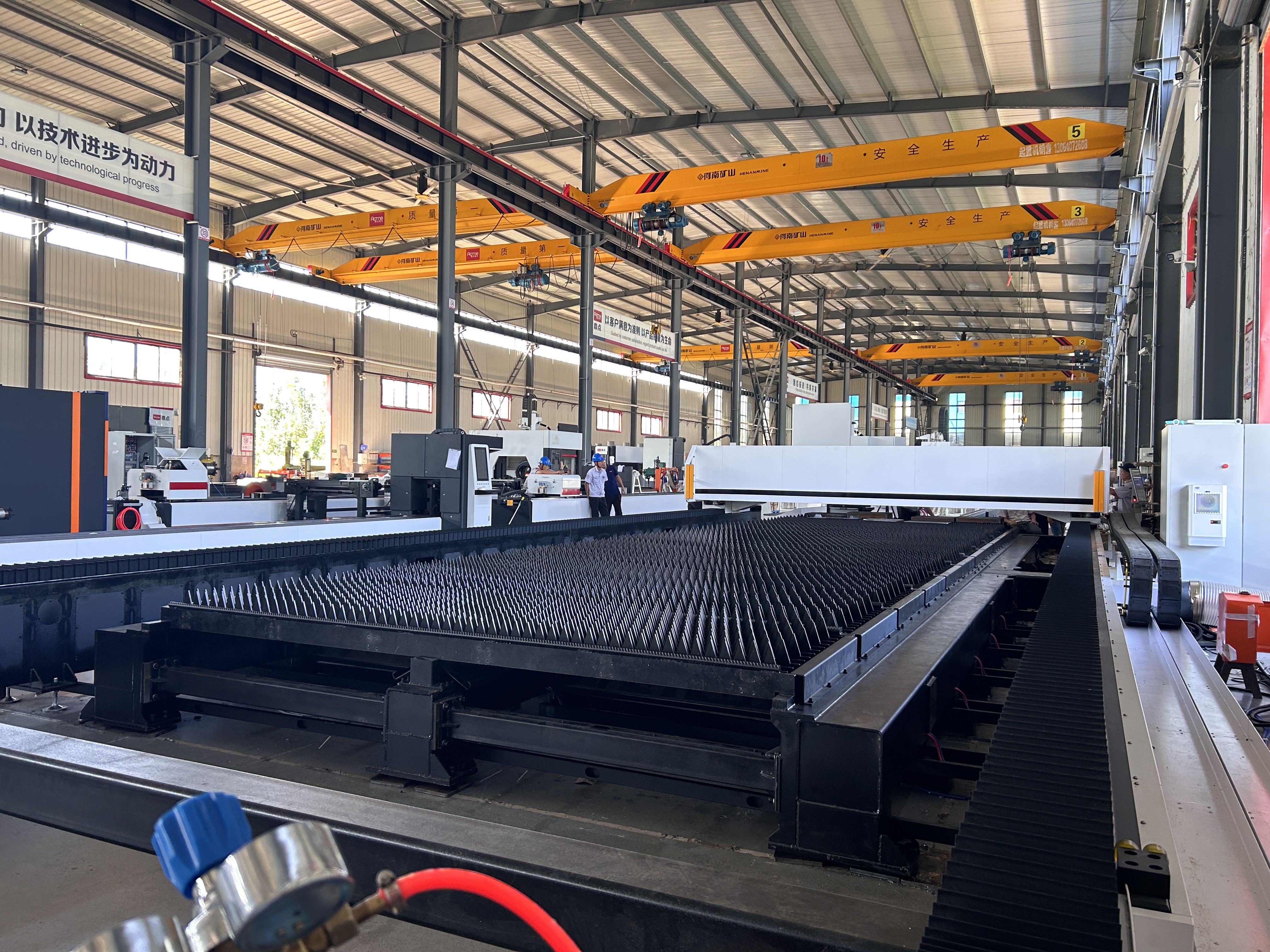

The cutting table is independent of the machine bed.
The weight of heavy plate will not be applied to the bed, thus preventing the bed from deforming due to long-term weight bearing.
Enclosed the gantry and cutting head, it can bring：
* Prevent dust and contamination, enhancing stability.
* Protect core transmission components, extending the machine's service life.
* Enhance operational safety.
* Minimize air turbulence, improves dynamic performance and precision.

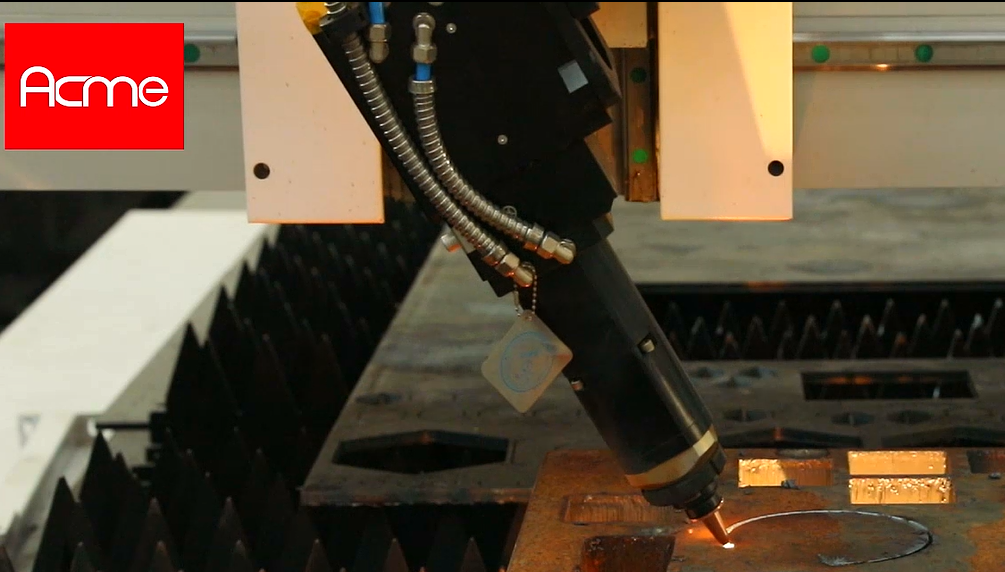

Supports the cutting of standard bevels (such as V Y, X, and K types) as well as special bevels.

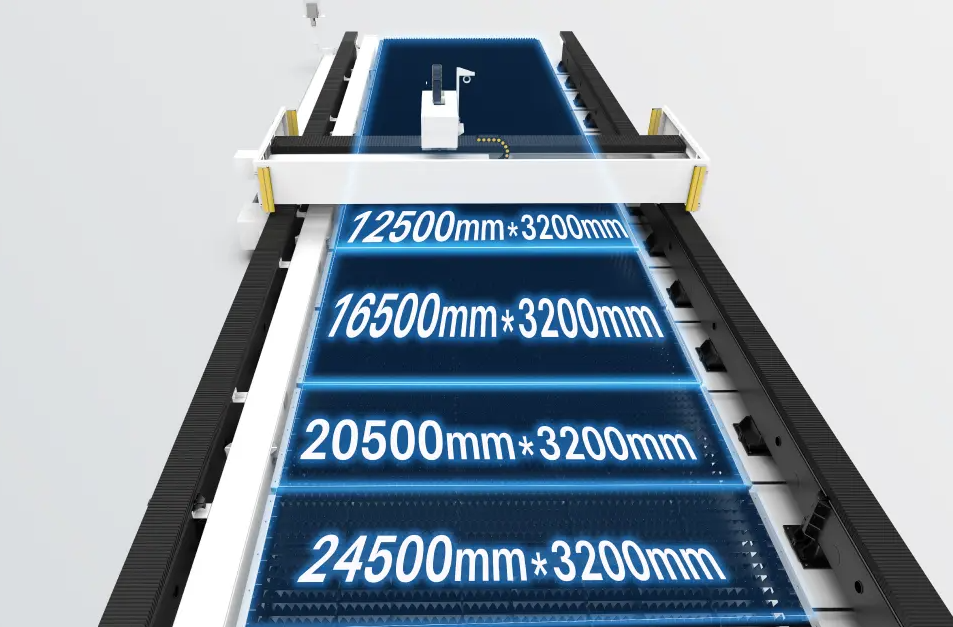

* Ultra-large format design. Based on a 12m machine bed, customized to specific requirements (e.g.,12+N meters).

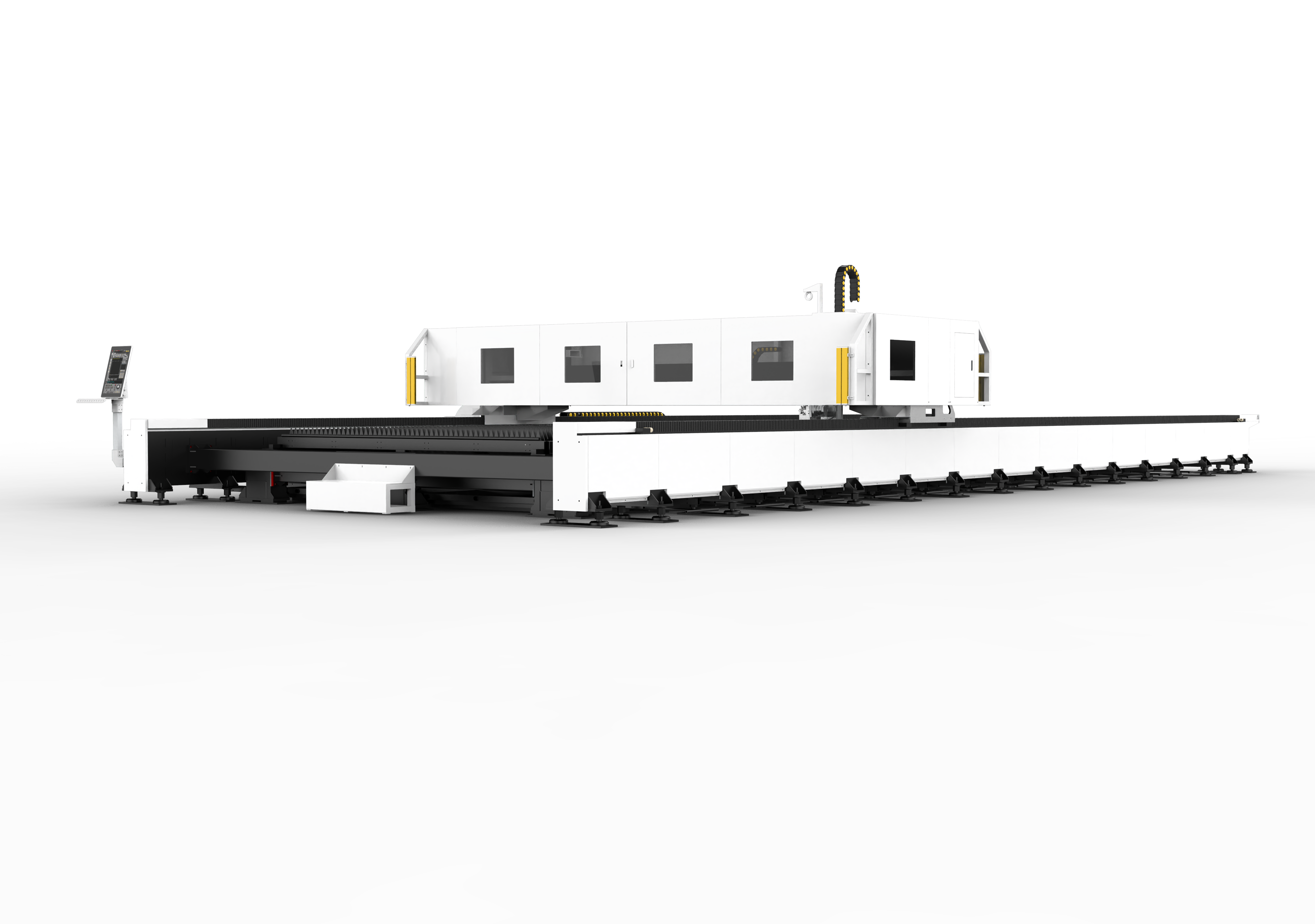

* Available in both single-table and dual-table configurations.
* Segmented bed structure ensures efficient fume extraction, safe and durable.
Main Specs
| Model | LP-12025S | LP-12030S | LP-14025S | LP-24030S |
| Machine Power | 6-120KW | 6-120KW | 6-120KW | 6-120KW |
| Cutting Area | 12000*2500mm | 12000*3000mm | 14000*2500mm | 24000*3000mm |
| 3D Bevel Cutting Function | Optional | Optional | Optional | Optional |
| Maximum Moving Speed | 80m/min | 80m/min | 80m/min | 80m/min |
| Maximum Acceleration | 0.3G | 0.3G | 0.3G | 0.3G |
| Plate material | carbon steel, stainless steel, aluminum, galvanized steel, brass, copper | |||

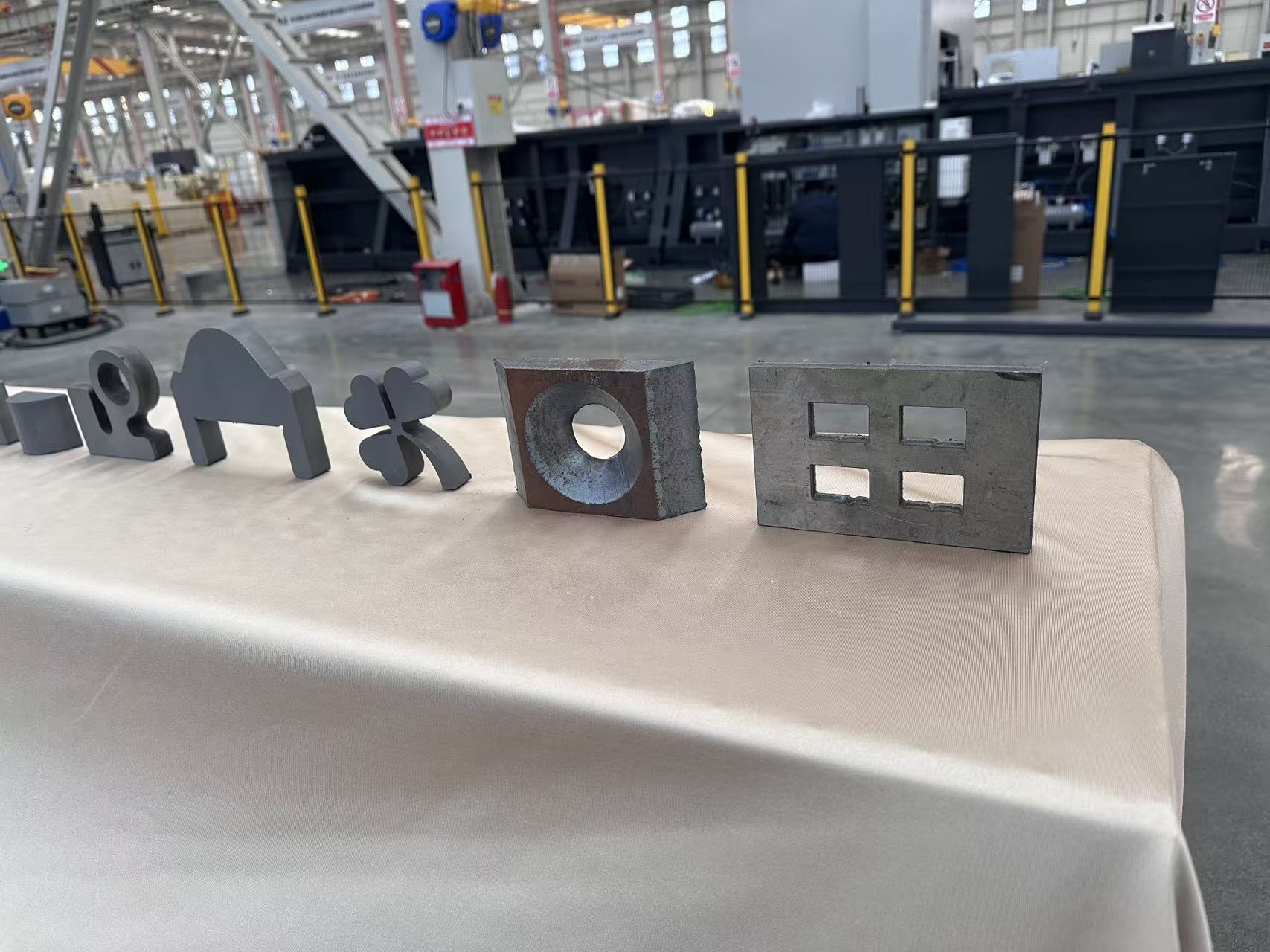

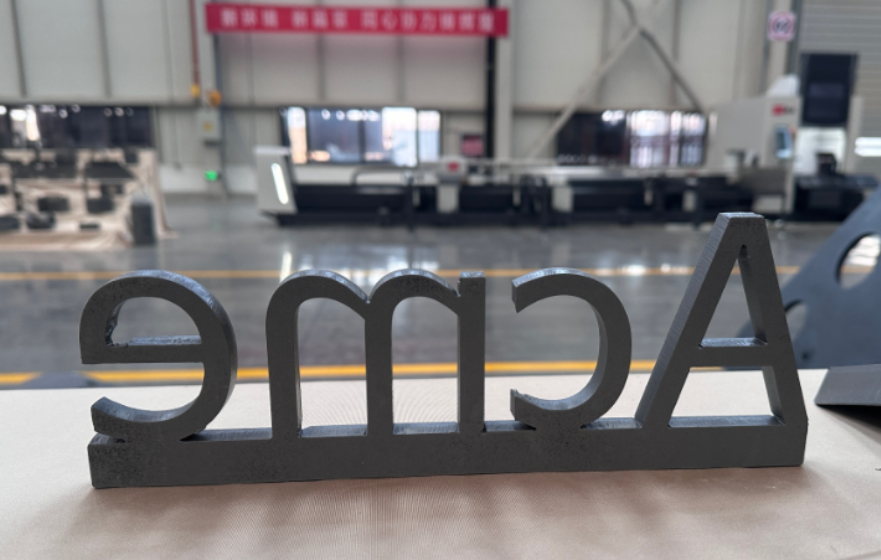

Cutting Samples
